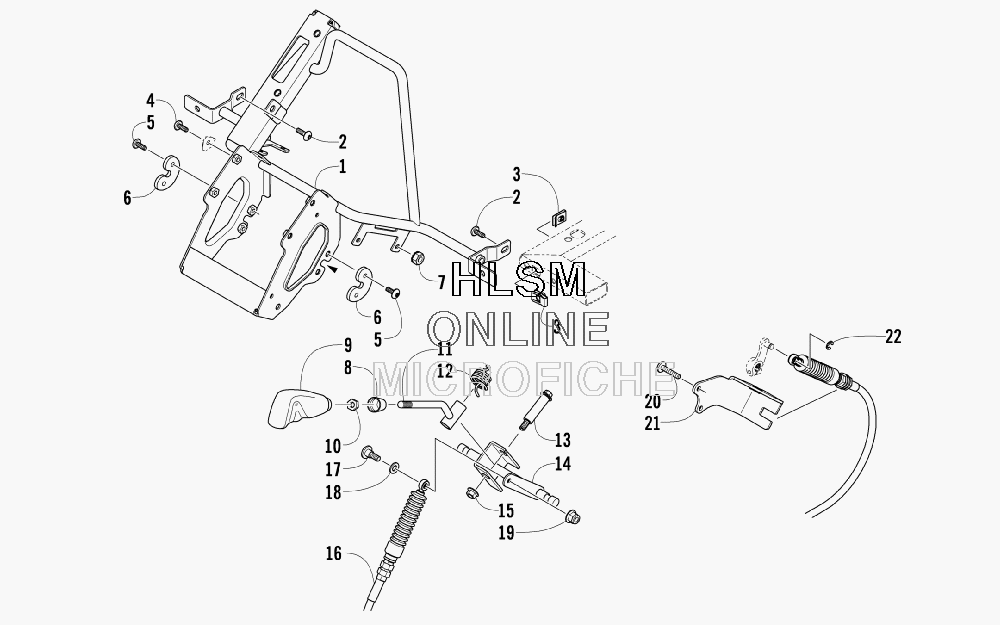

SHIFTER ASSEMBLY для Arctic Cat PROWLER XTZ - EURO (SUNSET ORANGE) [U2009P4W4EOSK] - 2009 года выпуска
-
№АртикулНазвание
-
11502-516 MOUNT, SHIFTMOUNT, SHIFT
-
28476-620 SCREW, MACHINESCREW, MACHINE
-
30423-577 CLIP, U-NUTCLIP, U-NUT
-
48477-616 SCREW, MACH-TSTRH M6X1.0X16 Z & BLKSCREW, MACH-TSTRH M6X1.0X16 Z & BLK
-
58476-616 SCREW, MACHINESCREW, MACHINE
-
61402-275 RETAINER, SHIFT LINKAGERETAINER, SHIFT LINKAGE
-
70623-038 NUT W/WASHERNUT W/WASHER
-
81402-854 END CAP, SHIFT KNOBEND CAP, SHIFT KNOB
-
91402-844 KNOB, SHIFTKNOB, SHIFT
-
100423-885 NUTNUT
-
111502-510 LEVER, SHIFTLEVER, SHIFT
-
121402-668 SPRING, SHIFTSPRING, SHIFT
-
130423-505 SCREW, SHOULDERSCREW, SHOULDER
-
141502-512 AXLE, SHIFTAXLE, SHIFT
-
158424-802 NUTNUT
-
160487-063 CABLE, SHIFTCABLE, SHIFT
-
170423-356 SCREW, SHOULDER-M6-1.0 X 22 RIE BLKSCREW, SHOULDER-M6-1.0 X 22 RIE BLK
-
180623-094 WASHERWASHER
-
198427-602 NUT, LOCKNUT, LOCK
-
208468-640 SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
-
212516-449 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
220124-057 E-RINGE-RING
