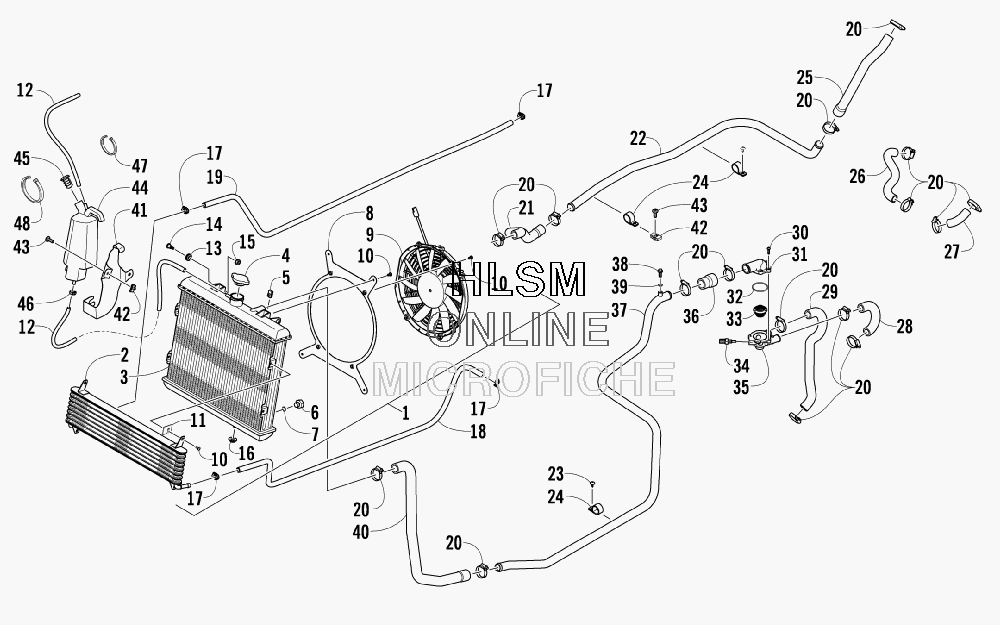

COOLING ASSEMBLY для Arctic Cat PROWLER XTZ (SUNSET ORANGE) [U2009P4W4EUSK] - 2009 года выпуска
-
№АртикулНазвание
-
10513-029 RADIATOR ASSEMBLY (INC. 2-13)RADIATOR ASSEMBLY (INC. 2-13)
-
20413-241 COOLER, OILCOOLER, OIL
-
30413-216 RADIATORRADIATOR
-
40413-002 CAP, RADIATORCAP, RADIATOR
-
51623-637 CLIP, U-NUTCLIP, U-NUT
-
60413-195 PLUG, DRAINPLUG, DRAIN
-
71602-213 O-RINGO-RING
-
80413-217 BRACKET, MOUNTING - FANBRACKET, MOUNTING - FAN
-
90413-123 FAN, COOLINGFAN, COOLING
-
108470-510 SCREW, MACHINESCREW, MACHINE
-
110413-254 SPACERSPACER
-
120610-011 HOSE - 25 FTHOSE - 25 FT
-
130423-030 GROMMETGROMMET
-
140423-484 BOLT, SHOULDER-9.6X9.55XM6 BLKBOLT, SHOULDER-9.6X9.55XM6 BLK
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160423-028 BUSHING, STEMBUSHING, STEM
-
170423-632 CLAMP, HOSECLAMP, HOSE
-
180410-183 HOSE, OICOOLER - INHOSE, OICOOLER - IN
-
190410-184 HOSE, OICOOLER - OUTHOSE, OICOOLER - OUT
-
200423-496 CLAMP, HOSECLAMP, HOSE
-
210410-094 HOSE, COOLANT - RADIATOR/COOLANT PIPEHOSE, COOLANT - RADIATOR/COOLANT PIPE
-
220410-177 PIPE, COOLANTPIPE, COOLANT
-
230623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
240423-594 CLAMP, ROUTINGCLAMP, ROUTING
-
250410-180 HOSE, COOLANT - COOLANT PIPE/WATER PUMPHOSE, COOLANT - COOLANT PIPE/WATER PUMP
-
260410-116 HOSE, COOLANT-#2 COLDHOSE, COOLANT-#2 COLD
-
270410-115 HOSE, COOLANT-#1 COLDHOSE, COOLANT-#1 COLD
-
280410-191 HOSE, COOLANT - CYLINDER/THERMOSTATHOSE, COOLANT - CYLINDER/THERMOSTAT
-
290410-190 HOSE, COOLANT - CYLINDER/THERMOSTATHOSE, COOLANT - CYLINDER/THERMOSTAT
-
308470-520 SCREW, MACHINESCREW, MACHINE
-
310808-092 COVER, THERMOSTATCOVER, THERMOSTAT
-
320830-173 O-RINGO-RING
-
330808-093 THERMOSTAT, 71 DEG (FINAL)THERMOSTAT, 71 DEG (FINAL)
-
340808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
350808-091 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
360410-189 HOSE, COOLANT - THERMOSTAT/COOLANT PIPEHOSE, COOLANT - THERMOSTAT/COOLANT PIPE
-
370410-178 PIPE, COOLANT W/BLEED VALVEPIPE, COOLANT W/BLEED VALVE
-
380423-984 SCREW, BLEEDSCREW, BLEED
-
390423-921 O-RINGO-RING
-
400410-092 HOSE, COOLANT - COOLANT PIPE/RADIATORHOSE, COOLANT - COOLANT PIPE/RADIATOR
-
410410-199 BRACKET, MOUNTING - OVERFLOW BOTTLEBRACKET, MOUNTING - OVERFLOW BOTTLE
-
420423-577 CLIP, U-NUTCLIP, U-NUT
-
438476-616 SCREW, MACHINESCREW, MACHINE
-
440413-086 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
450413-087 PLUGPLUG
-
460124-045 CLAMP, HOSECLAMP, HOSE
-
470123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
480623-316 TIE, CABLE - 14 IN.TIE, CABLE - 14 IN.
