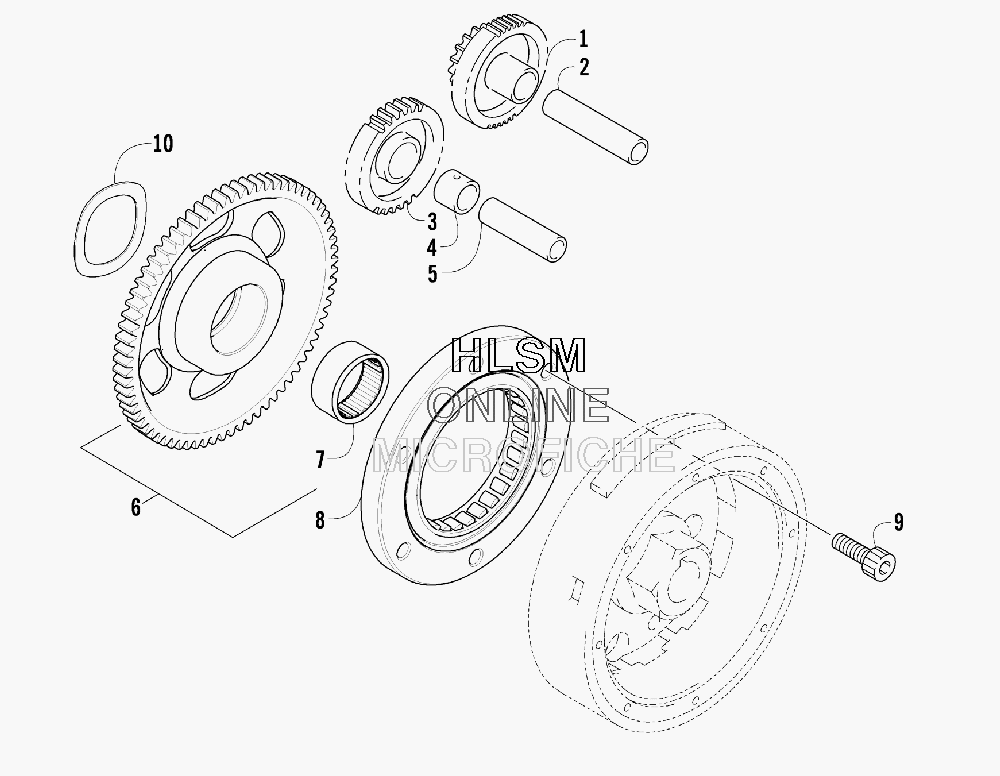

STARTER CLUTCH ASSEMBLY для Arctic Cat PROWLER XTZ (SUNSET ORANGE) [U2009P4W4EUSK] - 2009 года выпуска
-
№АртикулНазвание
-
10815-026 GEAR, STARTER IDLER - NO. 1GEAR, STARTER IDLER - NO. 1
-
20829-031 SHAFT, STARTER GEARSHAFT, STARTER GEAR
-
30815-002 GEAR, STARTER IDLER - NO. 2GEAR, STARTER IDLER - NO. 2
-
40815-003 SPACER, STARTER IDLER GEAR NO. 2SPACER, STARTER IDLER GEAR NO. 2
-
50829-032 SHAFT, STARTER GEARSHAFT, STARTER GEAR
-
60815-004 GEAR, STARTER CLUTCH (INC. 7)GEAR, STARTER CLUTCH (INC. 7)
-
70832-079 L BEARINGL BEARING
-
80802-035 CLUTCH, STARTERCLUTCH, STARTER
-
90826-069 SCREW, MACHINESCREW, MACHINE
-
100828-113 WASHER, WAVEWASHER, WAVE
