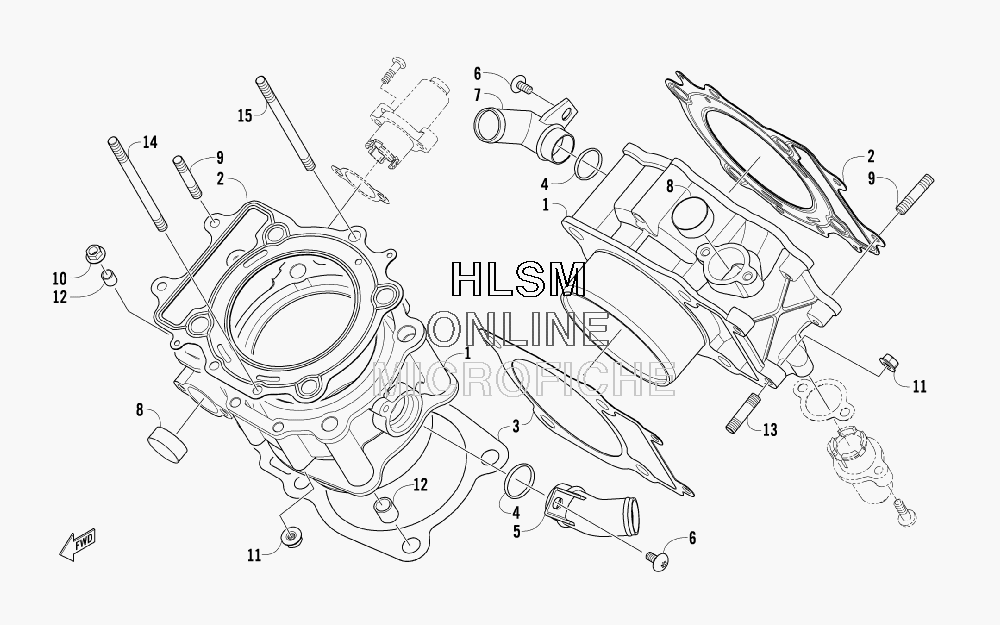

CYLINDER ASSEMBLY для Arctic Cat PROWLER XTZ (SUNSET ORANGE) [U2009P4W4EUSK] - 2009 года выпуска
-
№АртикулНазвание
-
10804-031 CYLINDERCYLINDER
-
20830-126 GASKET, HEADGASKET, HEAD
-
30830-127 GASKET, BASEGASKET, BASE
-
40830-007 O-RINGO-RING
-
50804-046 UNION, COOLANT HOSEUNION, COOLANT HOSE
-
68468-612 SCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X12 CL8.8 BLK
-
70804-030 UNION, COOLANT HOSEUNION, COOLANT HOSE
-
80804-037 PLUG, CYLINDERPLUG, CYLINDER
-
90827-002 STUD, M6 X 1 X 38STUD, M6 X 1 X 38
-
108424-804 NUT, HEX-FLG M8X1.25 CL8 RIE SILNUT, HEX-FLG M8X1.25 CL8 RIE SIL
-
118424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SILNUT, HEX-FLG M6X1.0 CL8 RIE SIL
-
120829-002 PIN, DOWELPIN, DOWEL
-
130827-018 STUD, M6 X 1 X 32STUD, M6 X 1 X 32
-
140827-030 STUD, M6 X 1 X 70STUD, M6 X 1 X 70
-
150827-031 STUD, M8 X 1.25 X 80STUD, M8 X 1.25 X 80
