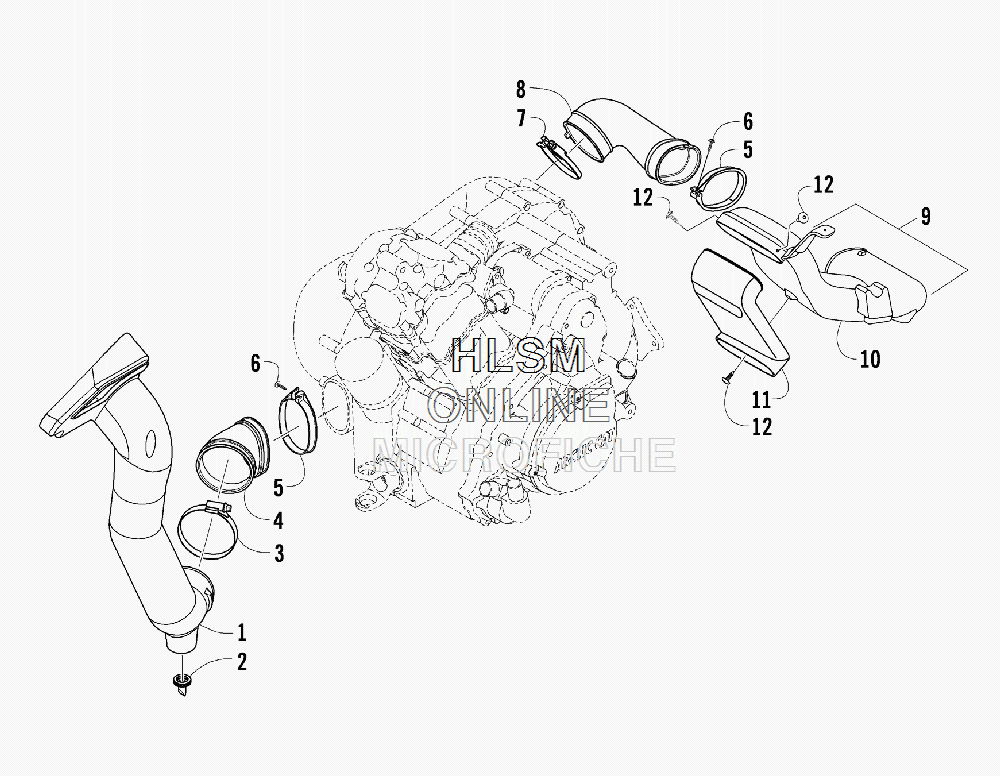

CASE/BELT COOLING ASSEMBLY для Arctic Cat 650 H1 (BLACK) [A2010ICS4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10413-115 DUCT, AIR INTAKE - FRONT - LOWERDUCT, AIR INTAKE - FRONT - LOWER
-
20470-442 VALVE, DRAINVALVE, DRAIN
-
30423-578 CLAMPCLAMP
-
40413-160 BOOT, DUCT - AIR INTAKE - FRONTBOOT, DUCT - AIR INTAKE - FRONT
-
50423-550 CLAMPCLAMP
-
60423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70423-730 CLAMPCLAMP
-
80413-206 BOOT, DUCT - AIR OUT - REARBOOT, DUCT - AIR OUT - REAR
-
90470-824 DUCT, AIR OUT - REAR (INC. 10-11 AND THREE NO. 12)DUCT, AIR OUT - REAR (INC. 10-11 AND THREE NO. 12)
-
100470-825 ...DUCT...DUCT
-
110470-778 ...DUCT...DUCT
-
120623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
