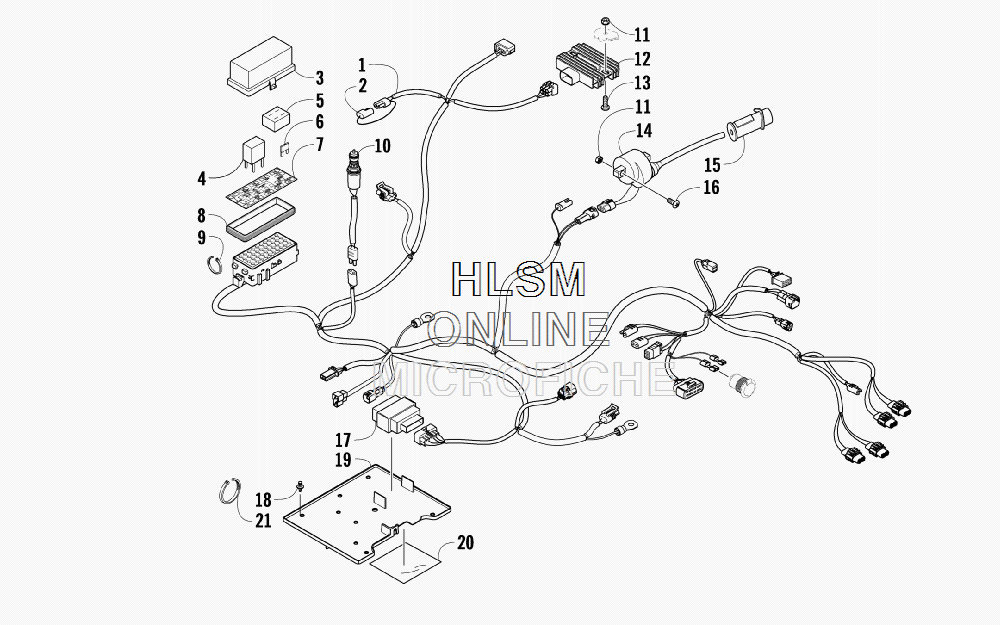

WIRING HARNESS ASSEMBLY для Arctic Cat 650 H1 (BLACK) [A2010ICS4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10486-345 HARNESS, MAIN (INC. 2-8)HARNESS, MAIN (INC. 2-8)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
50430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
60430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
60430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
60430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
72411-078 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
80430-086 ...SEAL...SEAL
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
100409-089 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120824-037 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
138476-625 SCREW, MACHINESCREW, MACHINE
-
140824-036 COIL, IGNITIONCOIL, IGNITION
-
150824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
168476-620 SCREW, MACHINESCREW, MACHINE
-
170824-038 CDICDI
-
180623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
191406-787 TRAY, ELECTRICALTRAY, ELECTRICAL
-
200412-291 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
210123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
