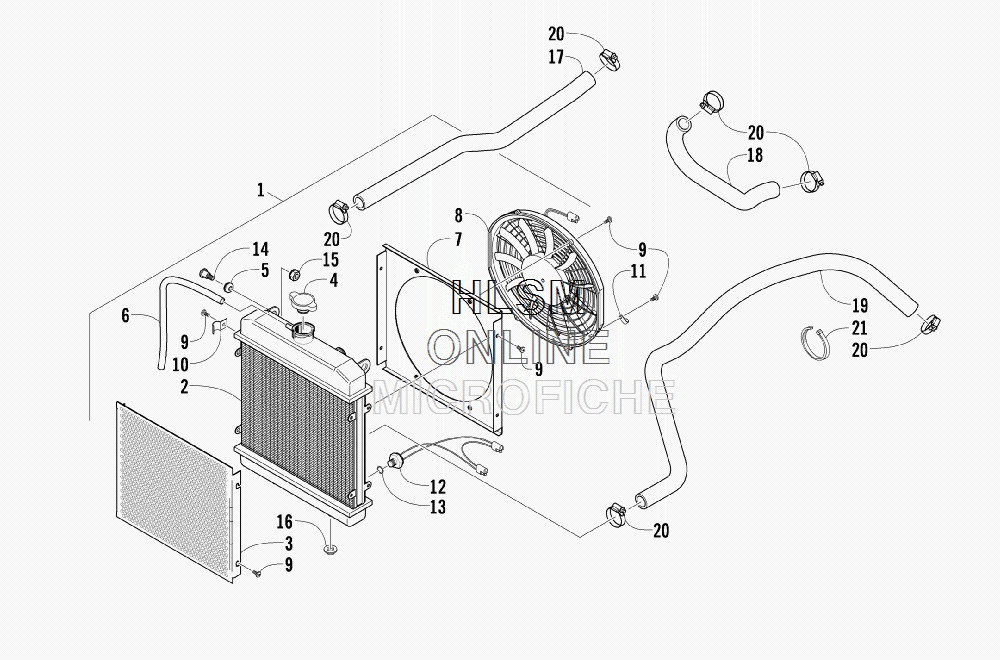

COOLING ASSEMBLY для Arctic Cat 650 H1 (BLACK) [A2010ICS4BUSP] - 2010 года выпуска
-
№АртикулНазвание
-
10413-172 RADIATOR ASSEMBLY (INC. 2-13)RADIATOR ASSEMBLY (INC. 2-13)
-
20413-184 ...RADIATOR...RADIATOR
-
30413-007 ...SCREEN...SCREEN
-
40413-002 ...CAP...CAP
-
50423-030 ...GROMMET...GROMMET
-
60610-016 ...HOSE - 25 FT...HOSE - 25 FT
-
60610-015 ...HOSE - 100 FT...HOSE - 100 FT
-
70413-046 ...SHROUD, FAN...SHROUD, FAN
-
80413-123 ...FAN, COOLING...FAN, COOLING
-
98475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
100423-351 ...CLAMP, WIRE...CLAMP, WIRE
-
110123-397 ...CLAMP, CABLE...CLAMP, CABLE
-
120413-168 ...SENSOR, ENGINE COOLANT TEMPERATURE...SENSOR, ENGINE COOLANT TEMPERATURE
-
131602-213 ...O-RING...O-RING
-
140423-484 SCREW, SHOULDERSCREW, SHOULDER
-
150623-038 NUT W/WASHERNUT W/WASHER
-
160423-028 BUSHING, STEMBUSHING, STEM
-
170410-002 HOSE, COOLANT - UPPERHOSE, COOLANT - UPPER
-
180410-022 HOSE, COOLANT - CROSSOVERHOSE, COOLANT - CROSSOVER
-
190410-041 HOSE, COOLANT - LOWERHOSE, COOLANT - LOWER
-
200423-496 CLAMP, HOSECLAMP, HOSE
-
210123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
