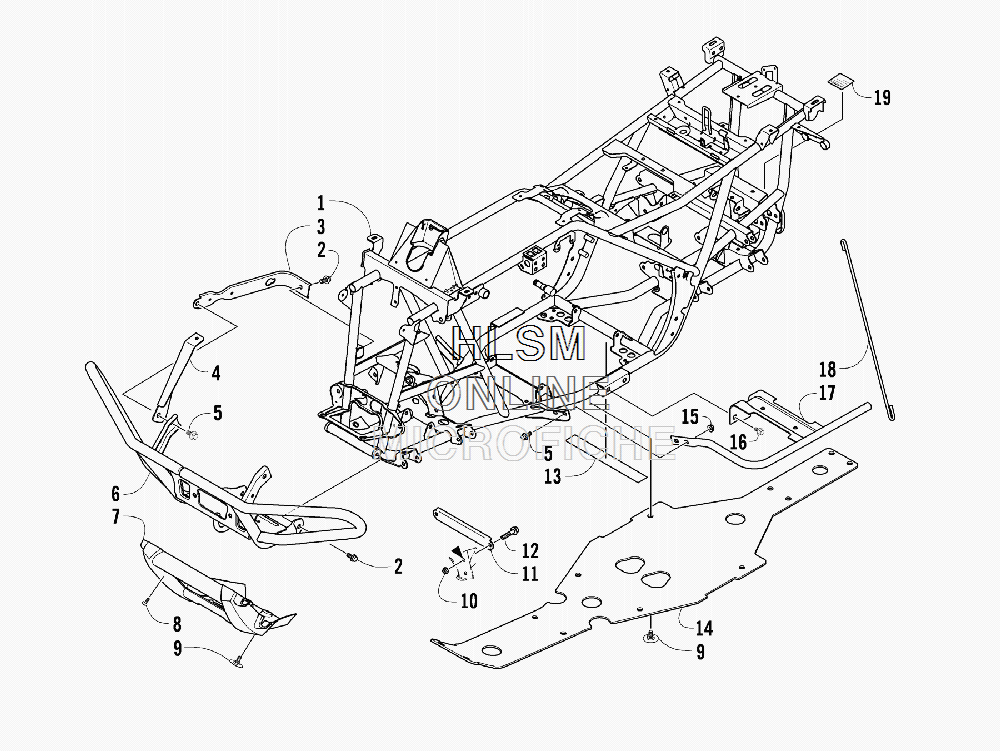

FRAME AND RELATED PARTS для Arctic Cat MUDPRO 650 H1 (CAT GREEN) [A2010IFS4BUSZ] - 2010 года выпуска
-
№АртикулНазвание
-
12506-541 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
41506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
61506-855 BUMPER, FRONTBUMPER, FRONT
-
71406-360 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
80423-419 SCREW, MACHINESCREW, MACHINE
-
90423-101 SCREW, SHOULDERSCREW, SHOULDER
-
100423-744 NUT, LOCKNUT, LOCK
-
111506-429 BRACE, A-ARMBRACE, A-ARM
-
128409-025 SCREW, CAPSCREW, CAP
-
130406-289 PAD, FRAMEPAD, FRAME
-
141406-030 PANEL, BELLYPANEL, BELLY
-
158424-802 NUTNUT
-
168409-016 SCREW, CAPSCREW, CAP
-
171506-380 FOOTREST - RIGHTFOOTREST - RIGHT
-
171506-379 FOOTREST - LEFTFOOTREST - LEFT
-
182506-423 ROD, SUPPORTROD, SUPPORT
-
191411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
