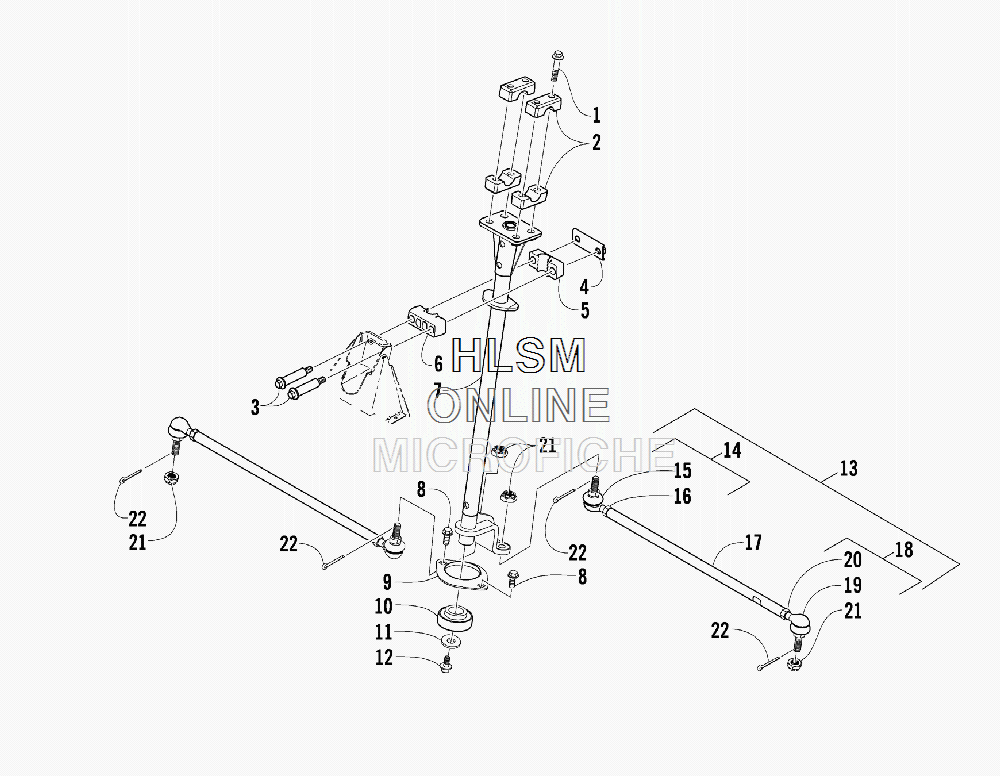

STEERING ASSEMBLY для Arctic Cat MUDPRO 650 H1 (CAT GREEN) [A2010IFS4BUSZ] - 2010 года выпуска

№

Артикул

Название
1

8408-860 SCREW, CAP

SCREW, CAP

210 ₽
2

0405-035 CAP, STEERING ADJUSTER

CAP, STEERING ADJUSTER

2 700 ₽
3

0423-505 SCREW, SHOULDER

SCREW, SHOULDER

270 ₽
4

0505-484 CAP, HOUSING

CAP, HOUSING

5 400 ₽
5

0405-138 HOUSING, LOWER

HOUSING, LOWER

1 660 ₽
6

0405-139 HOUSING, UPPER

HOUSING, UPPER

980 ₽
7

0505-451 POST, STEERING

POST, STEERING

22 460 ₽
8

8408-816 SCREW, CAP

SCREW, CAP

110 ₽
9

0602-233 FLANGE, BEARING

FLANGE, BEARING

650 ₽
10

0405-052 BEARING W/INVERTED OIL SEAL

BEARING W/INVERTED OIL SEAL

7 270 ₽
11

0423-073 WASHER

WASHER

230 ₽
12

8409-020 SCREW, CAP

SCREW, CAP

190 ₽
13

0505-499 TIE ROD - ASSEMBLY (INC. 14-20)

TIE ROD - ASSEMBLY (INC. 14-20)

34 520 ₽
14

0505-511 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15-16)

...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15-16)

8 110 ₽
16

0423-013 ......NUT - LEFT-HAND THREAD

......NUT - LEFT-HAND THREAD

170 ₽
17

0405-281 ...TIE ROD

...TIE ROD

6 030 ₽
18

0505-510 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 19-20)

...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 19-20)

8 110 ₽
20

8420-002 ......NUT - RIGHT-HAND THREAD

......NUT - RIGHT-HAND THREAD

110 ₽
21

0423-157 NUT, LOCK

NUT, LOCK

150 ₽
22

0623-175 PIN, COTTER

PIN, COTTER

60 ₽
