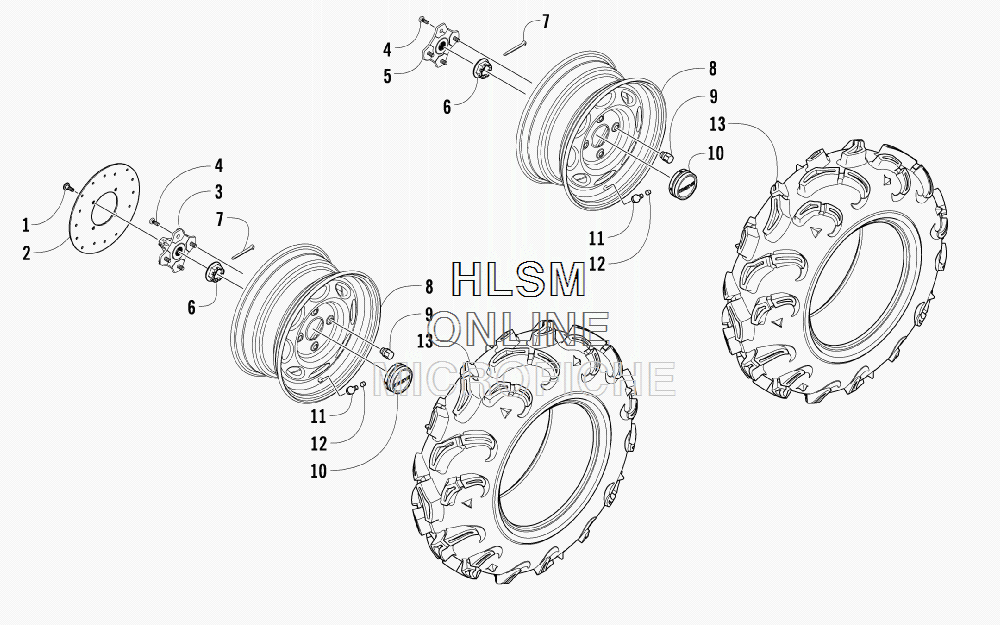

WHEEL AND TIRE ASSEMBLY для Arctic Cat MUDPRO 650 H1 (CAT GREEN) [A2010IFS4BUSZ] - 2010 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21402-455 DISC, BRAKEDISC, BRAKE
-
33323-100 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD...STUD
-
53323-100 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
53323-113 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-807 WHEEL - BLACKWHEEL - BLACK
-
90423-408 NUT, LUGNUT, LUG
-
100403-181 CAP, WHEELCAP, WHEEL
-
110402-064 STEM, VALVE (INC. 12)STEM, VALVE (INC. 12)
-
120402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
131402-855 TIRETIRE
