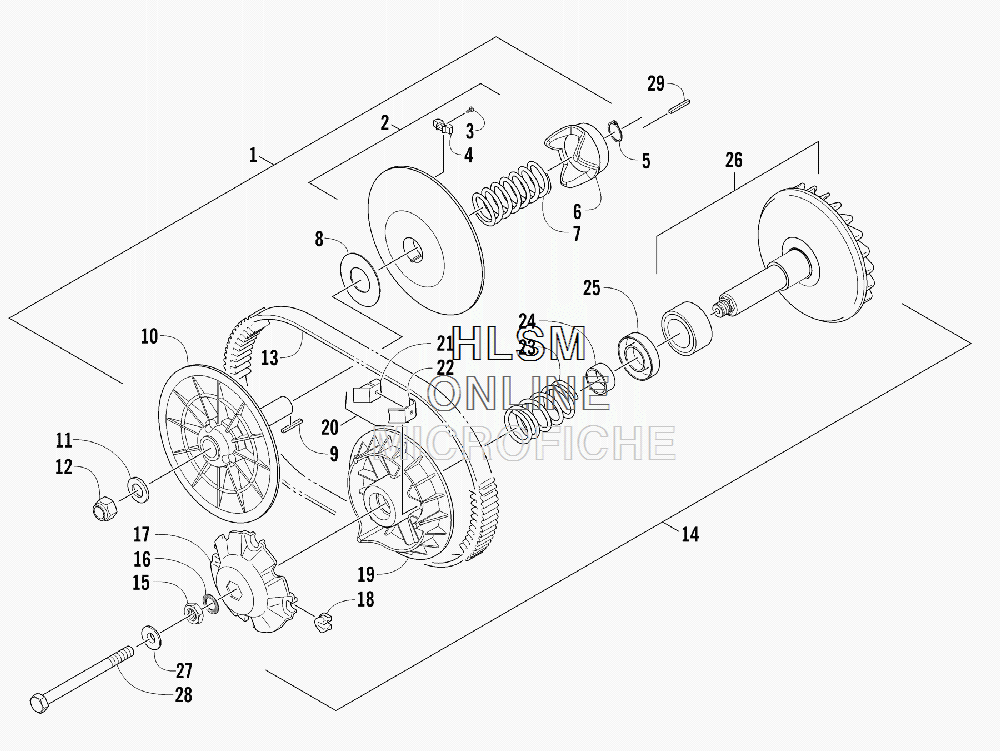

CLUTCH ASSEMBLIES для Arctic Cat SUPER DUTY DIESEL INTERNATIONAL BLACK [A2010TBT4DOSP] - 2010 года выпуска
-
№АртикулНазвание
-
11502-073 PULLEY, DRIVEN - ASSEMBLY (INC. 2-10)PULLEY, DRIVEN - ASSEMBLY (INC. 2-10)
-
21502-208 ...FACE, DRIVEN - MOVABLE (INC. 3-4)...FACE, DRIVEN - MOVABLE (INC. 3-4)
-
30423-752 ......SCREW, MACHINE......SCREW, MACHINE
-
40823-176 ......SHOE, CAM......SHOE, CAM
-
50423-751 ...RING, RETAINING...RING, RETAINING
-
61402-630 ...CAM...CAM
-
70423-750 ...SPRING...SPRING
-
80423-749 ...SHIM...SHIM
-
91402-631 ...KEY...KEY
-
101402-629 ...FACE, DRIVEN - FIXED...FACE, DRIVEN - FIXED
-
110828-020 WASHERWASHER
-
120827-013 NUT, DRIVEN PULLEYNUT, DRIVEN PULLEY
-
131402-564 BELT, DRIVEBELT, DRIVE
-
141502-072 PULLEY, DRIVE - ASSEMBLY (INC. 15-26)PULLEY, DRIVE - ASSEMBLY (INC. 15-26)
-
150423-747 ...NUT...NUT
-
160423-746 ...WASHER, LOCK...WASHER, LOCK
-
171502-207 ...PLATE, MOVABLE DRIVE FACE (INC. 18)...PLATE, MOVABLE DRIVE FACE (INC. 18)
-
181402-628 ......DAMPER, MOVABLE DRIVE FACE......DAMPER, MOVABLE DRIVE FACE
-
191402-625 ...FACE, DRIVE - MOVABLE...FACE, DRIVE - MOVABLE
-
201502-205 ...BLOCK, WEIGHT - ASSEMBLY (INC. 21-22)...BLOCK, WEIGHT - ASSEMBLY (INC. 21-22)
-
211402-627 ......WEIGHT......WEIGHT
-
221402-626 ......BLOCK, WEIGHT......BLOCK, WEIGHT
-
230423-745 ...SPRING...SPRING
-
241402-624 ...SPACER...SPACER
-
251402-623 ...SEAT, SPRING...SEAT, SPRING
-
261502-206 ...FACE, DRIVE - FIXED...FACE, DRIVE - FIXED
-
270423-733 WASHERWASHER
-
280423-673 SCREW, CAPSCREW, CAP
-
290423-718 KEYKEY
