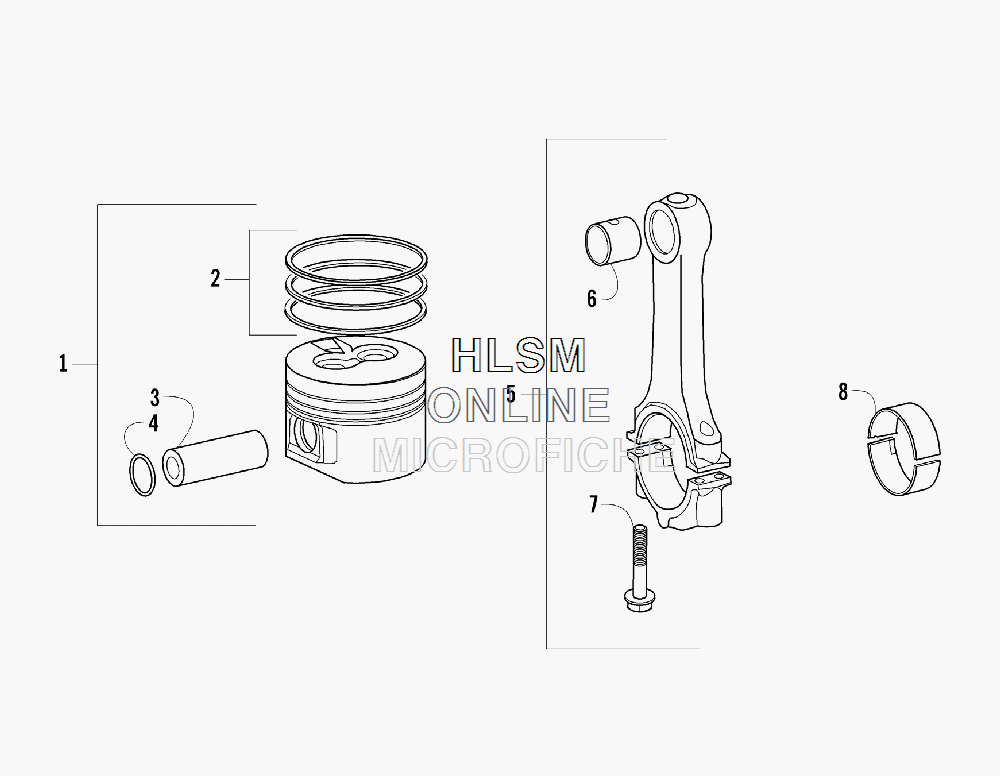

PISTON SET AND CONNECTING ROD ASSEMBLY для Arctic Cat SUPER DUTY DIESEL INTERNATIONAL BLACK [A2010TBT4DOSP] - 2010 года выпуска

№

Артикул

Название
1

3206-026 PISTON - SET (INC. 2-4)

PISTON - SET (INC. 2-4)

60 520 ₽
1

3206-027 PISTON - SET (+0.50 MM)

PISTON - SET (+0.50 MM)

60 520 ₽
1

3206-028 PISTON - SET (+1.00 MM)

PISTON - SET (+1.00 MM)

60 520 ₽
2

3206-023 ...RING - SET

...RING - SET

37 640 ₽
2

3206-024 ...RING - SET (+0.50 MM)

...RING - SET (+0.50 MM)

29 320 ₽
2

3206-025 ...RING - SET (+1.00 MM)

...RING - SET (+1.00 MM)

29 320 ₽
3

3206-030 ...PISTON PIN

...PISTON PIN

9 560 ₽
4

3206-031 ...CIRCLIP

...CIRCLIP

440 ₽
5

3206-035 CONNECTING ROD (INC. 6-7)

CONNECTING ROD (INC. 6-7)

85 690 ₽
6

3206-029 ...BUSHING

...BUSHING

4 570 ₽
7

3206-036 ...SCREW, CAP

...SCREW, CAP

1 870 ₽
8

3206-032 BUSHING

BUSHING

13 510 ₽
8

3206-033 BUSHING (-0.25 MM)

BUSHING (-0.25 MM)

9 560 ₽
8

3206-034 BUSHING (-0.50 MM)

BUSHING (-0.50 MM)

17 670 ₽
