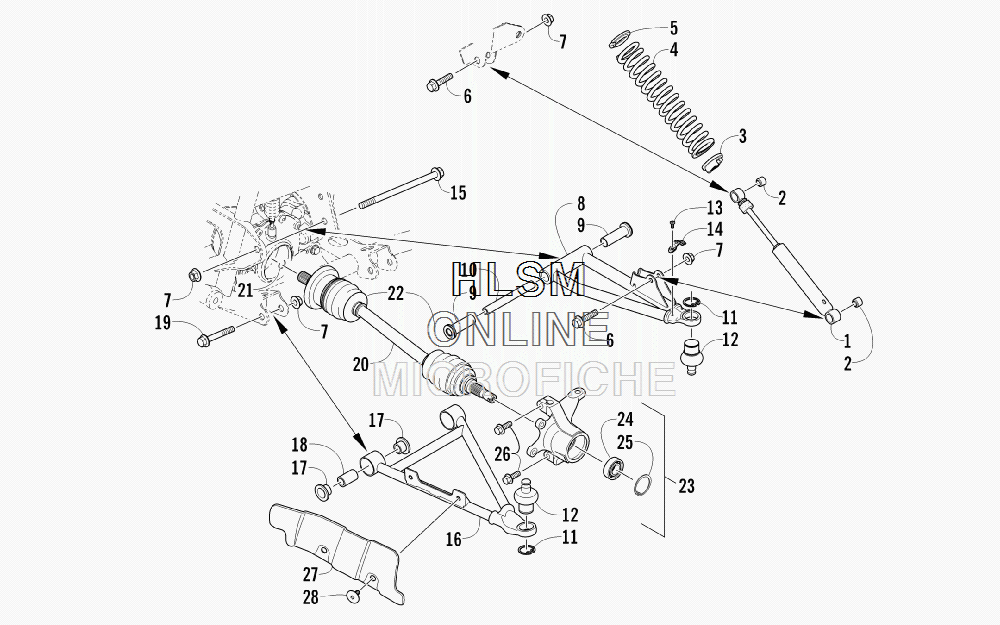

FRONT SUSPENSION ASSEMBLY для Arctic Cat SUPER DUTY DIESEL INTERNATIONAL BLACK [A2010TBT4DOSP] - 2010 года выпуска
-
№АртикулНазвание
-
10403-176 SHOCK ABSORBER (INC. 2)SHOCK ABSORBER (INC. 2)
-
20403-182 ...BUSHING...BUSHING
-
30403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
40403-174 SPRING, SUSPENSION - PLATINUMSPRING, SUSPENSION - PLATINUM
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
68409-040 SCREW, CAPSCREW, CAP
-
70423-744 NUT, LOCKNUT, LOCK
-
80503-420 A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12)A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12)
-
80503-421 A-ARM, UPPER LEFT - PLATINUM (INC. 9-12)A-ARM, UPPER LEFT - PLATINUM (INC. 9-12)
-
90403-207 ...BUSHING...BUSHING
-
100403-080 ...AXLE...AXLE
-
110423-009 ...RING, RETAINING...RING, RETAINING
-
120405-115 ...BALL JOINT...BALL JOINT
-
130423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141502-594 CLAMP, ROUTINGCLAMP, ROUTING
-
150423-334 SCREW, CAPSCREW, CAP
-
160503-380 A-ARM, LOWER RIGHT - PLATINUM (INC. 17-18 AND TWO NO. 11-12)A-ARM, LOWER RIGHT - PLATINUM (INC. 17-18 AND TWO NO. 11-12)
-
160503-381 A-ARM, LOWER LEFT - PLATINUM (INC. 17-18 AND TWO NO. 11-12)A-ARM, LOWER LEFT - PLATINUM (INC. 17-18 AND TWO NO. 11-12)
-
170403-208 ...BUSHING...BUSHING
-
180403-214 ...AXLE...AXLE
-
198409-075 SCREW, CAPSCREW, CAP
-
201502-344 AXLE, DRIVE - RIGHT (INC. 21-22)AXLE, DRIVE - RIGHT (INC. 21-22)
-
201502-345 AXLE, DRIVE - LEFT (INC. 21-22)AXLE, DRIVE - LEFT (INC. 21-22)
-
210423-844 ...CLIP, RETAINING...CLIP, RETAINING
-
221436-207 ...REPAIR KIT, BOOT...REPAIR KIT, BOOT
-
230505-576 KNUCKLE - ASSEMBLY - RIGHT (INC. 24-25)KNUCKLE - ASSEMBLY - RIGHT (INC. 24-25)
-
230505-577 KNUCKLE - ASSEMBLY - LEFT (INC. 24-25)KNUCKLE - ASSEMBLY - LEFT (INC. 24-25)
-
241402-809 ...BEARING...BEARING
-
250423-423 ...RING, RETAINING...RING, RETAINING
-
268409-030 SCREW, CAPSCREW, CAP
-
271406-034 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
271406-035 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
280423-545 SCREW, SHOULDERSCREW, SHOULDER
