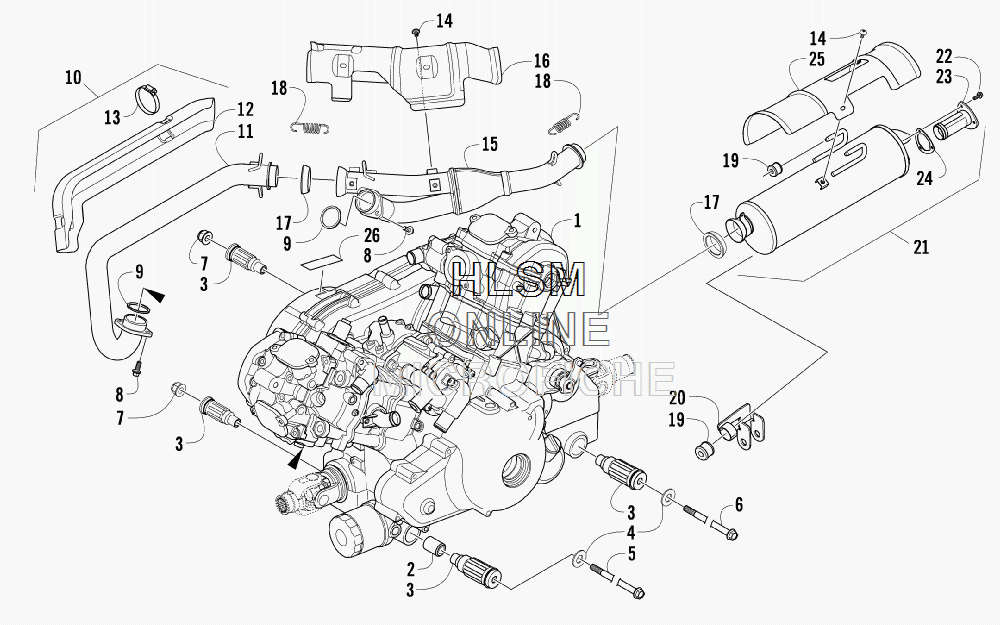

ENGINE AND EXHAUST для Arctic Cat 1000 XT 4x4 [A2013AGW1PUSW] - 2013 года выпуска
-
№АртикулНазвание
-
10800-097 ENGINE, A950H (INC. 2-3)ENGINE, A950H (INC. 2-3)
-
20801-128 ...SPACER, ENGINE MOUNT...SPACER, ENGINE MOUNT
-
30801-091 ...MOUNT, ENGINE...MOUNT, ENGINE
-
40423-426 WASHERWASHER
-
50423-734 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
78428-002 NUT, LOCKNUT, LOCK
-
88408-820 SCREW, CAPSCREW, CAP
-
90412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
100512-433 PIPE, EXHAUST - ASSEMBLY (INC. 11-13)PIPE, EXHAUST - ASSEMBLY (INC. 11-13)
-
110512-349 ...PIPE, EXHAUST...PIPE, EXHAUST
-
120412-400 ...SHIELD, EXHAUST PIPE...SHIELD, EXHAUST PIPE
-
130423-317 ...CLAMP...CLAMP
-
148477-610 SCREW, MACHINESCREW, MACHINE
-
150512-477 PIPE, EXHAUST - REARPIPE, EXHAUST - REAR
-
160412-403 SHIELD, EXHAUST PIPE - REARSHIELD, EXHAUST PIPE - REAR
-
170412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
180612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
190412-577 BUSHINGBUSHING
-
202506-631 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
210512-355 MUFFLER - ASSEMBLY (INC. 22-24)MUFFLER - ASSEMBLY (INC. 22-24)
-
228408-616 ...SCREW, CAP...SCREW, CAP
-
230512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
240412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
250412-373 COVER, MUFFLERCOVER, MUFFLER
-
260411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
