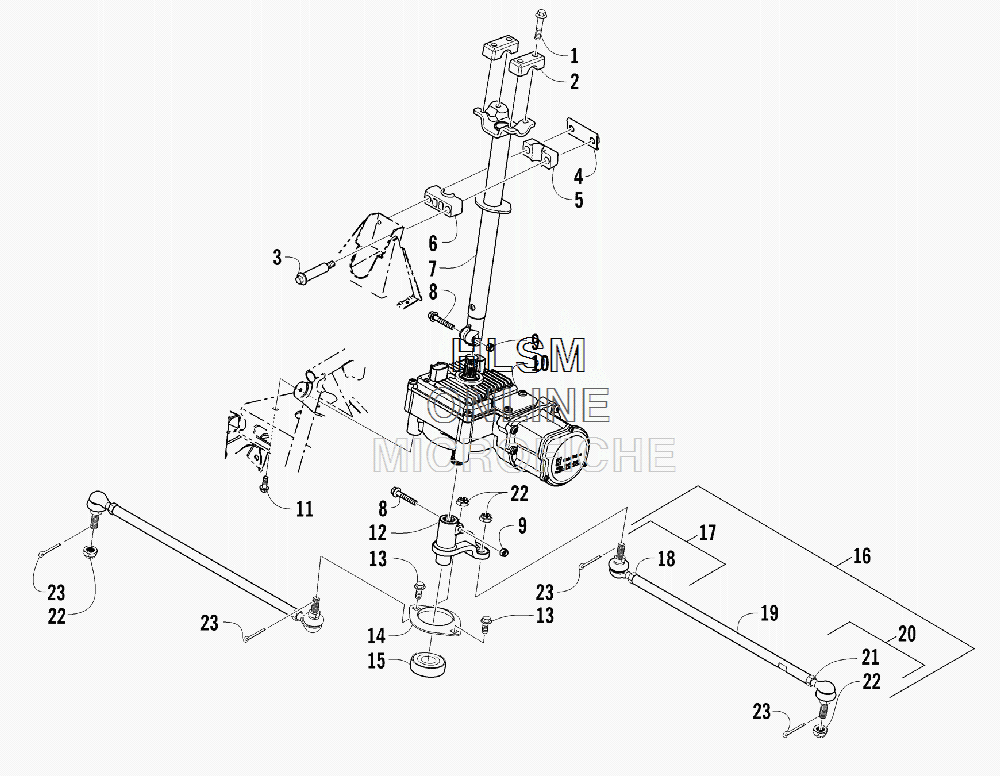

STEERING ASSEMBLY для Arctic Cat 1000 XT 4x4 [A2013AGW1PUSW] - 2013 года выпуска
-
№АртикулНазвание
-
18408-835 SCREW, CAPSCREW, CAP
-
20405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
30423-505 SCREW, SHOULDERSCREW, SHOULDER
-
40505-484 CAP, HOUSINGCAP, HOUSING
-
50405-260 HOUSING, UPPERHOUSING, UPPER
-
60405-259 HOUSING, LOWERHOUSING, LOWER
-
70505-642 POST, STEERINGPOST, STEERING
-
88020-045 SCREW, CAPSCREW, CAP
-
98040-366 NUT, LOCKNUT, LOCK
-
100505-806 ASSEMBLY, ELECTRONIC POWER STEERINGASSEMBLY, ELECTRONIC POWER STEERING
-
118409-020 SCREW, CAPSCREW, CAP
-
120505-664 ARM, STEERINGARM, STEERING
-
138408-816 SCREW, CAPSCREW, CAP
-
140602-233 FLANGE, BEARINGFLANGE, BEARING
-
150405-052 BEARING W/INVERTED OIL SEALBEARING W/INVERTED OIL SEAL
-
160505-499 TIE ROD - ASSEMBLY (INC. 17-21)TIE ROD - ASSEMBLY (INC. 17-21)
-
170505-511 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18)...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18)
-
180423-013 ......NUT - LEFT-HAND THREAD......NUT - LEFT-HAND THREAD
-
190405-281 ...TIE ROD...TIE ROD
-
200505-510 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21)...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21)
-
218420-002 ......NUT - RIGHT-HAND THREAD......NUT - RIGHT-HAND THREAD
-
220423-157 NUT, LOCKNUT, LOCK
-
230623-175 PIN, COTTERPIN, COTTER
