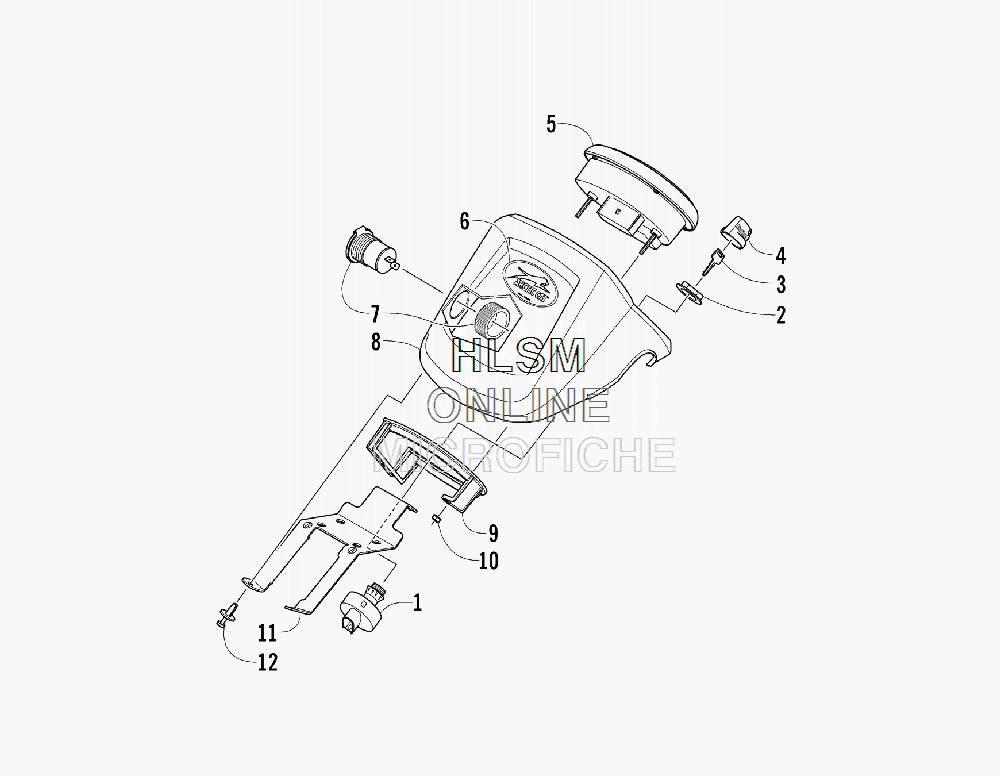

INSTRUMENT POD ASSEMBLY для Arctic Cat 1000 XT 4x4 [A2013AGW1PUSW] - 2013 года выпуска
-
№АртикулНазвание
-
10430-090 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
-
20430-050 ...NUT, RETAINING...NUT, RETAINING
-
30430-042 ...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
-
30430-043 ...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
-
40430-054 ...COVER, KEY...COVER, KEY
-
50520-101 GAUGE, LCDGAUGE, LCD
-
69611-751 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80505-590 INSTRUMENT POD - (BLACK)INSTRUMENT POD - (BLACK)
-
90420-065 BRACKET, RETAININGBRACKET, RETAINING
-
100423-493 NUT W/WASHERNUT W/WASHER
-
112506-470 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
120423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
