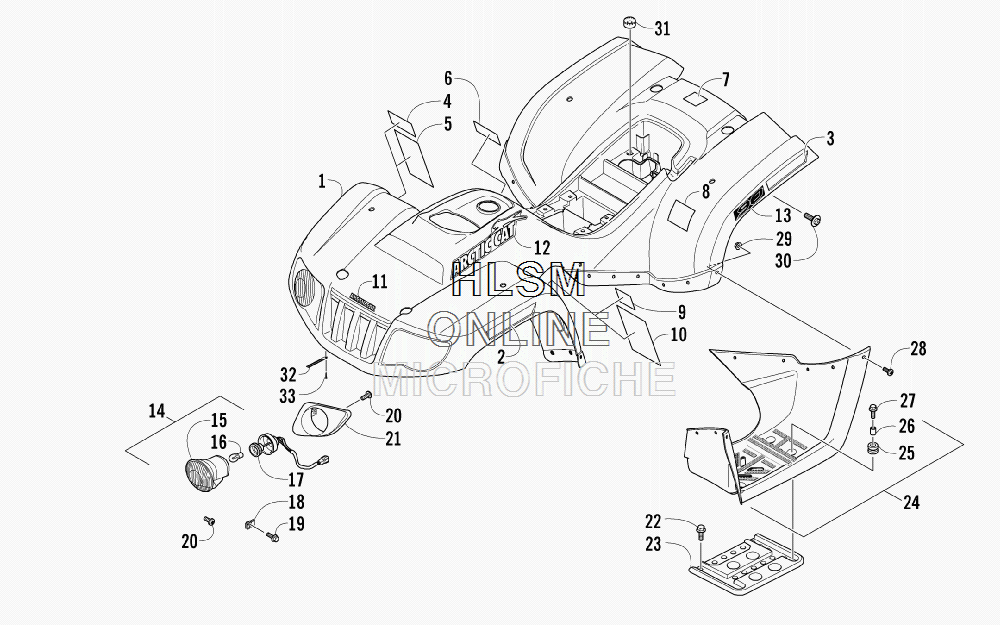

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat 90 2x4 [A2013KUB2BUSZ] - 2013 года выпуска
-
№АртикулНазвание
-
13306-735 PANEL, BODY - MAIN - CAT GREEN (INC. 2-11)PANEL, BODY - MAIN - CAT GREEN (INC. 2-11)
-
21411-180 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
21411-181 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
31411-178 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
31411-179 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
40411-836 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
50411-457 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
61411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
71411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
81411-938 ...DECAL, WARNING - TIRE/LOAD...DECAL, WARNING - TIRE/LOAD
-
92411-162 ...DECAL, WARNING - CAUTION LEAD CONTENT...DECAL, WARNING - CAUTION LEAD CONTENT
-
102411-137 ...DECAL, WARNING - AGE (12)...DECAL, WARNING - AGE (12)
-
111411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
122411-465 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
133411-008 DECAL, CENTER - RIGHTDECAL, CENTER - RIGHT
-
133411-009 DECAL, CENTER - LEFTDECAL, CENTER - LEFT
-
143411-010 DECAL, REAR FENDERDECAL, REAR FENDER
-
153305-976 HEADLIGHT - ASSEMBLY (INC. 16-19)HEADLIGHT - ASSEMBLY (INC. 16-19)
-
163305-977 ...LENS, HEADLIGHT...LENS, HEADLIGHT
-
173305-827 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
183305-978 ...SOCKET ASSEMBLY...SOCKET ASSEMBLY
-
193304-061 ...CLIP, U-NUT...CLIP, U-NUT
-
203305-828 SCREW, CAPSCREW, CAP
-
213304-123 SCREW, MACHINESCREW, MACHINE
-
223306-736 ADAPTER, MOUNTING - HEADLIGHT - RIGHT - CAT GREENADAPTER, MOUNTING - HEADLIGHT - RIGHT - CAT GREEN
-
223306-737 ADAPTER, MOUNTING - HEADLIGHT - LEFT - CAT GREENADAPTER, MOUNTING - HEADLIGHT - LEFT - CAT GREEN
-
233304-543 SCREW, CAPSCREW, CAP
-
243304-494 SUPPORT, MUDGUARD - RIGHTSUPPORT, MUDGUARD - RIGHT
-
243304-495 SUPPORT, MUDGUARD - LEFTSUPPORT, MUDGUARD - LEFT
-
253306-144 MUDGUARD, RIGHT - ASSEMBLY (INC. 26-27)MUDGUARD, RIGHT - ASSEMBLY (INC. 26-27)
-
253306-145 MUDGUARD, LEFT - ASSEMBLY (INC. 26-27)MUDGUARD, LEFT - ASSEMBLY (INC. 26-27)
-
263303-227 ...BUSHING...BUSHING
-
273303-233 ...SPACER...SPACER
-
283304-586 SCREW, CAPSCREW, CAP
-
293305-703 SCREW, MACHINESCREW, MACHINE
-
303304-431 NUT, LOCKNUT, LOCK
-
313304-587 SCREW, CAPSCREW, CAP
-
323303-232 GROMMET, RUBBERGROMMET, RUBBER
-
333304-156 CLAMP, ROUTINGCLAMP, ROUTING
-
343304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
