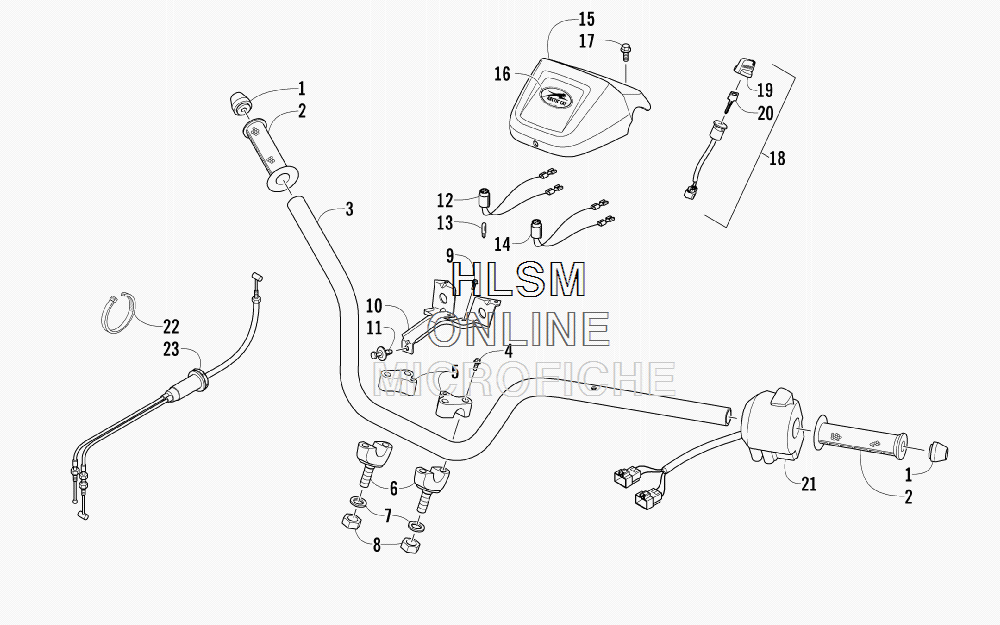

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 90 2x4 [A2013KUB2BUSZ] - 2013 года выпуска
-
№АртикулНазвание
-
13303-196 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
23305-905 GRIP, HANDLEBARGRIP, HANDLEBAR
-
33305-348 HANDLEBARHANDLEBAR
-
43303-398 SCREW, CAPSCREW, CAP
-
53303-197 CLAMP, HANDLEBAR - UPPER RIGHTCLAMP, HANDLEBAR - UPPER RIGHT
-
53303-198 CLAMP, HANDLEBAR - UPPER LEFTCLAMP, HANDLEBAR - UPPER LEFT
-
63303-199 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
73304-136 WASHERWASHER
-
83305-517 NUTNUT
-
93304-553 SCREW, CAPSCREW, CAP
-
103304-506 BRACKET, HANDLEBAR COVERBRACKET, HANDLEBAR COVER
-
113303-592 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
123305-830 LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)
-
133305-867 ...BULB...BULB
-
143305-831 LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)
-
153306-392 COVER, HANDLEBAR - BLACKCOVER, HANDLEBAR - BLACK
-
169611-752 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
173304-029 SCREW, CAPSCREW, CAP
-
183305-998 SWITCH, IGNITION - ASSEMBLY (INC. 19-20)SWITCH, IGNITION - ASSEMBLY (INC. 19-20)
-
193304-522 ...COVER, KEY...COVER, KEY
-
203305-999 ...KEY, IGNITION - RIGHT-SIDE CUT...KEY, IGNITION - RIGHT-SIDE CUT
-
203306-001 ...KEY, IGNITION - LEFT-SIDE CUT...KEY, IGNITION - LEFT-SIDE CUT
-
213303-424 SWITCH, HANDLEBAR - ASSEMBLYSWITCH, HANDLEBAR - ASSEMBLY
-
223303-289 TIE, CABLETIE, CABLE
-
231502-096 CABLE, THROTTLECABLE, THROTTLE
