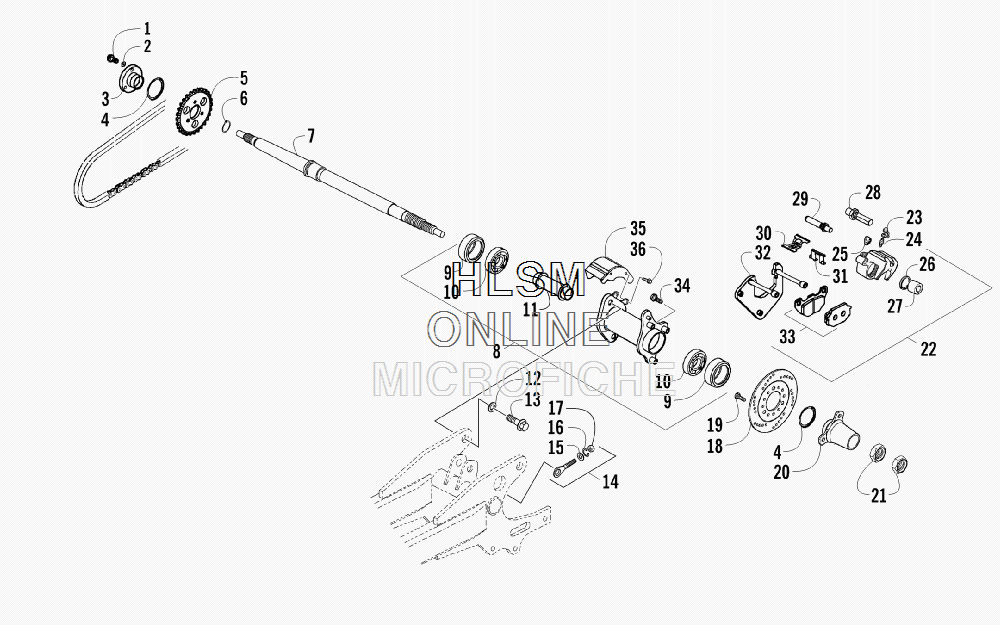

REAR AXLE AND BRAKE ASSEMBLY для Arctic Cat 90 2x4 [A2013KUB2BUSZ] - 2013 года выпуска
-
№АртикулНазвание
-
13304-565 SCREW, CAPSCREW, CAP
-
23303-607 WASHER, LOCKWASHER, LOCK
-
33305-835 RETAINER, SPROCKETRETAINER, SPROCKET
-
43305-298 O-RINGO-RING
-
53303-148 SPROCKET, FINAL DRIVESPROCKET, FINAL DRIVE
-
63305-840 RING, RETAININGRING, RETAINING
-
73305-838 AXLE, REARAXLE, REAR
-
83305-347 HOUSING, REAR AXLE (INC. 9-11)HOUSING, REAR AXLE (INC. 9-11)
-
93303-461 ...SEAL...SEAL
-
103303-466 ...BEARING...BEARING
-
113303-427 ...SPACER...SPACER
-
123303-281 WASHERWASHER
-
133303-379 SCREW, CAPSCREW, CAP
-
143303-147 ADJUSTER, CHAIN - ASSEMBLY (INC. 15-17)ADJUSTER, CHAIN - ASSEMBLY (INC. 15-17)
-
153304-135 ...WASHER...WASHER
-
163303-607 ...WASHER, LOCK...WASHER, LOCK
-
173304-125 ...NUT...NUT
-
183303-162 DISC, BRAKEDISC, BRAKE
-
193303-253 SCREW, CAPSCREW, CAP
-
203305-249 BRACKET, BRAKE DISCBRACKET, BRAKE DISC
-
213305-839 NUTNUT
-
223305-997 CALIPER, REAR - ASSEMBLY (INC. 23-33)CALIPER, REAR - ASSEMBLY (INC. 23-33)
-
233304-303 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
243304-302 ...VALVE, BLEED...VALVE, BLEED
-
253304-333 ...PLUG...PLUG
-
263305-380 ...SEAL, PISTON...SEAL, PISTON
-
273304-314 ...PISTON...PISTON
-
283304-589 ...PIN W/BOOT...PIN W/BOOT
-
293304-590 ...PIN W/BOOT...PIN W/BOOT
-
303304-591 ...SPRING...SPRING
-
313305-377 ...SEAL...SEAL
-
323303-469 ...BRACKET...BRACKET
-
333304-567 ...PAD, BRAKE - ASSEMBLY...PAD, BRAKE - ASSEMBLY
-
343303-256 SCREW, CAPSCREW, CAP
-
353303-144 GUARD, CHAINGUARD, CHAIN
-
363304-610 SCREW, CAPSCREW, CAP
