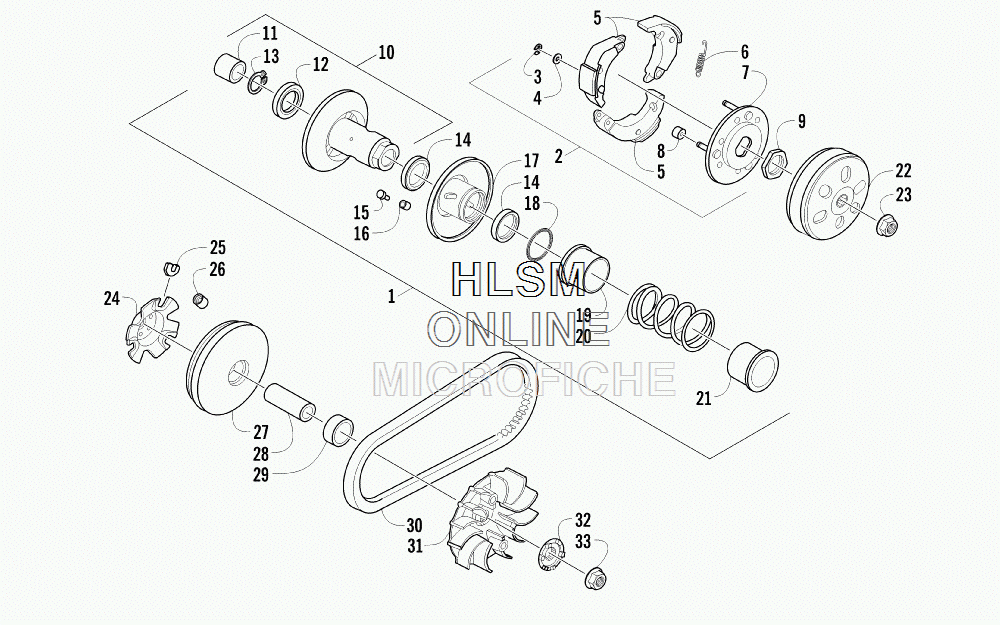

CLUTCH ASSEMBLY для Arctic Cat DVX 90 [A2013KSB2BUSR] - 2013 года выпуска
-
№АртикулНазвание
-
13303-411 PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)
-
23303-090 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
-
33304-618 ......E-RING......E-RING
-
43303-274 ......WASHER, THRUST......WASHER, THRUST
-
53306-733 ......WEIGHT, CLUTCH......WEIGHT, CLUTCH
-
63303-092 ......SPRING......SPRING
-
73303-091 ......PLATE, CLUTCH......PLATE, CLUTCH
-
83303-094 ......ROLLER......ROLLER
-
93304-025 ...NUT...NUT
-
103303-096 ...FACE, DRIVEN - FIXED (INC. 11-13)...FACE, DRIVEN - FIXED (INC. 11-13)
-
113303-294 ......BEARING......BEARING
-
123303-291 ......BEARING......BEARING
-
133303-346 ......CIRCLIP......CIRCLIP
-
143303-299 ...SEAL, OIL...SEAL, OIL
-
153303-098 ...GUIDE, PIN...GUIDE, PIN
-
163303-099 ...GUIDE, ROLLER...GUIDE, ROLLER
-
173303-097 ...FACE, DRIVEN - MOVABLE...FACE, DRIVEN - MOVABLE
-
183304-619 ...O-RING...O-RING
-
193303-102 ...COLLAR...COLLAR
-
203303-100 ...SPRING...SPRING
-
213303-101 ...COLLAR...COLLAR
-
223303-082 CLUTCH, OUTERCLUTCH, OUTER
-
233303-333 NUTNUT
-
243303-088 PLATE, RAMPPLATE, RAMP
-
253303-089 SLIDESLIDE
-
263303-087 ROLLERROLLER
-
273303-086 FACE, DRIVE - MOVABLEFACE, DRIVE - MOVABLE
-
283303-409 SLEEVESLEEVE
-
293303-410 COLLARCOLLAR
-
303303-095 BELT, DRIVEBELT, DRIVE
-
313303-083 FACE, DRIVE - FIXEDFACE, DRIVE - FIXED
-
323303-116 RATCHET, KICK STARTERRATCHET, KICK STARTER
-
333303-334 NUTNUT
