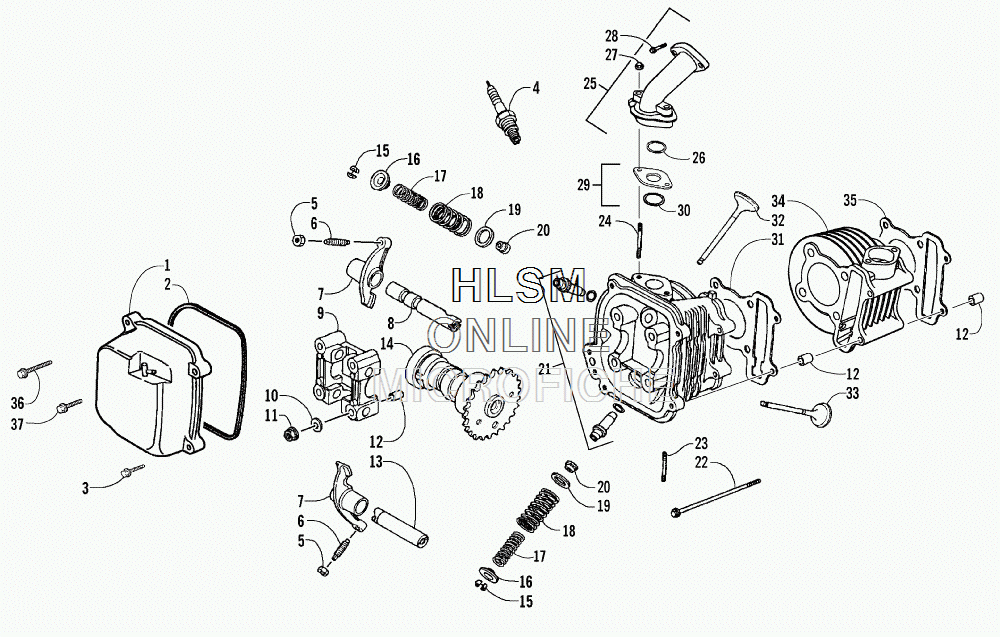

CYLINDER HEAD ASSEMBLY для Arctic Cat DVX 90 [A2013KSB2BUSR] - 2013 года выпуска
-
№АртикулНазвание
-
13305-292 COVER, HEADCOVER, HEAD
-
23304-616 GASKETGASKET
-
33303-360 SCREW, CAPSCREW, CAP
-
40217-726 SPARK PLUG - CR7HSASPARK PLUG - CR7HSA
-
53304-026 NUTNUT
-
63304-007 SCREW, ADJUSTERSCREW, ADJUSTER
-
73303-031 VALVE, ROCKER ARMVALVE, ROCKER ARM
-
83303-032 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
93303-018 RETAINER, CAMSHAFTRETAINER, CAMSHAFT
-
103304-048 WASHERWASHER
-
113303-332 NUTNUT
-
123303-342 PIN, DOWELPIN, DOWEL
-
133303-033 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
143304-617 CAMSHAFTCAMSHAFT
-
153303-044 COTTER, VALVECOTTER, VALVE
-
163303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
173303-041 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
183303-040 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
193303-043 SEAT, VALVE SPRING - OUTERSEAT, VALVE SPRING - OUTER
-
203303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
213303-016 HEAD, CYLINDERHEAD, CYLINDER
-
223303-389 SCREW, CAPSCREW, CAP
-
233303-249 BOLT, STUDBOLT, STUD
-
243303-310 BOLT, STUDBOLT, STUD
-
253303-059 PIPE, INTAKE - ASSEMBLY (INC. 26)PIPE, INTAKE - ASSEMBLY (INC. 26)
-
263303-304 ...O-RING...O-RING
-
273304-654 NUT, LOCKNUT, LOCK
-
283303-384 SCREW, CAPSCREW, CAP
-
293303-511 INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
-
303304-596 ...O-RING...O-RING
-
313303-019 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
323303-038 VALVE, INTAKEVALVE, INTAKE
-
333303-039 VALVE, EXHAUSTVALVE, EXHAUST
-
343303-014 CYLINDERCYLINDER
-
353303-015 GASKET, CYLINDERGASKET, CYLINDER
-
363303-363 SCREW, CAPSCREW, CAP
-
373303-362 SCREW, CAPSCREW, CAP
