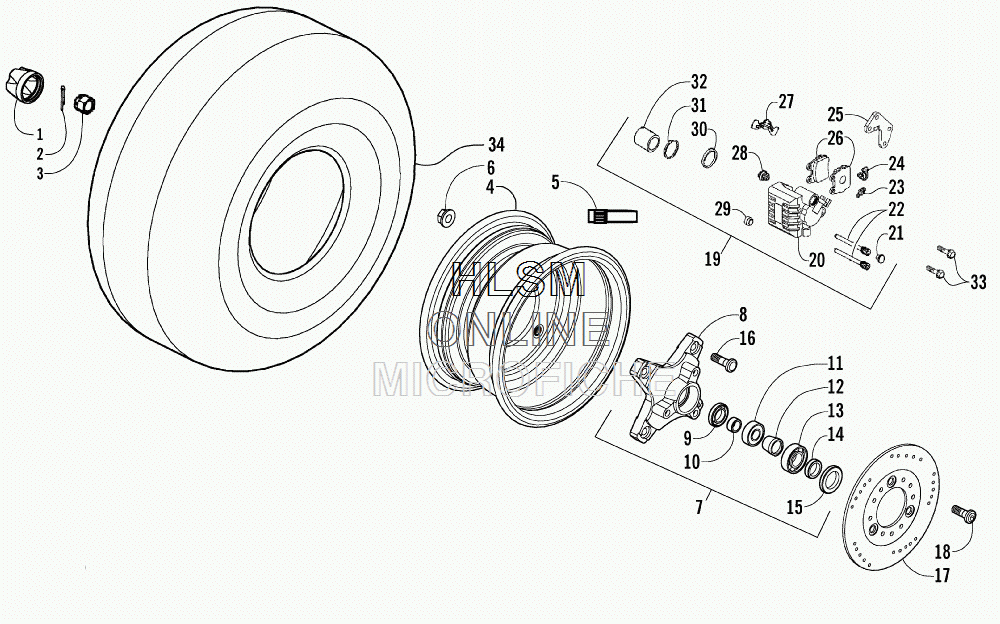

FRONT WHEELS AND BRAKE ASSEMBLY для Arctic Cat 300 Utility [A2014KUF2BUSR] - 2014 года выпуска
-
№АртикулНазвание
-
13303-931 CAP, WHEELCAP, WHEEL
-
23303-340 PIN, COTTERPIN, COTTER
-
33303-330 NUTNUT
-
43306-883 WHEELWHEEL
-
53304-562 STEM, VALVESTEM, VALVE
-
63304-028 NUT, LUGNUT, LUG
-
73303-903 HUB, WHEEL - ASSEMBLY (INC. 8-16)HUB, WHEEL - ASSEMBLY (INC. 8-16)
-
93304-089 ...SEAL...SEAL
-
103303-898 ...COLLAR...COLLAR
-
113304-200 ...BEARING...BEARING
-
123303-900 ...COLLAR...COLLAR
-
133304-202 ...BEARING...BEARING
-
143303-899 ...COLLAR...COLLAR
-
153304-088 ...SEAL...SEAL
-
163304-014 ...STUD...STUD
-
173303-912 DISC, BRAKE - RIGHTDISC, BRAKE - RIGHT
-
173303-918 DISC, BRAKE - LEFTDISC, BRAKE - LEFT
-
183304-015 SCREW, SHOULDERSCREW, SHOULDER
-
193306-192 CALIPER ASSEMBLY - RIGHT (INC. 20-32)CALIPER ASSEMBLY - RIGHT (INC. 20-32)
-
193306-193 CALIPER ASSEMBLY - LEFT (INC. 20-32)CALIPER ASSEMBLY - LEFT (INC. 20-32)
-
213304-333 ...PLUG...PLUG
-
223304-326 ...PIN...PIN
-
233304-302 ...VALVE, BLEED...VALVE, BLEED
-
243304-303 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
253304-317 ...BRACKET, MOUNTING - RIGHT...BRACKET, MOUNTING - RIGHT
-
253304-328 ...BRACKET, MOUNTING - LEFT...BRACKET, MOUNTING - LEFT
-
263303-908 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
273304-315 ...SPRING...SPRING
-
283304-322 ...BOOT...BOOT
-
293304-329 ...BUSHING...BUSHING
-
303303-922 ...SEAL, PISTON - INNER...SEAL, PISTON - INNER
-
313303-910 ...SEAL, PISTON - OUTER...SEAL, PISTON - OUTER
-
323303-909 ...PISTON...PISTON
-
333304-174 BOLT, FLANGEBOLT, FLANGE
-
343306-204 TIRETIRE
