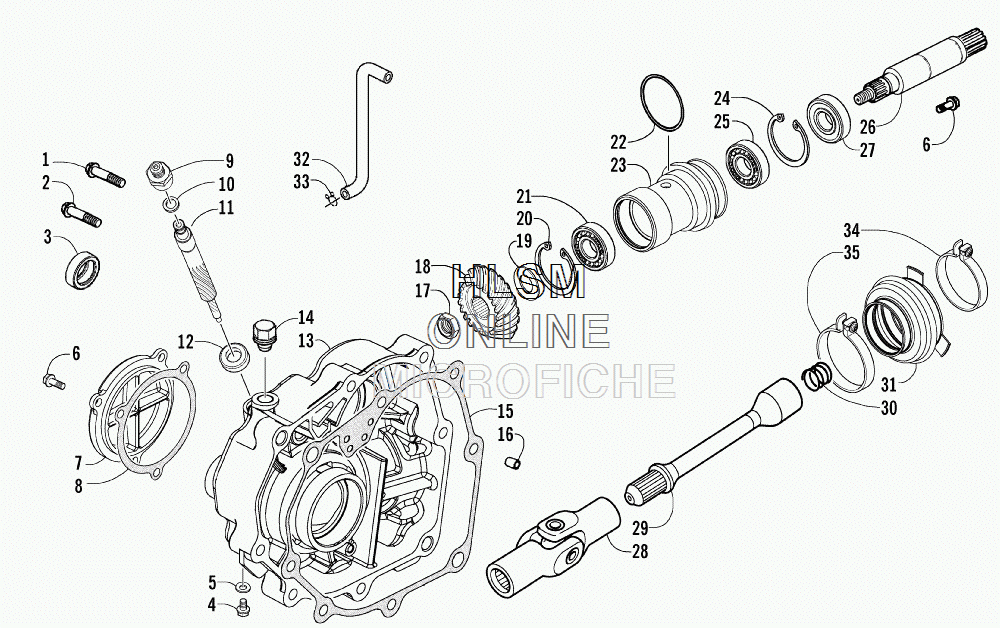

TRANSMISSION CASE ASSEMBLY для Arctic Cat 300 Utility [A2014KUF2BUSR] - 2014 года выпуска
-
№АртикулНазвание
-
13303-615 BOLT FLANGE 8*40BOLT FLANGE 8*40
-
23303-370 BOLT FLANGE 8*45BOLT FLANGE 8*45
-
33304-081 SEAL, OILSEAL, OIL
-
43303-365 SCREW, DRAINSCREW, DRAIN
-
53303-591 WASHERWASHER
-
63303-383 SCREW, CAPSCREW, CAP
-
73303-763 CAP, TRANSMISSION CASECAP, TRANSMISSION CASE
-
83303-766 GASKET, TRANSMISSION CASE CAPGASKET, TRANSMISSION CASE CAP
-
93304-108 ADAPTER, SPEEDOMETERADAPTER, SPEEDOMETER
-
103304-047 WASHERWASHER
-
113303-662 GEAR, SPEEDOMETERGEAR, SPEEDOMETER
-
123304-077 SEALSEAL
-
133303-762 CASE, TRANSMISSION (INC. ONE NO. 12)CASE, TRANSMISSION (INC. ONE NO. 12)
-
143304-052 PLUG, FILLPLUG, FILL
-
153303-765 GASKET, TRANSMISSION CASEGASKET, TRANSMISSION CASE
-
163303-342 PIN, DOWELPIN, DOWEL
-
173304-131 NUTNUT
-
183303-802 GEAR, BEVEL - DRIVENGEAR, BEVEL - DRIVEN
-
193304-624 SHIM, 20.2 X 30 X 0.60 MMSHIM, 20.2 X 30 X 0.60 MM
-
193304-625 SHIM, 20.2 X 30 X 0.65 MMSHIM, 20.2 X 30 X 0.65 MM
-
193304-626 SHIM, 20.2 X 30 X 0.70 MMSHIM, 20.2 X 30 X 0.70 MM
-
193304-627 SHIM, 20.2 X 30 X 0.75 MMSHIM, 20.2 X 30 X 0.75 MM
-
193304-628 SHIM, 20.2 X 30 X 0.80 MMSHIM, 20.2 X 30 X 0.80 MM
-
193304-629 SHIM, 20.2 X 30 X 0.85 MMSHIM, 20.2 X 30 X 0.85 MM
-
193304-630 SHIM, 20.2 X 30 X 0.90 MMSHIM, 20.2 X 30 X 0.90 MM
-
193304-631 SHIM, 20.2 X 30 X 0.95 MMSHIM, 20.2 X 30 X 0.95 MM
-
193304-632 SHIM, 20.2 X 30 X 1.00 MMSHIM, 20.2 X 30 X 1.00 MM
-
193304-633 SHIM, 20.2 X 30 X 1.05 MMSHIM, 20.2 X 30 X 1.05 MM
-
193304-634 SHIM, 20.2 X 30 X 1.10 MMSHIM, 20.2 X 30 X 1.10 MM
-
193304-635 SHIM, 20.2 X 30 X 1.15 MMSHIM, 20.2 X 30 X 1.15 MM
-
203304-151 CIRCLIPCIRCLIP
-
213304-069 BEARINGBEARING
-
223304-105 O-RINGO-RING
-
233303-764 CASE, FINAL SHAFTCASE, FINAL SHAFT
-
243304-152 CIRCLIPCIRCLIP
-
253304-071 BEARINGBEARING
-
263304-642 SHAFT, FINALSHAFT, FINAL
-
273304-087 SEAL, OILSEAL, OIL
-
283303-869 JOINT, YOKEJOINT, YOKE
-
293303-868 SHAFT, PROPELLERSHAFT, PROPELLER
-
303303-870 SPRINGSPRING
-
313303-945 BOOTBOOT
-
323303-630 TUBE, BREATHER (INC. 33)TUBE, BREATHER (INC. 33)
-
333304-433 ...CLAMP...CLAMP
-
343304-058 CLAMPCLAMP
-
353304-059 CLAMPCLAMP
