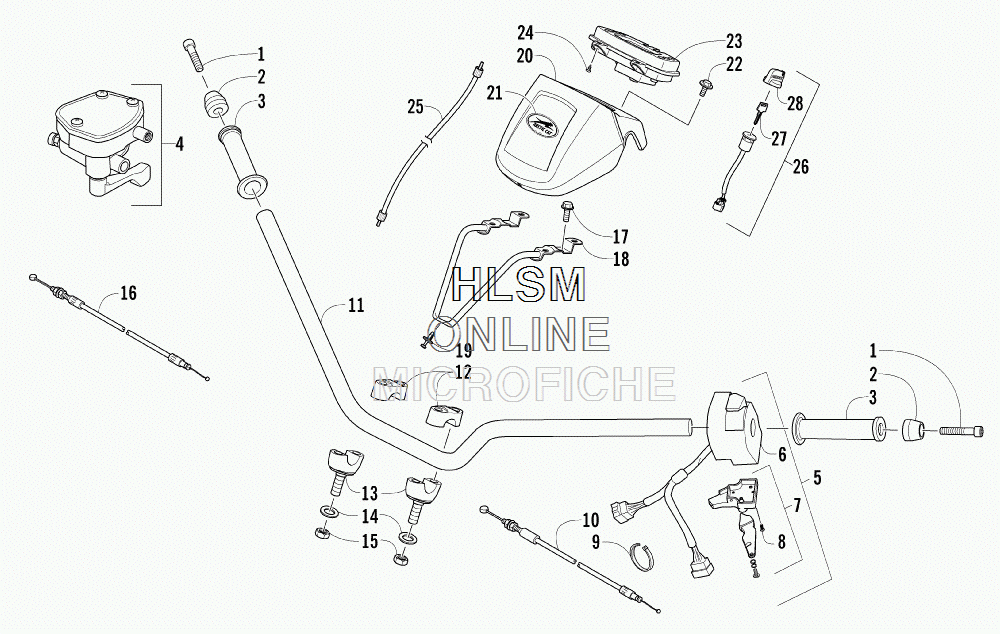

HANDLEBAR- INSTRUMENT POD- AND CONTROL ASSEMBLIES для Arctic Cat 300 Utility [A2014KUF2BUSR] - 2014 года выпуска`
-
№АртикулНазвание
-
13304-016 SCREW, CAPSCREW, CAP
-
23305-541 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
33305-905 GRIP, HANDLEBARGRIP, HANDLEBAR
-
43303-953 CONTROL, THROTTLE - ASSEMBLYCONTROL, THROTTLE - ASSEMBLY
-
53303-852 SWITCH, CONTROL - ASSEMBLY (INC. 6-8)SWITCH, CONTROL - ASSEMBLY (INC. 6-8)
-
63313-428 ...CONTROL...CONTROL
-
73306-800 ...LEVER/BASE, CHOKE - ASSEMBLY (INC. 8)...LEVER/BASE, CHOKE - ASSEMBLY (INC. 8)
-
93303-839 TIE, CABLETIE, CABLE
-
103305-414 CABLE, THROTTLECABLE, THROTTLE
-
113305-457 HANDLEBARHANDLEBAR
-
123303-954 CLAMP, HANDLEBAR - UPPERCLAMP, HANDLEBAR - UPPER
-
133303-955 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
143304-136 WASHERWASHER
-
153306-189 NUTNUT
-
163305-462 CABLE, CHOKECABLE, CHOKE
-
173305-400 SCREW, CAPSCREW, CAP
-
183303-951 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
193304-552 CLIP, RETAININGCLIP, RETAINING
-
203306-199 POD, INSTRUMENT - BLACKPOD, INSTRUMENT - BLACK
-
219611-751 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
223304-029 SCREW, CAPSCREW, CAP
-
233303-859 SPEEDOMETER - ASSEMBLYSPEEDOMETER - ASSEMBLY
-
243304-645 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
253303-906 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
263303-850 SWITCH, IGNITION - ASSEMBLY (INC. 27-28)SWITCH, IGNITION - ASSEMBLY (INC. 27-28)
-
273304-520 ...KEY, IGNITION - RIGHT-SIDE CUT...KEY, IGNITION - RIGHT-SIDE CUT
-
273304-521 ...KEY, IGNITION - LEFT-SIDE CUT...KEY, IGNITION - LEFT-SIDE CUT
-
283304-522 ...COVER, KEY...COVER, KEY
