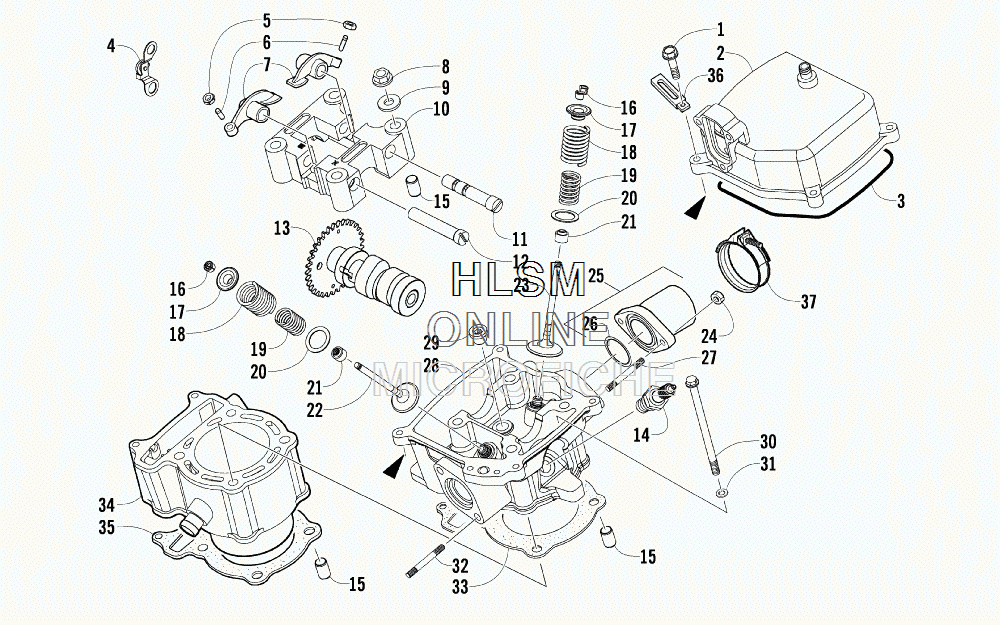

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat DVX 300 [A2014KSF2BOSZ] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
-3306-892 COMPLETE ENGINE ASSEMBLYCOMPLETE ENGINE ASSEMBLY
-
13303-360 SCREW, CAPSCREW, CAP
-
23305-608 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
33305-609 GASKETGASKET
-
43305-618 PLATE, STOPPLATE, STOP
-
53304-026 NUTNUT
-
63304-007 SCREW, ADJUSTERSCREW, ADJUSTER
-
73305-611 ARM, ROCKERARM, ROCKER
-
83303-332 NUTNUT
-
93304-048 WASHERWASHER
-
103305-689 RETAINER, CAMSHAFTRETAINER, CAMSHAFT
-
113303-674 SHAFT, ROCKER ARM - INTAKE (INTAKE)SHAFT, ROCKER ARM - INTAKE (INTAKE)
-
123305-612 SHAFT, ROCKER ARM - EXHAUST (EXHAUST)SHAFT, ROCKER ARM - EXHAUST (EXHAUST)
-
133305-613 CAMSHAFTCAMSHAFT
-
140217-730 SPARK PLUG - DPR7EA-9SPARK PLUG - DPR7EA-9
-
153303-342 PIN, DOWELPIN, DOWEL
-
163303-044 VALVE, COTTERVALVE, COTTER
-
173303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
183303-682 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
193303-683 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
203303-043 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
213303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
223305-615 VALVE, EXHAUSTVALVE, EXHAUST
-
233305-614 VALVE, INTAKEVALVE, INTAKE
-
243304-124 NUTNUT
-
253305-616 FLANGE, INTAKE (INC. 26)FLANGE, INTAKE (INC. 26)
-
263304-620 ...O-RING...O-RING
-
273304-114 BOLT, STUDBOLT, STUD
-
283305-617 HEAD, CYLINDER (INC. 29)HEAD, CYLINDER (INC. 29)
-
293303-656 ...BOLT, SEALING...BOLT, SEALING
-
303304-918 SCREW, CAPSCREW, CAP
-
313304-049 WASHERWASHER
-
323303-249 BOLT, STUDBOLT, STUD
-
333303-659 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
343305-621 CYLINDERCYLINDER
-
353305-461 GASKET, CYLINDERGASKET, CYLINDER
-
363304-157 CLAMP, WIRECLAMP, WIRE
-
373305-410 CLAMP, INTAKE FLANGECLAMP, INTAKE FLANGE
