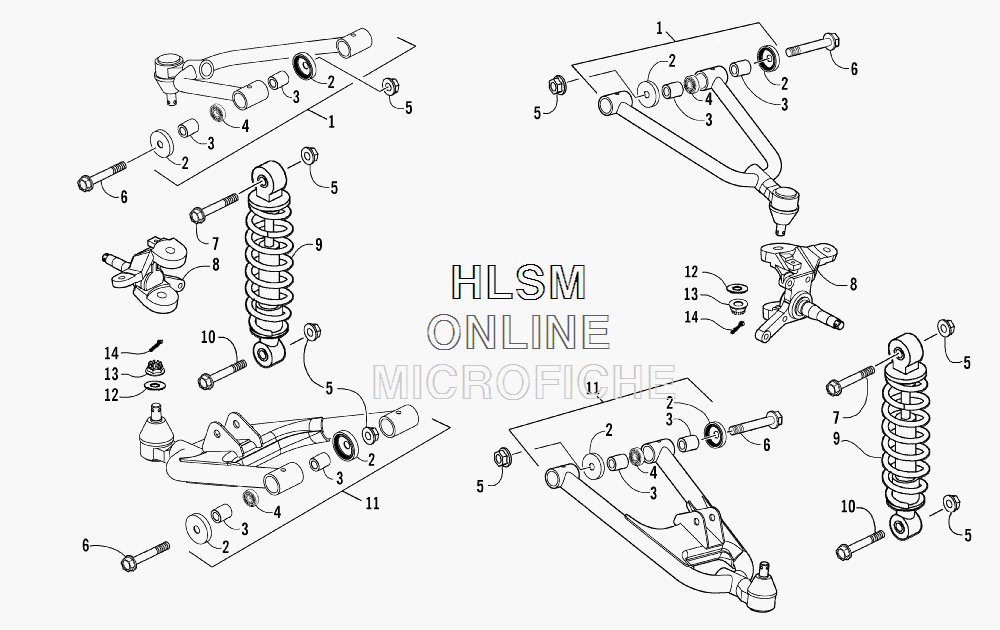

FRONT SUSPENSION ASSEMBLY для Arctic Cat DVX 300 [A2014KSF2BOSZ] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
13305-682 A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
-
13305-683 A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
-
23304-090 ...SEAL...SEAL
-
33304-689 ...BUSHING...BUSHING
-
43304-199 ...BEARING...BEARING
-
53304-031 NUTNUT
-
63304-182 SCREW, CAPSCREW, CAP
-
73303-376 SCREW, CAPSCREW, CAP
-
83304-336 KNUCKLE - ASSEMBLY - RIGHTKNUCKLE - ASSEMBLY - RIGHT
-
83304-337 KNUCKLE - ASSEMBLY - LEFTKNUCKLE - ASSEMBLY - LEFT
-
93306-704 SHOCK/SPRING ASSEMBLY - WHITESHOCK/SPRING ASSEMBLY - WHITE
-
103304-595 SCREW, CAPSCREW, CAP
-
113305-684 A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
-
113305-685 A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
-
123303-335 WASHERWASHER
-
133303-328 NUT, CASTLENUT, CASTLE
-
143303-470 PIN, COTTERPIN, COTTER
