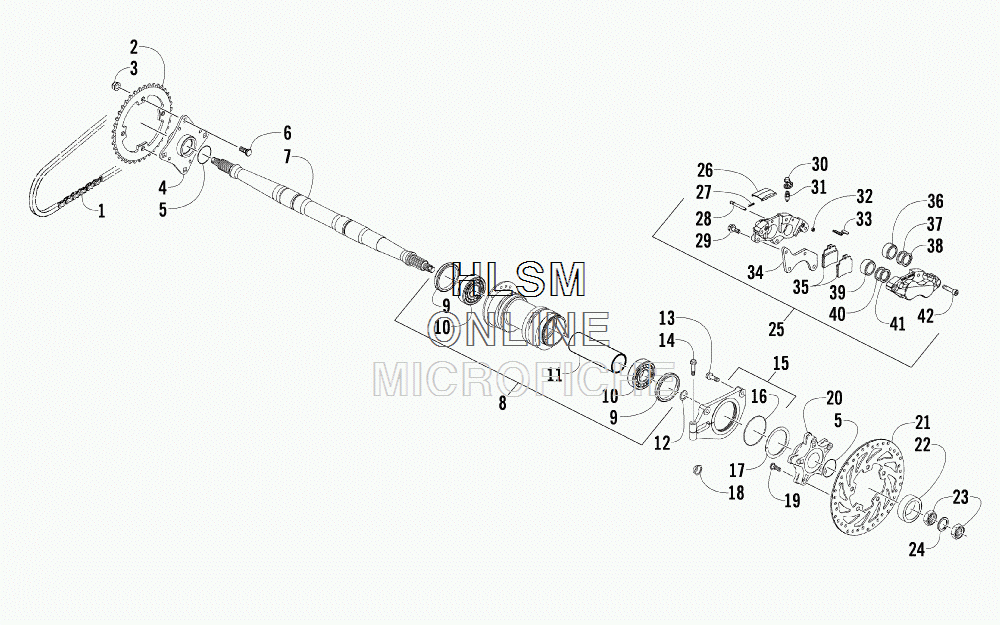

REAR AXLE AND BRAKE ASSEMBLY для Arctic Cat DVX 300 [A2014KSF2BOSZ] (INTERNATIONAL) - 2014 года выпуска
-
№АртикулНазвание
-
13304-510 CHAIN, DRIVECHAIN, DRIVE
-
23304-291 SPROCKET, DRIVESPROCKET, DRIVE
-
33304-031 NUTNUT
-
43304-292 FLANGE, SPROCKETFLANGE, SPROCKET
-
53303-603 O-RINGO-RING
-
63304-403 BOLT, CARRIAGEBOLT, CARRIAGE
-
73305-639 AXLE, REARAXLE, REAR
-
83304-294 HUB, REAR - ASSEMBLY (INC. 9-11)HUB, REAR - ASSEMBLY (INC. 9-11)
-
93304-424 ...SEAL...SEAL
-
103304-688 ...BEARING...BEARING
-
113305-593 ...SPACER...SPACER
-
123304-415 RING, RETAININGRING, RETAINING
-
133304-687 SCREW, CAPSCREW, CAP
-
143304-518 SCREW, CAPSCREW, CAP
-
153304-305 BRACKET, CALIPER (INC. 16)BRACKET, CALIPER (INC. 16)
-
163305-259 ...O-RING...O-RING
-
173304-519 RING, RETAININGRING, RETAINING
-
183304-304 INSERTINSERT
-
193304-015 BOLT, CARRIAGEBOLT, CARRIAGE
-
203304-300 HUB, BRAKE DISC (INC. ONE NO. 5)HUB, BRAKE DISC (INC. ONE NO. 5)
-
213304-301 DISC, BRAKEDISC, BRAKE
-
223304-343 SPACERSPACER
-
233304-342 NUTNUT
-
243305-267 WASHER, LOCKWASHER, LOCK
-
253306-194 CALIPER ASSEMBLY - REAR (INC. 26-42)CALIPER ASSEMBLY - REAR (INC. 26-42)
-
263304-318 ...COVER, DUST...COVER, DUST
-
273303-608 ...PIN, LOCK...PIN, LOCK
-
283304-325 ...PIN...PIN
-
293304-174 ...SCREW, CAP...SCREW, CAP
-
303304-303 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
313304-302 ...BLEED VALVE...BLEED VALVE
-
323304-333 ...PLUG...PLUG
-
333304-696 ...SPRING, BRAKE PAD...SPRING, BRAKE PAD
-
343304-695 ...BRACKET...BRACKET
-
353304-697 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
363305-262 ...PISTON...PISTON
-
373306-585 ...SEAL, DUST...SEAL, DUST
-
383305-380 ...SEAL, PISTON...SEAL, PISTON
-
393306-195 ...PISTON...PISTON
-
403306-196 ...SEAL, DUST...SEAL, DUST
-
413306-191 ...SEAL, PISTON...SEAL, PISTON
-
423304-440 ...SCREW, CAP...SCREW, CAP
