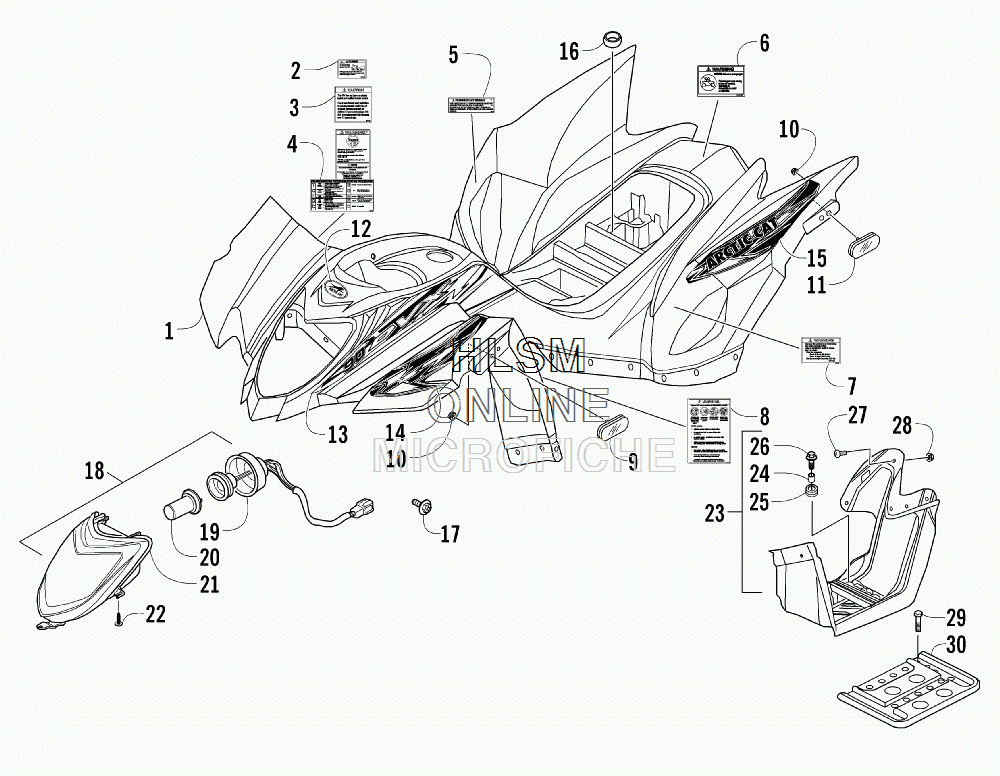

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BUSZ] - 2014 года выпуска

№

Артикул

Название
1

3306-209 PANEL, BODY - MAIN - GREEN (INC. 2-11)

PANEL, BODY - MAIN - GREEN (INC. 2-11)

62 810 ₽
2

0411-836 ...DECAL, WARNING - HILL

...DECAL, WARNING - HILL

12 270 ₽
3

2411-162 ...DECAL, WARNING - CAUTION LEAD CONTENT

...DECAL, WARNING - CAUTION LEAD CONTENT

1 660 ₽
4

2411-136 ...DECAL, WARNING - REVERSE/PRE-RIDE

...DECAL, WARNING - REVERSE/PRE-RIDE

2 700 ₽
5

1411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS

...DECAL, WARNING - NOT FOR HIGHWAYS

7 480 ₽
6

1411-809 ...DECAL, WARNING - PASSENGER

...DECAL, WARNING - PASSENGER

500 ₽
7

1411-938 ...DECAL, WARNING - TIRE/LOAD

...DECAL, WARNING - TIRE/LOAD

1 870 ₽
8

1411-932 ...DECAL, WARNING - GENERAL

...DECAL, WARNING - GENERAL

1 870 ₽
9

3313-359 ...REFLECTOR - FRONT - AMBER

...REFLECTOR - FRONT - AMBER

2 070 ₽
10

3304-774 ...NUT

...NUT

130 ₽
11

3313-360 ...REFLECTOR - REAR - RED

...REFLECTOR - REAR - RED

2 070 ₽
12

9611-752 DECAL, "ARCTIC CAT"

DECAL, "ARCTIC CAT"

6 440 ₽
13

3411-592 DECAL, SIDE - FORWARD RIGHT

DECAL, SIDE - FORWARD RIGHT

8 310 ₽
13

3411-593 DECAL, SIDE - FORWARD LEFT

DECAL, SIDE - FORWARD LEFT

7 480 ₽
14

3411-590 DECAL, FRONT FENDER - RIGHT

DECAL, FRONT FENDER - RIGHT

4 360 ₽
14

3411-591 DECAL, FRONT FENDER - LEFT

DECAL, FRONT FENDER - LEFT

4 360 ₽
15

3411-594 DECAL, REAR FENDER - RIGHT

DECAL, REAR FENDER - RIGHT

3 740 ₽
15

3411-595 DECAL, REAR FENDER - LEFT

DECAL, REAR FENDER - LEFT

6 230 ₽
16

3303-232 GROMMET, RUBBER

GROMMET, RUBBER

290 ₽
17

3304-587 SCREW, CAP

SCREW, CAP

190 ₽
18

3304-280 HEADLIGHT - ASSEMBLY (INC. 19-21)

HEADLIGHT - ASSEMBLY (INC. 19-21)

30 360 ₽
19

3304-282 ...SOCKET ASSEMBLY

...SOCKET ASSEMBLY

5 400 ₽
20

3303-846 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

6 230 ₽
21

3304-281 ...LENS, HEADLIGHT

...LENS, HEADLIGHT

26 830 ₽
22

3304-650 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
23

3306-144 MUDGUARD, RIGHT - ASSEMBLY (INC. 24-25)

MUDGUARD, RIGHT - ASSEMBLY (INC. 24-25)

12 270 ₽
23

3306-145 MUDGUARD, LEFT - ASSEMBLY (INC. 24-25)

MUDGUARD, LEFT - ASSEMBLY (INC. 24-25)

12 270 ₽
24

3303-233 ...SPACER

...SPACER

360 ₽
25

3303-227 ...BUSHING

...BUSHING

290 ₽
26

3304-586 SCREW, CAP

SCREW, CAP

190 ₽
27

3305-703 SCREW, MACHINE

SCREW, MACHINE

270 ₽
28

3304-431 NUT, LOCK

NUT, LOCK

190 ₽
29

3304-543 SCREW, CAP

SCREW, CAP

230 ₽
30

3304-494 SUPPORT, MUDGUARD - RIGHT

SUPPORT, MUDGUARD - RIGHT

5 400 ₽
30

3304-495 SUPPORT, MUDGUARD - LEFT

SUPPORT, MUDGUARD - LEFT

5 400 ₽
