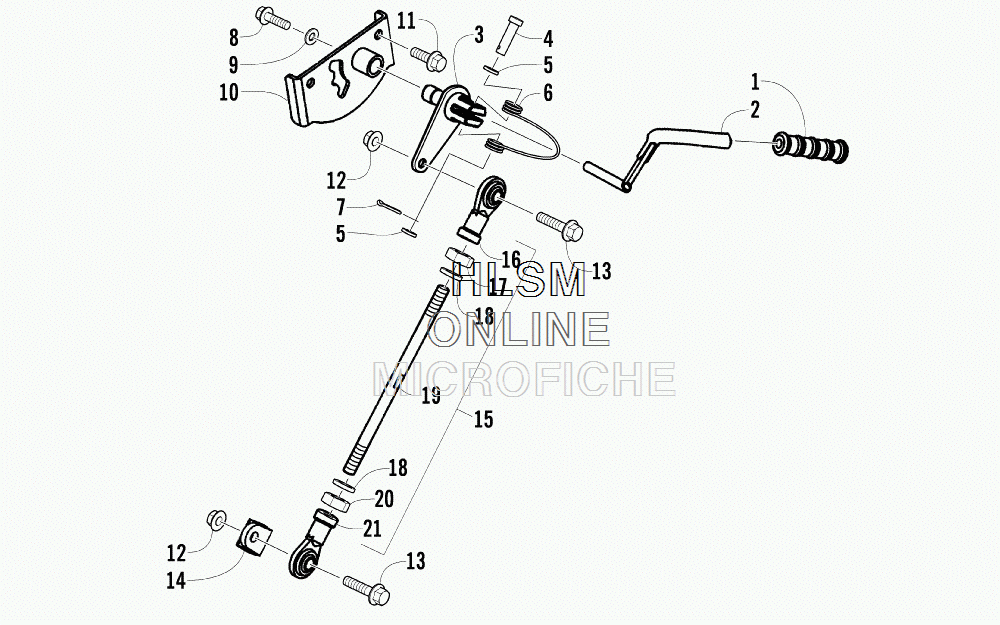

SHIFT LEVER ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BUSZ] - 2014 года выпуска
-
№АртикулНазвание
-
13305-911 HANDLE, SHIFT LEVERHANDLE, SHIFT LEVER
-
23305-854 LEVER, SHIFTLEVER, SHIFT
-
33305-849 PIVOT, SHIFT LEVERPIVOT, SHIFT LEVER
-
43303-817 PIN, SHIFT LEVERPIN, SHIFT LEVER
-
53305-195 WASHERWASHER
-
63305-853 SPRINGSPRING
-
73304-142 PIN, COTTERPIN, COTTER
-
83304-553 SCREW, CAPSCREW, CAP
-
93305-852 WASHERWASHER
-
103305-851 BRACKET, SHIFT LEVERBRACKET, SHIFT LEVER
-
113304-543 SCREW, CAPSCREW, CAP
-
123304-668 NUT, LOCKNUT, LOCK
-
133304-176 SCREW, CAPSCREW, CAP
-
143305-825 BRACKET, SHIFT LEVERBRACKET, SHIFT LEVER
-
153305-847 SHIFT LINKAGE ASSEMBLY (INC. 16-21)SHIFT LINKAGE ASSEMBLY (INC. 16-21)
