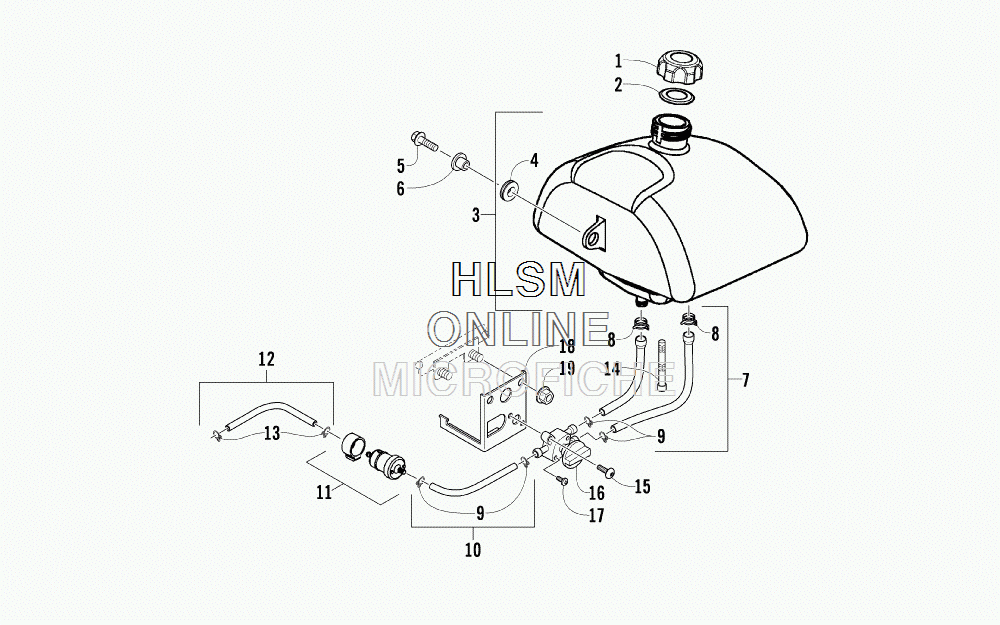

GAS TANK ASSEMBLY для Arctic Cat DVX 90 [A2014KSB2BUSZ] - 2014 года выпуска
-
№АртикулНазвание
-
13306-003 CAP, GAS TANKCAP, GAS TANK
-
23303-068 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
33305-488 TANK, GAS - ASSEMBLY (INC. 4)TANK, GAS - ASSEMBLY (INC. 4)
-
43303-406 ...GROMMET...GROMMET
-
53303-383 SCREW, CAPSCREW, CAP
-
63303-226 INSERTINSERT
-
73305-489 HOSE ASSEMBLY (INC. 8 AND TWO NO. 9)HOSE ASSEMBLY (INC. 8 AND TWO NO. 9)
-
83303-351 ...CLAMP, HOSE...CLAMP, HOSE
-
93303-349 ...CLAMP, HOSE...CLAMP, HOSE
-
103305-521 HOSE ASSEMBLY (INC. TWO NO. 9)HOSE ASSEMBLY (INC. TWO NO. 9)
-
113303-699 FILTER, FUEL - ASSEMBLYFILTER, FUEL - ASSEMBLY
-
123305-522 HOSE ASSEMBLY (INC. 13)HOSE ASSEMBLY (INC. 13)
-
133303-348 ...CLAMP, HOSE...CLAMP, HOSE
-
143303-058 STRAINER, FUELSTRAINER, FUEL
-
153303-316 SCREW, MACHINESCREW, MACHINE
-
163303-057 SHUT-OFF, FUEL (INC. 17)SHUT-OFF, FUEL (INC. 17)
-
173304-120 ...SCREW, MACHINE...SCREW, MACHINE
-
183305-294 BRACKET, MOUNTING - FUEL SHUT-OFFBRACKET, MOUNTING - FUEL SHUT-OFF
-
193304-654 NUT, LOCKNUT, LOCK
