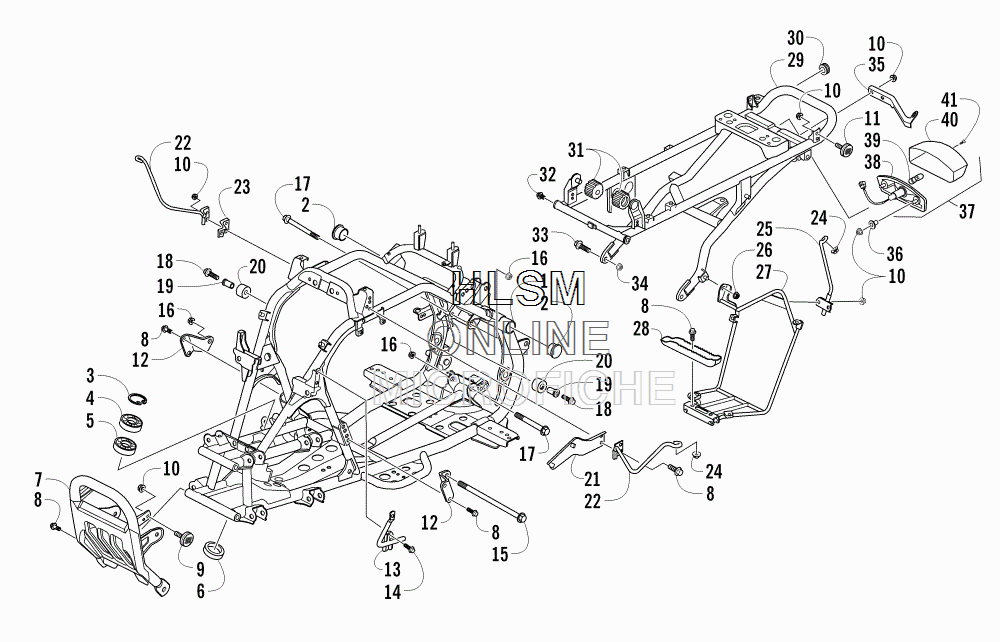

FRAME- TAILLIGHT- AND RELATED PARTS ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
13304-338 FRAME, MAIN - FRONTFRAME, MAIN - FRONT
-
23304-658 END CAP, FRAMEEND CAP, FRAME
-
33304-150 RING, RETAININGRING, RETAINING
-
43304-203 BEARINGBEARING
-
53303-298 SEAL, OILSEAL, OIL
-
63304-064 SEAL, DUSTSEAL, DUST
-
73305-270 PIPE, FRONT BUMPERPIPE, FRONT BUMPER
-
83304-543 SCREW, CAPSCREW, CAP
-
93305-272 REFLECTOR - AMBERREFLECTOR - AMBER
-
103304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
113305-273 REFLECTOR - REDREFLECTOR - RED
-
123303-938 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
133304-352 BRACKET, SUPPORT - FENDER - FRONT - RIGHTBRACKET, SUPPORT - FENDER - FRONT - RIGHT
-
133304-353 BRACKET, SUPPORT - FENDER - FRONT - LEFTBRACKET, SUPPORT - FENDER - FRONT - LEFT
-
143304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
153304-184 BOLT, FLANGEBOLT, FLANGE
-
163304-031 U-NUTU-NUT
-
173304-183 SCREW, CAPSCREW, CAP
-
183304-408 SCREW, CAPSCREW, CAP
-
193304-701 INSERTINSERT
-
203304-362 GROMMETGROMMET
-
213303-935 STAY, CATCH TANKSTAY, CATCH TANK
-
223304-350 BRACKET, MOUNTING - FENDER SUPPORT - RIGHTBRACKET, MOUNTING - FENDER SUPPORT - RIGHT
-
223304-351 BRACKET, MOUNTING - FENDER SUPPORT - LEFTBRACKET, MOUNTING - FENDER SUPPORT - LEFT
-
233303-740 BRACKET, MOUNTING - RADIATORBRACKET, MOUNTING - RADIATOR
-
243304-417 NUT, STAMPEDNUT, STAMPED
-
253304-348 BRACKET, SUPPORT - FENDER - REAR - RIGHTBRACKET, SUPPORT - FENDER - REAR - RIGHT
-
253304-349 BRACKET, SUPPORT - FENDER - REAR - LEFTBRACKET, SUPPORT - FENDER - REAR - LEFT
-
263303-332 NUTNUT
-
273304-354 BRACKET, MOUNTING - FENDER - RIGHTBRACKET, MOUNTING - FENDER - RIGHT
-
273304-356 STAY, FENDER - LEFT REARSTAY, FENDER - LEFT REAR
-
283304-346 FOOTPEGFOOTPEG
-
293305-271 PIPE, REAR FRAMEPIPE, REAR FRAME
-
303303-239 GROMMETGROMMET
-
313304-245 SUPPORT, GAS TANKSUPPORT, GAS TANK
-
323304-435 SCREW, CAPSCREW, CAP
-
333304-181 SCREW, CAPSCREW, CAP
-
343303-333 NUT, FLANGE - 10 MMNUT, FLANGE - 10 MM
-
353304-345 BRACKET, MOUNTING - FENDER - REAR - RIGHTBRACKET, MOUNTING - FENDER - REAR - RIGHT
-
353304-344 BRACKET, MOUNTING - FENDER - REAR - LEFTBRACKET, MOUNTING - FENDER - REAR - LEFT
-
363303-226 INSERTINSERT
-
373303-420 TAILLIGHT - ASSEMBLY (INC. 38-41)TAILLIGHT - ASSEMBLY (INC. 38-41)
-
383303-422 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
393303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
403304-283 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
413304-537 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
