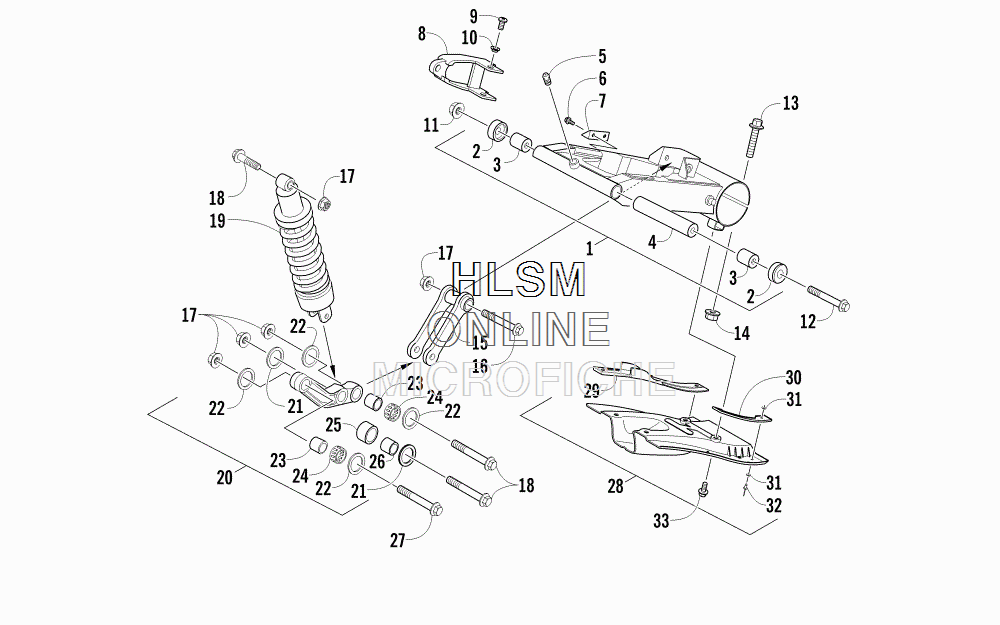

REAR SUSPENSION ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
13305-687 FORK, REAR - ASSEMBLY (INC. 2-5)FORK, REAR - ASSEMBLY (INC. 2-5)
-
23303-192 ...CAP...CAP
-
33304-359 ...BUSHING...BUSHING
-
43304-358 ...AXLE, REAR FORK...AXLE, REAR FORK
-
53303-393 ...FITTING, GREASE...FITTING, GREASE
-
63304-405 SCREW, CAPSCREW, CAP
-
73304-289 GUIDE, CHAINGUIDE, CHAIN
-
83304-361 GUIDE, CHAINGUIDE, CHAIN
-
93304-690 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
103304-360 BUSHINGBUSHING
-
113304-411 NUTNUT
-
123303-150 SCREW, CAPSCREW, CAP
-
133304-649 SCREW, CAPSCREW, CAP
-
143303-269 NUTNUT
-
153304-365 LINK, ARM - ASSEMBLYLINK, ARM - ASSEMBLY
-
163304-183 SCREW, CAPSCREW, CAP
-
173304-031 U-NUTU-NUT
-
183304-185 SCREW, CAPSCREW, CAP
-
193306-697 SHOCK/SPRING ASSEMBLY WHITESHOCK/SPRING ASSEMBLY WHITE
-
203304-363 LINK, SHOCK - ASSEMBLY (INC. 21-26)LINK, SHOCK - ASSEMBLY (INC. 21-26)
-
213304-090 ...SEAL...SEAL
-
223304-459 ...SEAL...SEAL
-
233304-364 ...COLLAR...COLLAR
-
243304-421 ...BEARING...BEARING
-
253304-372 ...SLEEVE...SLEEVE
-
263304-309 ...AXLE...AXLE
-
273304-436 SCREW, CAPSCREW, CAP
-
283305-972 PROTECTOR, FORK - ASSEMBLY - REAR (INC. 29-32)PROTECTOR, FORK - ASSEMBLY - REAR (INC. 29-32)
-
293304-287 ...GUARD, CHAIN...GUARD, CHAIN
-
303304-288 ...GUARD, BRAKE DISC...GUARD, BRAKE DISC
-
313305-773 ...WASHER...WASHER
-
323305-774 ...RIVET...RIVET
-
333304-587 SCREW, CAPSCREW, CAP
