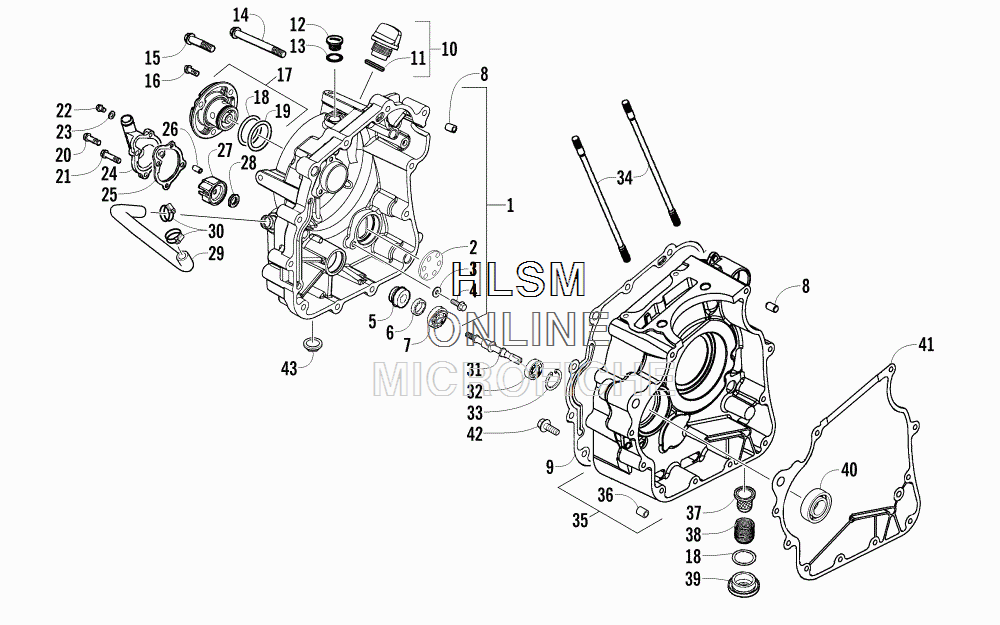

RIGHT CRANKCASE AND COVER ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BUSZ] - 2015 года выпуска
-
№АртикулНазвание
-
13305-626 COVER, CRANKCASE (INC. 2-7)COVER, CRANKCASE (INC. 2-7)
-
23303-696 ...PLATE, SIGHT GAUGE...PLATE, SIGHT GAUGE
-
43304-005 ...SCREW, CAP...SCREW, CAP
-
53303-751 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
63304-078 ...SEAL, OIL...SEAL, OIL
-
73304-068 ...BEARING...BEARING
-
83303-342 PIN, DOWELPIN, DOWEL
-
93303-641 GASKETGASKET
-
103303-695 GAUGE, OIL LEVEL (INC. 11)GAUGE, OIL LEVEL (INC. 11)
-
113304-102 ...O-RING...O-RING
-
123304-012 CAPCAP
-
133304-099 O-RINGO-RING
-
143304-192 SCREW, CAPSCREW, CAP
-
153303-387 SCREW, CAPSCREW, CAP
-
163303-382 BOLT, FLANGEBOLT, FLANGE
-
173304-013 CAP, CRANKCASE COVER (INC. 18-19)CAP, CRANKCASE COVER (INC. 18-19)
-
183304-096 ...O-RING...O-RING
-
193304-098 ...O-RING...O-RING
-
203303-619 BOLT, FLANGEBOLT, FLANGE
-
213303-385 SCREW, CAPSCREW, CAP
-
223304-186 SCREW, CAPSCREW, CAP
-
233304-049 WASHERWASHER
-
243303-752 COVER, WATER PUMPCOVER, WATER PUMP
-
253303-753 GASKET, WATER PUMPGASKET, WATER PUMP
-
263303-341 PIN, DOWELPIN, DOWEL
-
273303-750 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
283304-038 WASHERWASHER
-
293303-758 HOSE, COOLANT - WATER PUMP/CYLINDERHOSE, COOLANT - WATER PUMP/CYLINDER
-
303304-165 CLIP, WATER HOSECLIP, WATER HOSE
-
313303-754 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
323304-193 BEARINGBEARING
-
333304-148 RING, RETAININGRING, RETAINING
-
343304-008 BOLT, STUDBOLT, STUD
-
353305-605 CRANKCASE - RIGHT (INC. 36)CRANKCASE - RIGHT (INC. 36)
-
363304-065 ...PLUG...PLUG
-
373303-691 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
383303-692 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
393303-021 CAPCAP
-
403304-195 BEARINGBEARING
-
413303-628 GASKET, CRANKCASEGASKET, CRANKCASE
-
423304-191 BOLT, FLANGEBOLT, FLANGE
-
433304-052 SCREW, CAP - W/WASHERSCREW, CAP - W/WASHER
