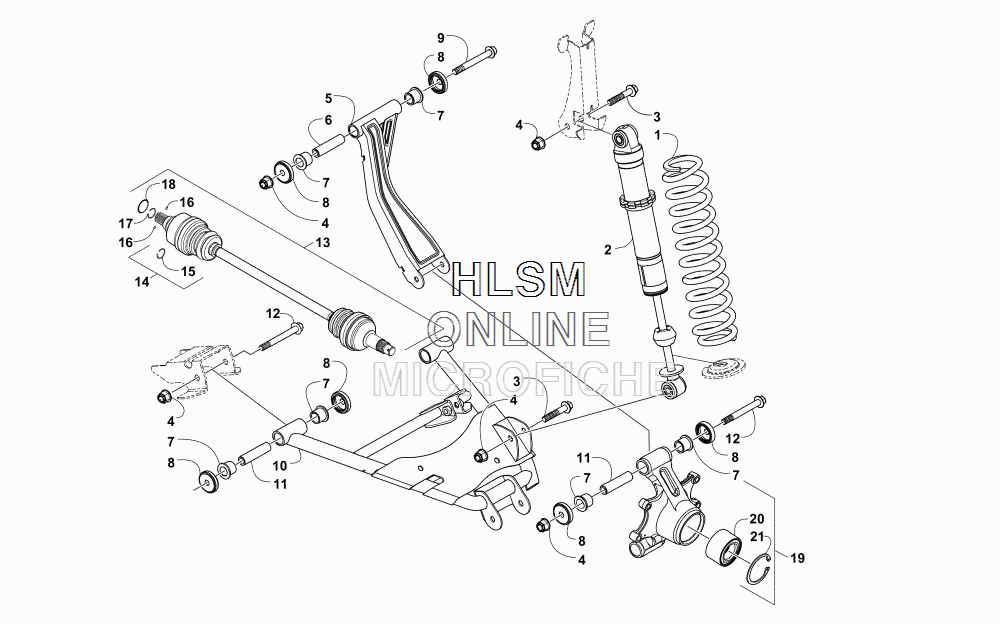

REAR SUSPENSION ASSEMBLY для Arctic Cat WILDCAT TRAIL RED [U2015W5T4CUSR] - 2015 года выпуска
-
№АртикулНазвание
-
10504-794 SPRING, SUSPENSION - WHITESPRING, SUSPENSION - WHITE
-
20404-306 SHOCK ABSORBERSHOCK ABSORBER
-
38409-055 SCREW, CAPSCREW, CAP
-
41423-334 NUT, LOCKNUT, LOCK
-
50504-806 A-ARM, REAR - ASSEMBLY - UPPER RIGHT - BLACK (INC. 6-8)A-ARM, REAR - ASSEMBLY - UPPER RIGHT - BLACK (INC. 6-8)
-
50504-807 A-ARM, REAR - ASSEMBLY - UPPER LEFT - BLACK (INC. 6-8)A-ARM, REAR - ASSEMBLY - UPPER LEFT - BLACK (INC. 6-8)
-
60403-305 ...SLEEVE...SLEEVE
-
70403-264 ...BUSHING...BUSHING
-
81423-204 ...SEAL...SEAL
-
91423-215 SCREW, CAPSCREW, CAP
-
101504-030 A-ARM, REAR - ASSEMBLY - LOWER RIGHT - BLACK (INC. 7-8 AND 11)A-ARM, REAR - ASSEMBLY - LOWER RIGHT - BLACK (INC. 7-8 AND 11)
-
101504-031 A-ARM, REAR - ASSEMBLY - LOWER LEFT - BLACK (INC. 7-8 AND 11)A-ARM, REAR - ASSEMBLY - LOWER LEFT - BLACK (INC. 7-8 AND 11)
-
110403-250 ...SLEEVE...SLEEVE
-
128413-090 SCREW, CAPSCREW, CAP
-
132502-349 KIT, HALFSHAFT (INC. 14-18)KIT, HALFSHAFT (INC. 14-18)
-
142436-112 ...REPAIR KIT, BOOT...REPAIR KIT, BOOT
-
151441-988 ...CLIP, RETAINING...CLIP, RETAINING
-
161402-884 ...PIN, DETENT...PIN, DETENT
-
171402-890 ...CLIP, RETAINING...CLIP, RETAINING
-
181402-963 ...O-RING...O-RING
-
190504-681 KNUCKLE, REAR - ASSEMBLY (INC. 7-8, 11 AND 20-21)KNUCKLE, REAR - ASSEMBLY (INC. 7-8, 11 AND 20-21)
-
201402-809 ...BEARING...BEARING
-
210423-423 ...RING, RETAINING...RING, RETAINING
