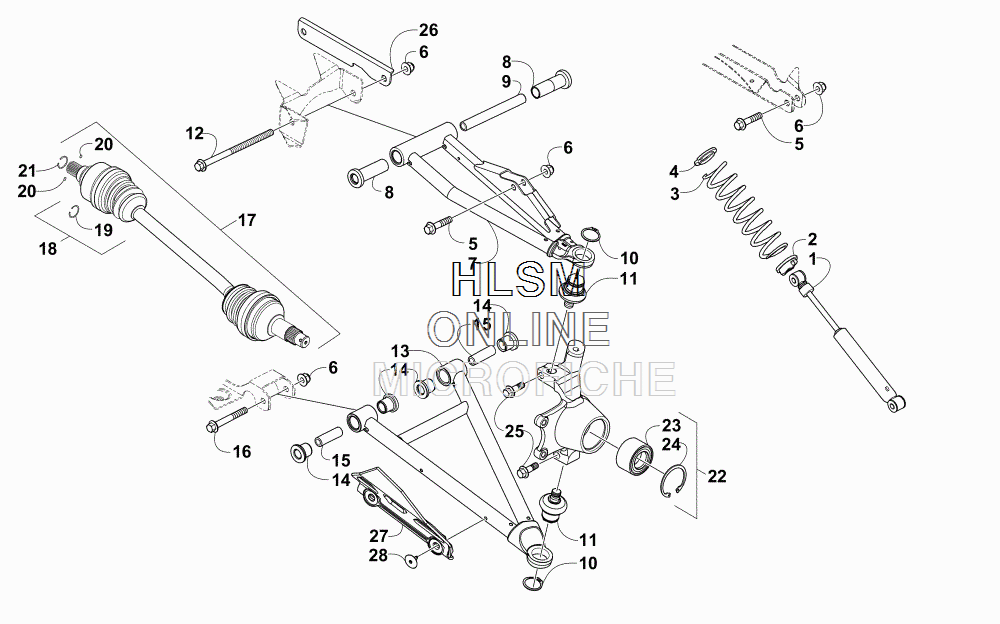

FRONT SUSPENSION ASSEMBLY для Arctic Cat XR 550 GREEN [A2015XAO4EUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10403-420 SHOCK ABSORBERSHOCK ABSORBER
-
20403-395 CAM, ADJUSTER - SPRINGCAM, ADJUSTER - SPRING
-
30503-882 SPRING, SUSPENSION - WHITESPRING, SUSPENSION - WHITE
-
41603-889 RETAINER, SPRINGRETAINER, SPRING
-
58409-045 SCREW, CAPSCREW, CAP
-
60423-744 NUT, LOCKNUT, LOCK
-
70503-870 A-ARM, UPPER RIGHT - BLACK (INC. TWO NO. 8, ONE NO. 9, AND TWO NO. 10-11)A-ARM, UPPER RIGHT - BLACK (INC. TWO NO. 8, ONE NO. 9, AND TWO NO. 10-11)
-
70503-871 A-ARM, UPPER LEFT - BLACK (INC. TWO NO. 8, ONE NO. 9, AND TWO NO. 10-11)A-ARM, UPPER LEFT - BLACK (INC. TWO NO. 8, ONE NO. 9, AND TWO NO. 10-11)
-
80403-289 ...BUSHING, UPPER A-ARM SUSPENSION...BUSHING, UPPER A-ARM SUSPENSION
-
90403-439 ...AXLE...AXLE
-
100423-009 ...CLIP, BALL JOINT...CLIP, BALL JOINT
-
110405-483 ...BALL JOINT...BALL JOINT
-
120423-334 SCREW, CAPSCREW, CAP
-
130503-868 A-ARM, LOWER RIGHT - BLACK (INC. TWO NO. 10-11, FOUR NO. 14, AND TWO NO. 15)A-ARM, LOWER RIGHT - BLACK (INC. TWO NO. 10-11, FOUR NO. 14, AND TWO NO. 15)
-
130503-869 A-ARM, LOWER LEFT - BLACK (INC. TWO NO. 10-11, FOUR NO. 14, AND TWO NO. 15)A-ARM, LOWER LEFT - BLACK (INC. TWO NO. 10-11, FOUR NO. 14, AND TWO NO. 15)
-
140403-409 ...BUSHING...BUSHING
-
150403-438 ...COLLAR...COLLAR
-
168409-075 SCREW, CAPSCREW, CAP
-
172502-351 KIT, HALFSHAFT (INC. 18-20)KIT, HALFSHAFT (INC. 18-20)
-
182436-111 ...REPAIR KIT, BOOT (INC. 19)...REPAIR KIT, BOOT (INC. 19)
-
191441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
201402-885 ...PIN, DETENT...PIN, DETENT
-
211402-889 CLIP, RETAININGCLIP, RETAINING
-
220503-880 KNUCKLE - ASSEMBLY - RIGHT (INC. ONE NO. 23-24)KNUCKLE - ASSEMBLY - RIGHT (INC. ONE NO. 23-24)
-
220503-881 KNUCKLE - ASSEMBLY - LEFT (INC. ONE NO. 23-24)KNUCKLE - ASSEMBLY - LEFT (INC. ONE NO. 23-24)
-
231402-809 ...BEARING...BEARING
-
240423-423 ...RING, RETAINING...RING, RETAINING
-
250423-998 SCREW, SHOULDERSCREW, SHOULDER
-
267506-033 BRACE, A-ARM - BLACKBRACE, A-ARM - BLACK
-
274406-714 GUARD, BOOT - RIGHT - BLACKGUARD, BOOT - RIGHT - BLACK
-
274406-715 GUARD, BOOT - LEFT - BLACKGUARD, BOOT - LEFT - BLACK
-
281423-109 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
