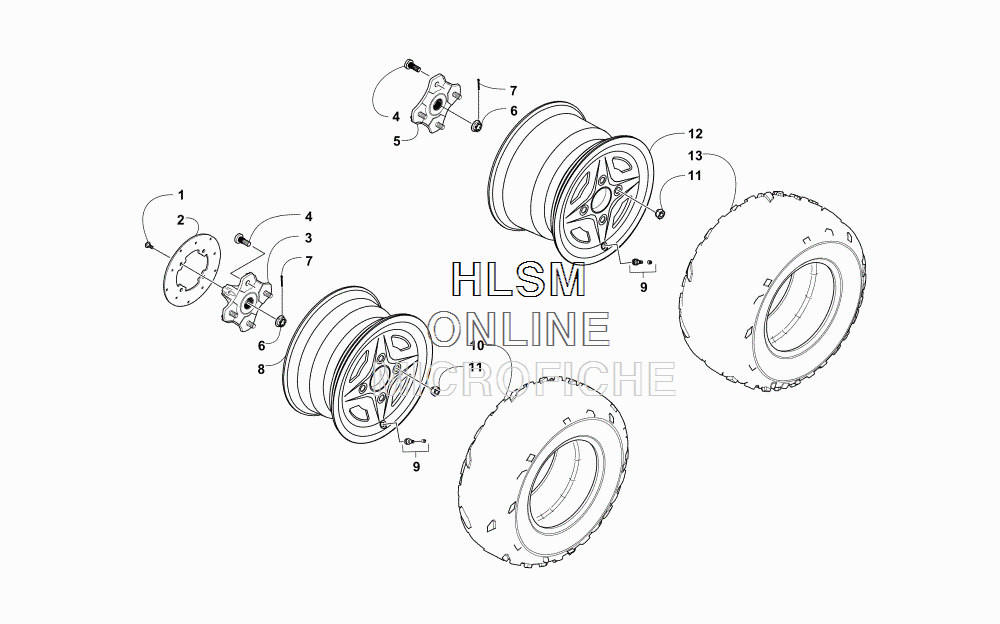

WHEEL AND TIRE ASSEMBLY для Arctic Cat XR 550 GREEN [A2015XAO4EUSG] - 2015 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-808 KIT, DISC BRAKEKIT, DISC BRAKE
-
31502-462 HUB, WHEEL (BOTH FRONT & REAR RIGHT) (INC. FOUR NO. 4)HUB, WHEEL (BOTH FRONT & REAR RIGHT) (INC. FOUR NO. 4)
-
40402-974 ...STUD...STUD
-
51502-464 HUB, WHEEL (REAR LEFT) (INC. FOUR NO. 4)HUB, WHEEL (REAR LEFT) (INC. FOUR NO. 4)
-
60423-607 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
82402-146 WHEEL, FRONT - BLACKWHEEL, FRONT - BLACK
-
90402-064 STEM, VALVE - W/CAPSTEM, VALVE - W/CAP
-
102402-250 TIRE - FRONTTIRE - FRONT
-
110423-408 NUT, LUGNUT, LUG
-
122402-144 WHEEL, REAR - BLACKWHEEL, REAR - BLACK
-
132402-251 TIRE - REARTIRE - REAR
