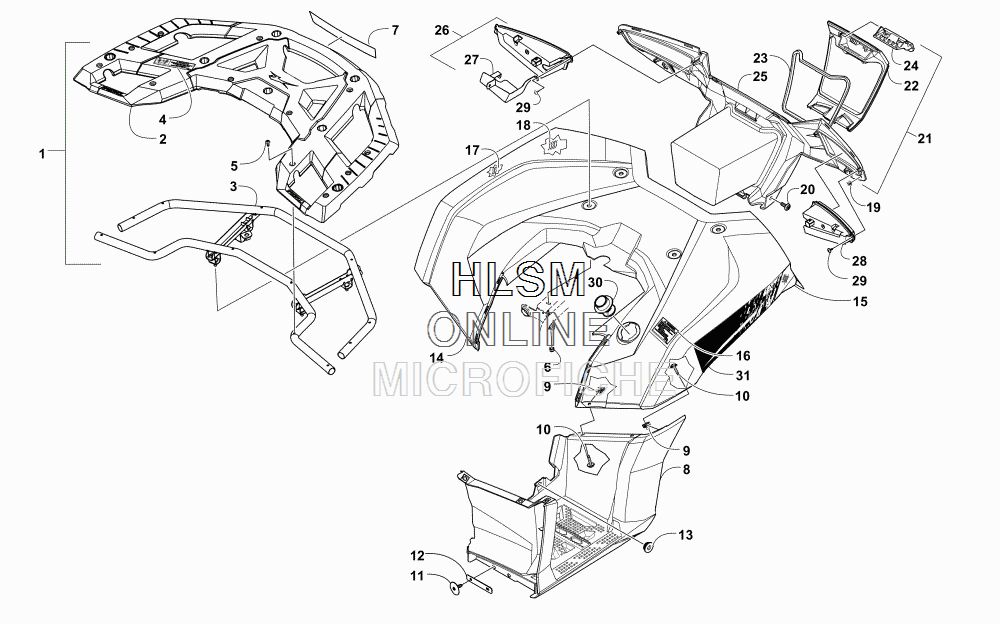

REAR RACK- BODY PANEL- FOOTWELL- AND TAILLIGHT ASSEMBLIES для Arctic Cat XR 550 GREEN [A2015XAO4EUSG] - 2015 года выпуска`
-
№АртикулНазвание
-
15506-841 REAR RACK - ASSEMBLY (INC. 2-5)REAR RACK - ASSEMBLY (INC. 2-5)
-
25506-672 ...RACK W/OVERMOLD...RACK W/OVERMOLD
-
37506-025 ...REAR RACK...REAR RACK
-
44411-680 ...DECAL, WARNING - REAR RACK...DECAL, WARNING - REAR RACK
-
51423-301 ...SCREW, MACHINE...SCREW, MACHINE
-
68432-802 NUT, LOCKNUT, LOCK
-
74411-879 DECAL - "ARCTIC CAT"DECAL - "ARCTIC CAT"
-
85506-746 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
85506-747 FOOTWELL - LEFTFOOTWELL - LEFT
-
90423-577 CLIP, U-NUTCLIP, U-NUT
-
100423-609 SCREW, MACHINESCREW, MACHINE
-
111423-198 SCREW, MACHINESCREW, MACHINE
-
127506-164 PLATE, FOOTWELLPLATE, FOOTWELL
-
130423-678 GROMMETGROMMET
-
145506-783 PANEL, FENDER - ASSEMBLY - GREEN (INC. 15-18)PANEL, FENDER - ASSEMBLY - GREEN (INC. 15-18)
-
154411-816 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
154411-817 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
164411-676 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
170412-848 ...FOIL, PROTECTIVE - BOTTOM...FOIL, PROTECTIVE - BOTTOM
-
180412-849 ...FOIL, PROTECTIVE - TOP...FOIL, PROTECTIVE - TOP
-
191423-321 CLIP, RETAININGCLIP, RETAINING
-
208477-816 SCREW, MACHINESCREW, MACHINE
-
215506-593 BOX, REAR STORAGE - ASSEMBLY (INC. 22-25)BOX, REAR STORAGE - ASSEMBLY (INC. 22-25)
-
224406-583 ...DOOR, STORAGE BOX - REAR...DOOR, STORAGE BOX - REAR
-
234406-839 ...SEAL...SEAL
-
244406-316 ...LATCH...LATCH
-
254406-581 ...FASCIA, REAR...FASCIA, REAR
-
260509-110 TAILLIGHT ASSEMBLY W/SHIELD - RIGHT (INC. 27)TAILLIGHT ASSEMBLY W/SHIELD - RIGHT (INC. 27)
-
270412-844 ...SHIELD, TAILLIGHT - RIGHT...SHIELD, TAILLIGHT - RIGHT
-
280509-107 TAILLIGHT - LEFTTAILLIGHT - LEFT
-
291423-284 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
301470-074 NECK, FILLNECK, FILL
-
314411-622 DECAL, FENDER SIDE - RIGHTDECAL, FENDER SIDE - RIGHT
-
314411-623 DECAL, FENDER SIDE - LEFTDECAL, FENDER SIDE - LEFT
