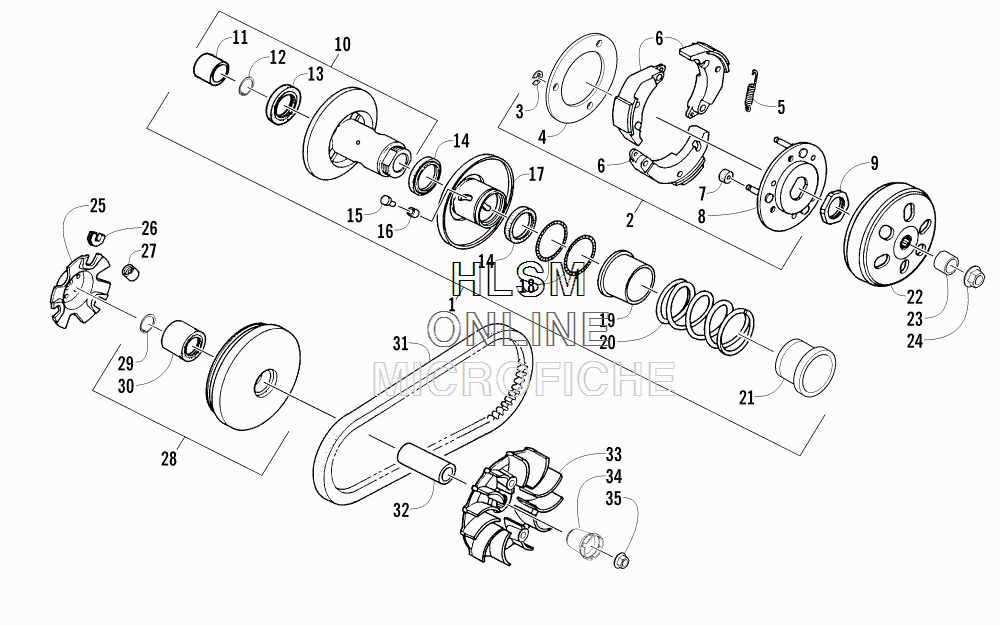

CLUTCH ASSEMBLY для Arctic Cat 300 2X4 UTILITY GREEN [A2016KUF2BUSZ] - 2016 года выпуска
-
№АртикулНазвание
-
13303-781 PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)PULLEY, DRIVEN - ASSEMBLY (INC. 2-21)
-
23303-775 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 3-8)
-
33304-054 ......RING, RETAINING......RING, RETAINING
-
43306-188 ......PLATE, CLUTCH......PLATE, CLUTCH
-
53303-778 ......SPRING......SPRING
-
63303-779 ......WEIGHT, CLUTCH......WEIGHT, CLUTCH
-
73303-780 ......ROLLER......ROLLER
-
83303-776 ......PLATE, CLUTCH......PLATE, CLUTCH
-
93304-025 ...NUT, SPECIAL - 28 MM...NUT, SPECIAL - 28 MM
-
103303-783 ...FACE, DRIVEN - FIXED (INC. 11-13)...FACE, DRIVEN - FIXED (INC. 11-13)
-
113304-072 ......BEARING......BEARING
-
123304-149 ......RING, RETAINING......RING, RETAINING
-
133304-070 ......BEARING......BEARING
-
143304-082 ...SEAL...SEAL
-
153303-786 ...PIN, GUIDE...PIN, GUIDE
-
163303-787 ...GUIDE, ROLLER...GUIDE, ROLLER
-
173303-785 ...FACE, DRIVEN - MOVABLE...FACE, DRIVEN - MOVABLE
-
183304-107 ...O-RING...O-RING
-
193303-789 ...SLEEVE, SPRING...SLEEVE, SPRING
-
203303-788 ...SPRING...SPRING
-
213303-790 ...SLEEVE, SPRING...SLEEVE, SPRING
-
223303-767 CLUTCH, OUTERCLUTCH, OUTER
-
233303-638 SLEEVESLEEVE
-
243304-023 NUTNUT
-
253303-773 PLATE, RAMPPLATE, RAMP
-
263303-774 SLIDESLIDE
-
273303-772 ROLLERROLLER
-
283303-770 FACE, DRIVE - MOVABLE (INC. 29-30)FACE, DRIVE - MOVABLE (INC. 29-30)
-
293304-160 ...RING, RETAINING...RING, RETAINING
-
303303-771 ...SLEEVE...SLEEVE
-
313303-782 BELT, DRIVEBELT, DRIVE
-
323303-769 SLEEVESLEEVE
-
333303-768 FACE, DRIVE - FIXEDFACE, DRIVE - FIXED
-
343303-828 RATCHET, RECOILRATCHET, RECOIL
-
353304-024 NUTNUT
