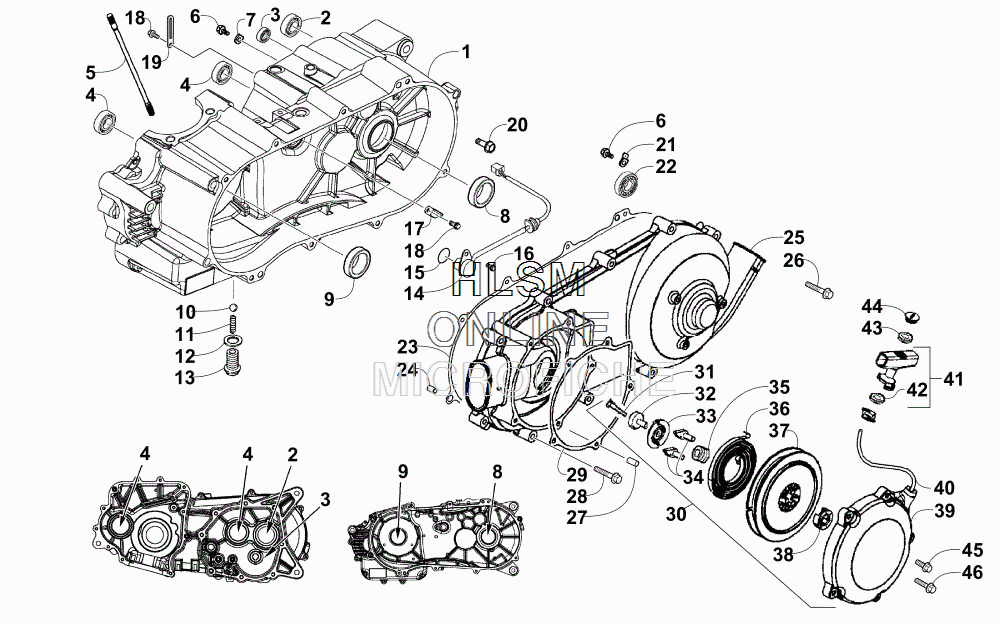

LEFT CRANKCASE- COVER- AND RECOIL ASSEMBLY для Arctic Cat 300 2X4 UTILITY GREEN [A2016KUF2BUSZ] - 2016 года выпуска
-
№АртикулНазвание
-
13303-629 CRANKCASECRANKCASE
-
23304-067 BEARINGBEARING
-
33304-074 BEARING, NEEDLEBEARING, NEEDLE
-
43304-195 BEARINGBEARING
-
53305-606 BOLT, STUDBOLT, STUD
-
63304-005 BOLT SPECIAL 6X10 96600-08010 N.C.BOLT SPECIAL 6X10 96600-08010 N.C.
-
73304-039 RETAINER, BEARINGRETAINER, BEARING
-
83304-091 SEAL, OILSEAL, OIL
-
93304-079 SEAL, OILSEAL, OIL
-
103304-205 BEARING, BALLBEARING, BALL
-
113304-063 SPRING, SEATSPRING, SEAT
-
123304-021 WASHERWASHER
-
133304-109 SCREW, SEATSCREW, SEAT
-
143303-856 SWITCH, GEAR POSITION (INC. 15)SWITCH, GEAR POSITION (INC. 15)
-
153305-776 ...O-RING...O-RING
-
163304-187 BOLT FLANGE 6X10BOLT FLANGE 6X10
-
173303-843 RETAINER, WIRERETAINER, WIRE
-
183303-381 BOLT FLANGE SH 6X12BOLT FLANGE SH 6X12
-
193304-158 CLAMP, WIRECLAMP, WIRE
-
203303-365 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
213304-040 RETAINER, BEARINGRETAINER, BEARING
-
223304-073 BEARING BALL, RADIALBEARING BALL, RADIAL
-
233303-642 GASKET, COVERGASKET, COVER
-
243303-342 PIN, DOWELPIN, DOWEL
-
253303-632 COVER, CRANKCASECOVER, CRANKCASE
-
263304-003 BOLT FLANGE SHF 6X28BOLT FLANGE SHF 6X28
-
273303-341 PIN, DOWELPIN, DOWEL
-
283304-004 BOLT FLANGE SHF 6X40BOLT FLANGE SHF 6X40
-
293304-101 GASKET, COVERGASKET, COVER
-
303305-459 RECOIL, STARTING (INC. 31-44)RECOIL, STARTING (INC. 31-44)
-
313304-113 ...SCREW, MACHINE...SCREW, MACHINE
-
323303-651 ...INSERT...INSERT
-
333303-649 ...GUIDE, RATCHET...GUIDE, RATCHET
-
343303-646 ...RATCHET...RATCHET
-
353303-647 ...SPRING...SPRING
-
363303-645 ...SPRING, SPIRAL...SPRING, SPIRAL
-
373305-346 ...REEL, STARTER...REEL, STARTER
-
383303-648 ...SPACER...SPACER
-
393303-639 ...COVER, RECOIL (INC. 40)...COVER, RECOIL (INC. 40)
-
403303-650 ......ROPE, STARTER......ROPE, STARTER
-
413303-652 ...HANDLE, RECOIL (INC. 42)...HANDLE, RECOIL (INC. 42)
-
423304-103 ......O-RING......O-RING
-
433304-137 ...WASHER...WASHER
-
443305-269 ...CAP, RECOIL HANDLE...CAP, RECOIL HANDLE
-
453303-384 BOLT, FLANGEBOLT, FLANGE
-
463305-945 BOLT FLANGE SH 6X32BOLT FLANGE SH 6X32
