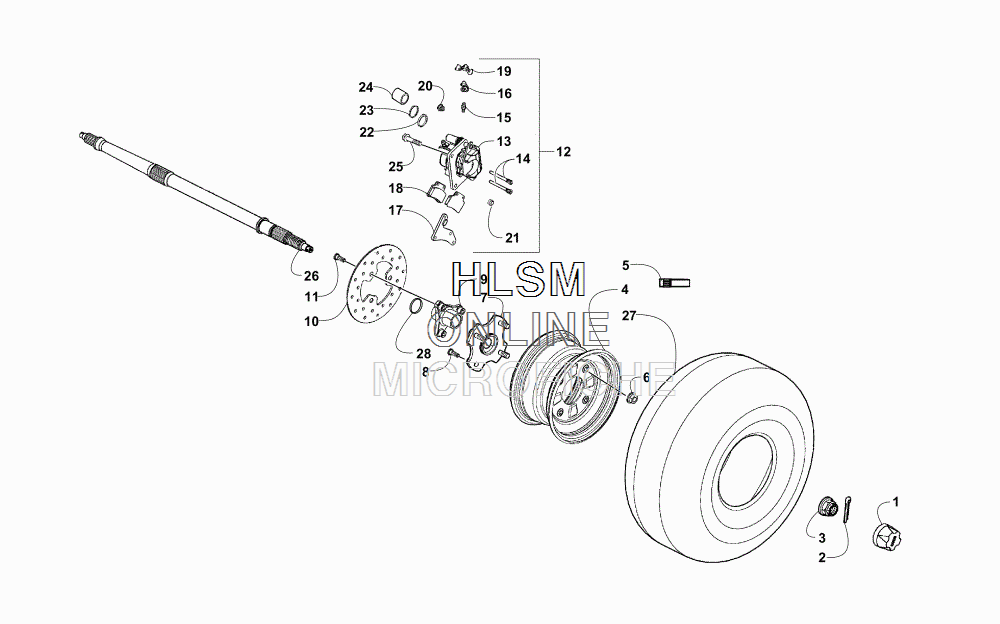

REAR WHEELS- AXLE- AND BRAKE ASSEMBLY для Arctic Cat 300 2X4 UTILITY GREEN [A2016KUF2BUSZ] - 2016 года выпуска
-
№АртикулНазвание
-
13303-931 CAP, WHEELCAP, WHEEL
-
23303-340 PIN, COTTERPIN, COTTER
-
33307-227 NUTNUT
-
43306-886 WHEELWHEEL
-
53304-562 STEM, VALVESTEM, VALVE
-
63304-028 NUT, LUGNUT, LUG
-
73306-749 HUB, WHEEL - REAR - RIGHT (INC. 8)HUB, WHEEL - REAR - RIGHT (INC. 8)
-
73304-296 HUB, WHEEL - REAR - LEFT (INC. 8)HUB, WHEEL - REAR - LEFT (INC. 8)
-
83304-014 ...STUD...STUD
-
93303-893 HUB, BRAKE DISCHUB, BRAKE DISC
-
103303-913 DISC, BRAKEDISC, BRAKE
-
113304-015 SCREW, SHOULDERSCREW, SHOULDER
-
123306-205 CALIPER ASSEMBLY (FOOT BRAKE) (INC. 13-25)CALIPER ASSEMBLY (FOOT BRAKE) (INC. 13-25)
-
123306-206 CALIPER ASSEMBLY (HAND BRAKE) (INC. 13-25)CALIPER ASSEMBLY (HAND BRAKE) (INC. 13-25)
-
143304-326 ...PIN...PIN
-
153304-302 ...VALVE, BLEED...VALVE, BLEED
-
163304-303 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
173303-911 ...BRACKET, MOUNTING...BRACKET, MOUNTING
-
183303-908 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
193304-315 ...SPRING...SPRING
-
203304-322 ...BOOT...BOOT
-
213304-329 ...BUSHING...BUSHING
-
223305-380 ...SEAL, PISTON (FOOT BRAKE) (FOOT BRAKE)...SEAL, PISTON (FOOT BRAKE) (FOOT BRAKE)
-
223306-191 ...SEAL, PISTON - INNER (HAND BRAKE)...SEAL, PISTON - INNER (HAND BRAKE)
-
233305-377 ...SEAL, DUST (FOOT BRAKE) (FOOT BRAKE)...SEAL, DUST (FOOT BRAKE) (FOOT BRAKE)
-
233303-910 ...SEAL, PISTON - OUTER (HAND BRAKE)...SEAL, PISTON - OUTER (HAND BRAKE)
-
243304-314 ...PISTON (FOOT BRAKE) (FOOT BRAKE)...PISTON (FOOT BRAKE) (FOOT BRAKE)
-
243303-909 ...PISTON (HAND BRAKE)...PISTON (HAND BRAKE)
-
253304-565 ...BOLT, FLANGE - 8 X 20...BOLT, FLANGE - 8 X 20
-
263307-229 AXLE, REARAXLE, REAR
-
273306-763 TIRE, REAR - ASSEMBLYTIRE, REAR - ASSEMBLY
-
283307-226 O-RINGO-RING
