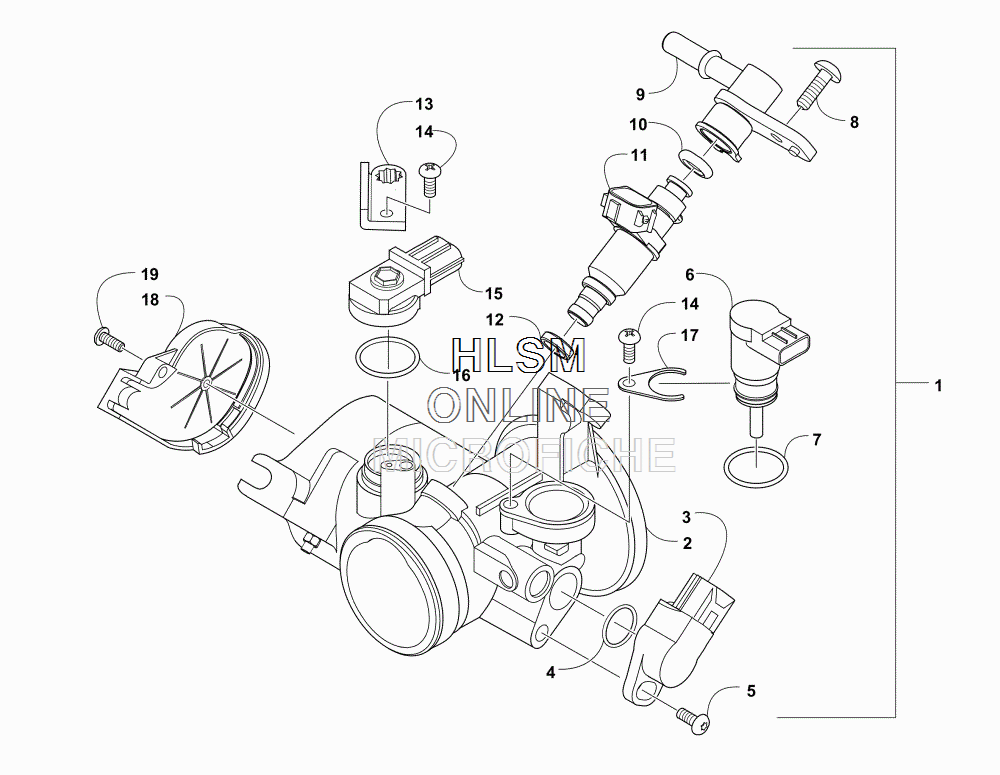

THROTTLE BODY ASSEMBLY для Arctic Cat PROWLER 700 XT EPS GREEN INTERNATIONAL [U2016R2T1POSX] - 2016 года выпуска
-
№АртикулНазвание
-
10470-753 THROTTLE - ASSEMBLY (INC. 2-19)THROTTLE - ASSEMBLY (INC. 2-19)
-
30430-072 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
45507-234 O-RING, THROTTLE POSITION SENSORO-RING, THROTTLE POSITION SENSOR
-
55507-231 SCREW, MACHINESCREW, MACHINE
-
60430-074 VALVE, ISCVALVE, ISC
-
75507-233 O-RING, ISC VALVEO-RING, ISC VALVE
-
85507-238 SCREW, MACHINESCREW, MACHINE
-
90470-687 RAIL, FUELRAIL, FUEL
-
100470-767 O-RING, FUEL INJECTORO-RING, FUEL INJECTOR
-
110470-762 INJECTOR, FUELINJECTOR, FUEL
-
120470-768 RING, SEAL - FUEL INJECTORRING, SEAL - FUEL INJECTOR
-
135507-227 BRACKET, MAP SENSORBRACKET, MAP SENSOR
-
145507-117 SCREWSCREW
-
150430-073 SENSOR, MAPSENSOR, MAP
-
165507-232 O-RING, MAP SENSORO-RING, MAP SENSOR
-
175507-229 PLATE, ISC VALVEPLATE, ISC VALVE
-
185507-223 COVERCOVER
-
195507-037 SCREWSCREW
