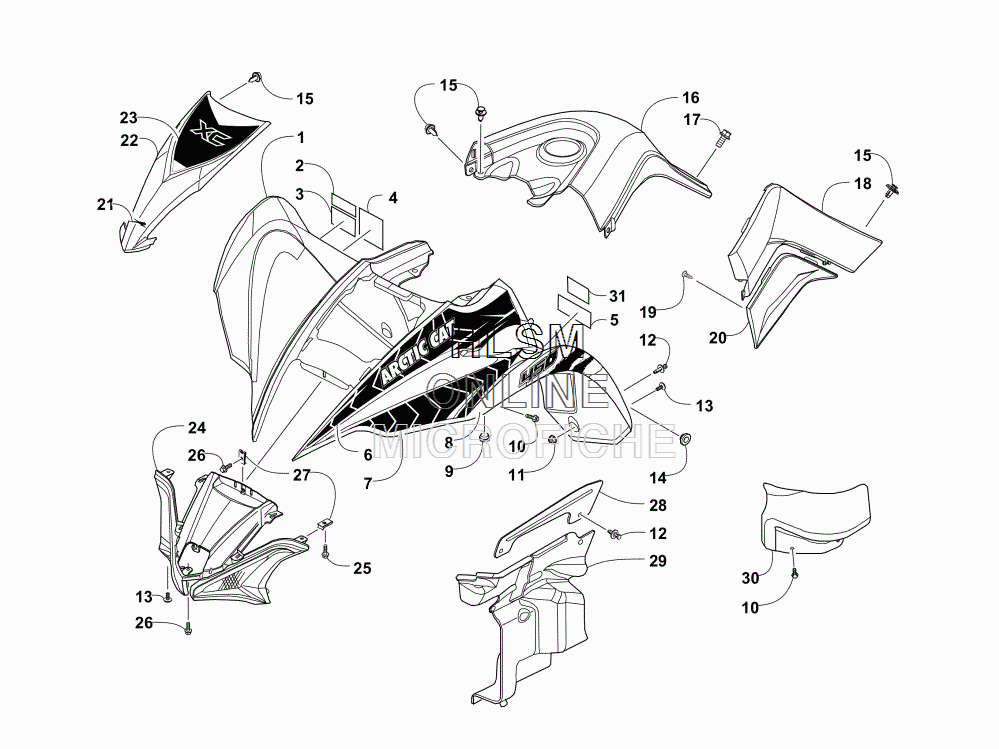

FRONT BODY ASSEMBLY для Arctic Cat XC 450 EFI [A2016KCK4CUST] - 2016 года выпуска
-
№АртикулНазвание
-
13307-245 PANEL, BODY - (ORANGE) (INC. 2-5)PANEL, BODY - (ORANGE) (INC. 2-5)
-
21411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
31411-804 ...DECAL, WARNING - AGE (16)...DECAL, WARNING - AGE (16)
-
41411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
50411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
65411-328 DECAL, FENDER - "ARCTIC CAT" - RIGHTDECAL, FENDER - "ARCTIC CAT" - RIGHT
-
65411-329 DECAL, FENDER - "ARCTIC CAT" - LEFTDECAL, FENDER - "ARCTIC CAT" - LEFT
-
75411-330 DECAL, FENDER - FRONT - RIGHTDECAL, FENDER - FRONT - RIGHT
-
75411-331 DECAL, FENDER - FRONT - LEFTDECAL, FENDER - FRONT - LEFT
-
85411-332 DECAL, FENDER - "XC" - RIGHTDECAL, FENDER - "XC" - RIGHT
-
85411-333 DECAL, FENDER - "XC" - LEFTDECAL, FENDER - "XC" - LEFT
-
93306-458 BUMPER, SEATBUMPER, SEAT
-
103304-587 BOLT WASHER 6*16BOLT WASHER 6*16
-
113304-431 NUT, LOCKNUT, LOCK
-
123305-448 CLIP, RETAININGCLIP, RETAINING
-
133304-404 BOLT SPECIAL 6*16BOLT SPECIAL 6*16
-
140423-678 GROMMETGROMMET
-
153303-592 CLIP MUDGUARDCLIP MUDGUARD
-
163307-224 COVER, GAS TANK - (WHITE)COVER, GAS TANK - (WHITE)
-
173304-652 BOLT WASHER 6*12BOLT WASHER 6*12
-
183306-570 PANEL, FENDER - UPPER RIGHTPANEL, FENDER - UPPER RIGHT
-
183306-571 PANEL, FENDER - UPPER LEFTPANEL, FENDER - UPPER LEFT
-
193304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
203306-744 PANEL, FENDER - LOWER RIGHTPANEL, FENDER - LOWER RIGHT
-
203306-745 PANEL, FENDER - LOWER LEFTPANEL, FENDER - LOWER LEFT
-
214411-479 DECAL, AIRCATDECAL, AIRCAT
-
223307-246 PANEL, ACCESS - (WHITE)PANEL, ACCESS - (WHITE)
-
235411-321 DECAL, CRESTDECAL, CREST
-
243306-539 FASCIA, UPPERFASCIA, UPPER
-
253304-029 BOLT WASHER 5*16BOLT WASHER 5*16
-
263303-313 BOLT WASHER 6*16BOLT WASHER 6*16
-
273304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
283306-542 PANEL, SPLASH - UPPERPANEL, SPLASH - UPPER
-
293306-284 PANEL, SPLASH - REAR RIGHTPANEL, SPLASH - REAR RIGHT
-
293306-285 PANEL, SPLASH - REAR LEFTPANEL, SPLASH - REAR LEFT
-
303313-844 PROTECTOR, HOSEPROTECTOR, HOSE
-
311411-109 DECAL, WARNING - REVERSEDECAL, WARNING - REVERSE
