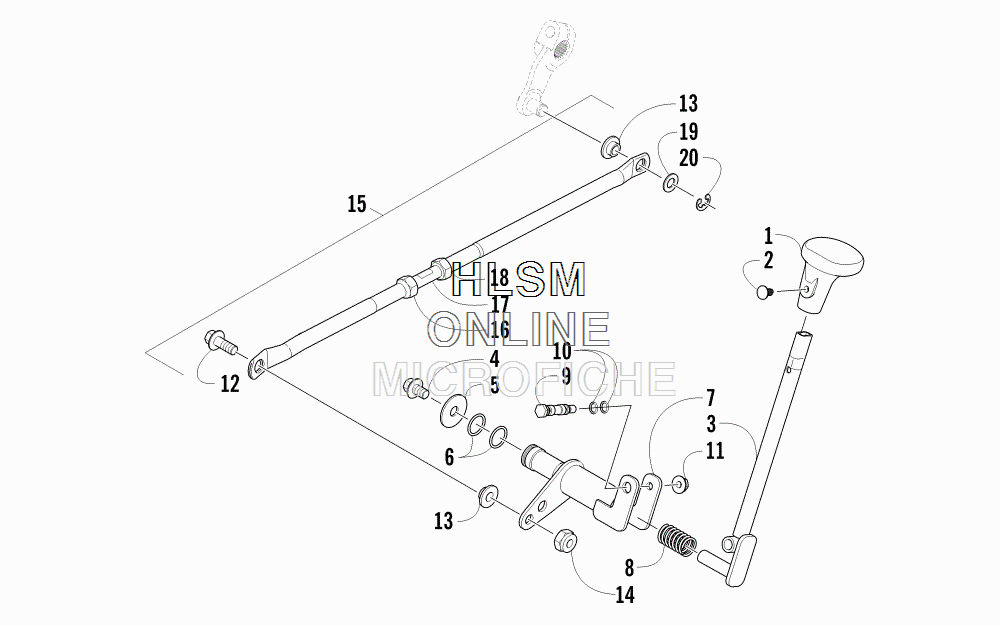

SHIFT LEVER ASSEMBLY для Arctic Cat XC 450 EFI [A2016KCK4CUST] - 2016 года выпуска
-
№АртикулНазвание
-
10402-843 KNOB, SHIFTKNOB, SHIFT
-
20423-345 CLIP, PUSHCLIP, PUSH
-
33306-497 LEVER, SHIFTLEVER, SHIFT
-
43304-544 BOLT FLANGE 8*12BOLT FLANGE 8*12
-
50423-087 WASHER,5/16 X 1 1/8-1/16 -Z & YWASHER,5/16 X 1 1/8-1/16 -Z & Y
-
60423-299 O-RING - 016 (5/8 X 3/4 X 1/16)O-RING - 016 (5/8 X 3/4 X 1/16)
-
73306-317 ACTUATOR, SHIFTACTUATOR, SHIFT
-
80402-678 SPRING, SHIFT LEVERSPRING, SHIFT LEVER
-
90402-675 AXLE, PIVOTAXLE, PIVOT
-
100423-182 O-RINGO-RING
-
113304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
-
123313-821 BOLT FLANGE 6MMBOLT FLANGE 6MM
-
133323-037 BUSHINGBUSHING
-
143305-396 NUT FLANGE 6MMNUT FLANGE 6MM
-
153306-319 LINKAGE, SHIFT - ASSEMBLY (INC. 16-18)LINKAGE, SHIFT - ASSEMBLY (INC. 16-18)
-
163303-327 ...NUT, HEX - RIGHT-HAND THREAD...NUT, HEX - RIGHT-HAND THREAD
-
173313-278 ...ADJUSTER, SHIFT LINKAGE...ADJUSTER, SHIFT LINKAGE
-
183313-822 ...NUT, HEX - LEFT-HAND THREAD...NUT, HEX - LEFT-HAND THREAD
-
198050-252 WASHERWASHER
-
203313-766 E-RINGE-RING
