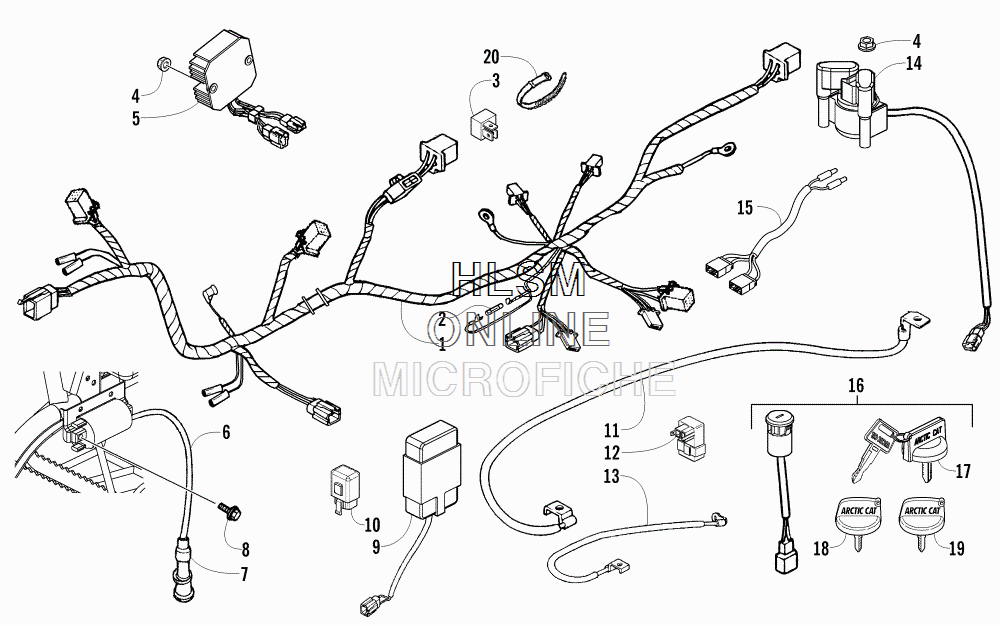

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 150 UTILITY RED - 2017 года выпуска
-
№АртикулНазвание
-
13305-748 HARNESS, MAIN (INC. 2-3)HARNESS, MAIN (INC. 2-3)
-
23305-233 ...FUSE - 20 AMP...FUSE - 20 AMP
-
33303-837 ...DIODE, NEUTRAL...DIODE, NEUTRAL
-
43304-654 NUT, LOCKNUT, LOCK
-
53303-836 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
63305-222 COIL, IGNITION (INC. 7)COIL, IGNITION (INC. 7)
-
73305-223 ...CAP, NOISE SUPPRESSION...CAP, NOISE SUPPRESSION
-
83303-252 SCREW, MACHINESCREW, MACHINE
-
93305-727 CDI UNITCDI UNIT
-
103306-858 RELAY, START-IN-GEARRELAY, START-IN-GEAR
-
113305-225 CABLE, BATTERYCABLE, BATTERY
-
123304-523 RELAY, LIGHTING CONTROLRELAY, LIGHTING CONTROL
-
133304-969 HARNESS, GROUNDHARNESS, GROUND
-
143303-857 RELAY, STARTERRELAY, STARTER
-
153303-134 SUB CORDSUB CORD
-
163305-756 SWITCH, IGNITION - ASSEMBLY (INC. 17-19)SWITCH, IGNITION - ASSEMBLY (INC. 17-19)
-
173304-522 ...COVER, KEY...COVER, KEY
-
183307-104 ...KEY, IGNITION - RIGHT-SIDE CUT...KEY, IGNITION - RIGHT-SIDE CUT
-
193304-521 ...KEY, IGNITION - LEFT-SIDE CUT...KEY, IGNITION - LEFT-SIDE CUT
-
203303-289 CABLE TIECABLE TIE
