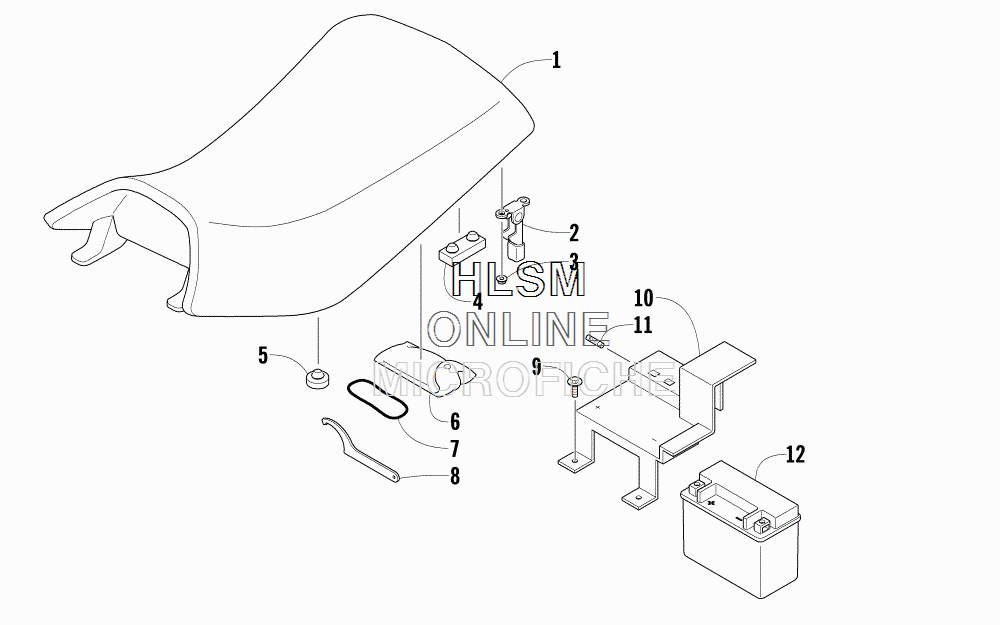

SEAT- BATTERY- AND TOOL KIT ASSEMBLIES для Arctic Cat 150 UTILITY RED - 2017 года выпуска
-
№АртикулНазвание
-
13305-729 SEAT ASSEMBLY (INC. 2-3)SEAT ASSEMBLY (INC. 2-3)
-
23304-392 ...LATCH, SEAT...LATCH, SEAT
-
33305-929 ...NUT...NUT
-
43306-458 BUMPER, SEATBUMPER, SEAT
-
53304-568 BUMPER, SEAT - FRONTBUMPER, SEAT - FRONT
-
63305-730 KIT, TOOLKIT, TOOL
-
73303-242 RETAINER, TOOL KITRETAINER, TOOL KIT
-
81441-797 WRENCH, SPANNER (OPTIONAL)WRENCH, SPANNER (OPTIONAL)
-
93304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
103305-157 COVER, BATTERY (INC. 11)COVER, BATTERY (INC. 11)
-
113305-233 ...FUSE - 20 AMP...FUSE - 20 AMP
-
123445-034 BATTERY ASSEMBLYBATTERY ASSEMBLY
