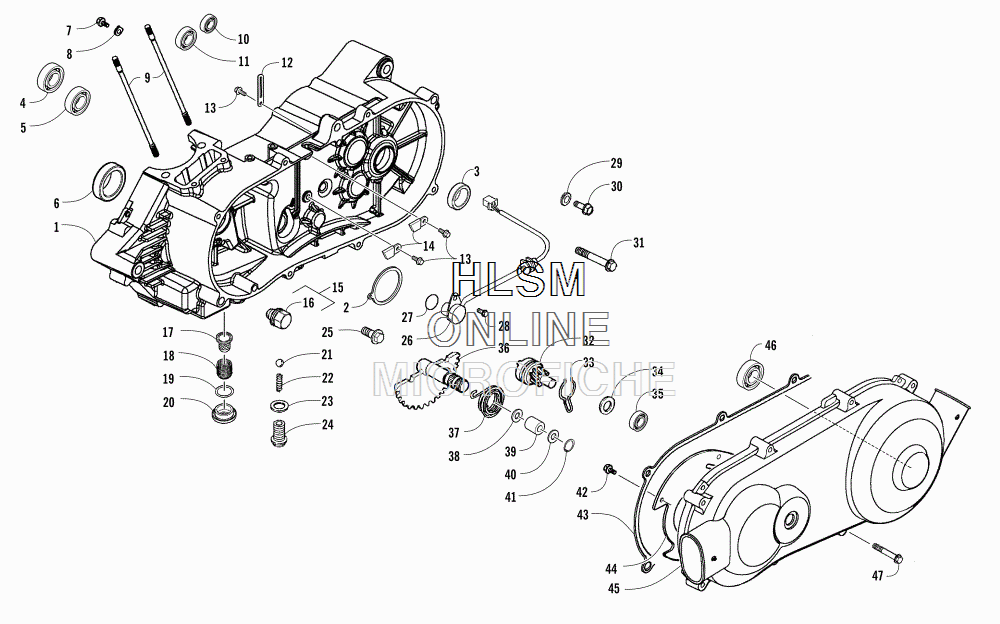

LEFT CRANKCASE AND COVER ASSEMBLY для Arctic Cat 150 UTILITY RED - 2017 года выпуска
-
№АртикулНазвание
-
13304-888 CRANKCASE - LEFT (INC. 2)CRANKCASE - LEFT (INC. 2)
-
23304-886 ...RETAINER...RETAINER
-
33303-297 SEAL, OILSEAL, OIL
-
43304-197 BEARINGBEARING
-
53304-905 BEARINGBEARING
-
63304-901 SEAL, OILSEAL, OIL
-
73304-005 BOLT SPECIAL 6X10 96600-08010 N.C.BOLT SPECIAL 6X10 96600-08010 N.C.
-
83304-039 RETAINER, BEARINGRETAINER, BEARING
-
93304-008 BOLT, STUDBOLT, STUD
-
103303-465 BEARINGBEARING
-
113304-907 BEARINGBEARING
-
123304-158 CLAMP, WIRECLAMP, WIRE
-
133303-381 BOLT FLANGE SH 6X12BOLT FLANGE SH 6X12
-
143303-843 RETAINER, WIRERETAINER, WIRE
-
153306-925 PLUG, DRAIN - W/WASHER (INC. 16)PLUG, DRAIN - W/WASHER (INC. 16)
-
173303-691 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
183303-692 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
193304-096 O-RINGO-RING
-
203303-021 CAPCAP
-
213304-205 BEARING, BALLBEARING, BALL
-
223304-063 SPRING, SEATSPRING, SEAT
-
233304-021 WASHERWASHER
-
243304-109 SCREW, SEATSCREW, SEAT
-
253307-213 BOLT FLANGE 10X12 (G)BOLT FLANGE 10X12 (G)
-
263304-895 SWITCH, GEAR POSITION (INC. 27)SWITCH, GEAR POSITION (INC. 27)
-
273305-776 ...O-RING...O-RING
-
283304-610 BOLT FLANGE 6X10BOLT FLANGE 6X10
-
293303-591 WASHERWASHER
-
303304-544 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
313307-053 BOLT, FLANGEBOLT, FLANGE
-
323304-893 GEAR, KICK START DRIVEGEAR, KICK START DRIVE
-
333303-117 SPRINGSPRING
-
343303-272 WASHER, THRUSTWASHER, THRUST
-
353304-900 BEARINGBEARING
-
363304-894 GEAR, KICK STARTGEAR, KICK START
-
373303-122 SPRINGSPRING
-
383303-121 WASHERWASHER
-
393303-120 SPACERSPACER
-
403305-777 WASHERWASHER
-
413303-345 RING, RETAININGRING, RETAINING
-
423303-391 BOLT SPECIAL 5X10BOLT SPECIAL 5X10
-
433304-892 GASKETGASKET
-
443304-891 PLATE, COVERPLATE, COVER
-
453304-890 COVER, CRANKCASECOVER, CRANKCASE
-
463304-897 BEARINGBEARING
-
473304-004 BOLT FLANGE SHF 6X40BOLT FLANGE SHF 6X40
