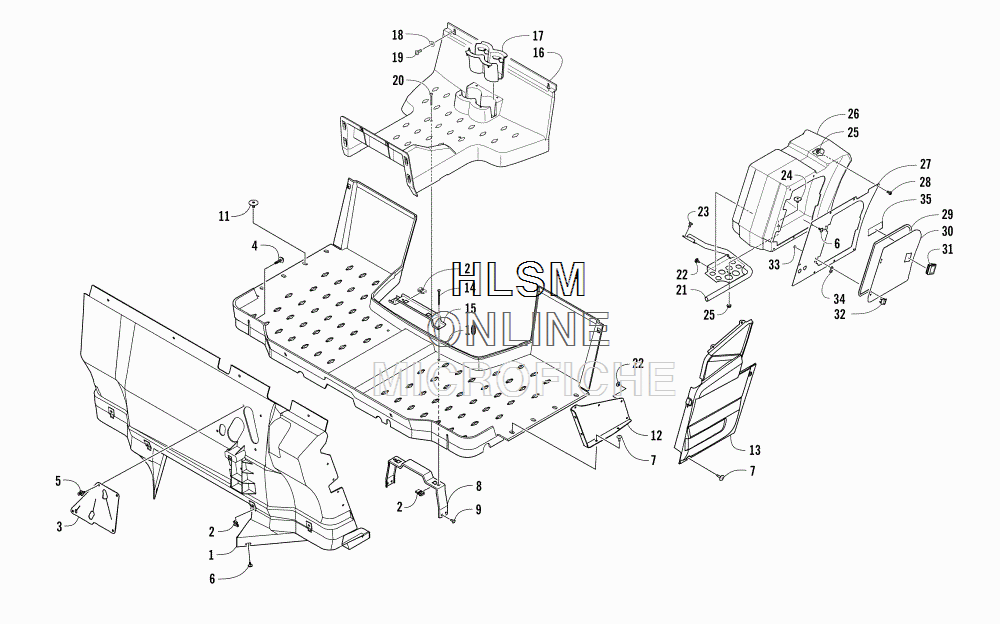

CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat HDX 500 XT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15406-434 PANEL, FENDER - INNER - ROUTEDPANEL, FENDER - INNER - ROUTED
-
20423-577 CLIP, U-NUTCLIP, U-NUT
-
30405-538 SEAL, STEERING COLUMNSEAL, STEERING COLUMN
-
40423-609 SCREW, MACHINESCREW, MACHINE
-
50623-362 CLIP, RETAININGCLIP, RETAINING
-
60623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71423-198 SCREW, MACHINESCREW, MACHINE
-
82516-313 BRACKET, SUPPORTBRACKET, SUPPORT
-
98476-616 SCREW, MACHINESCREW, MACHINE
-
105406-460 FLOORFLOOR
-
110423-545 SCREW, SHOULDERSCREW, SHOULDER
-
127506-100 BRACKET, KICK PANEL - RIGHTBRACKET, KICK PANEL - RIGHT
-
127506-101 BRACKET, KICK PANEL - LEFTBRACKET, KICK PANEL - LEFT
-
134406-612 PANEL, SIDE - RIGHTPANEL, SIDE - RIGHT
-
134406-613 PANEL, SIDE - LEFTPANEL, SIDE - LEFT
-
148468-670 SCREW, MACHINESCREW, MACHINE
-
152416-483 BRACKET, SUPPORT - CENTER FOOTRESTBRACKET, SUPPORT - CENTER FOOTREST
-
162416-412 FOOTREST, CENTERFOOTREST, CENTER
-
172416-109 INSERT, CUPHOLDERINSERT, CUPHOLDER
-
188450-133 WASHERWASHER
-
198476-630 SCREW, MACHINESCREW, MACHINE
-
208468-655 SCREW, MACHINESCREW, MACHINE
-
212516-854 BRACKET, SUPPORT - STORAGE BOX - RIGHTBRACKET, SUPPORT - STORAGE BOX - RIGHT
-
212516-855 BRACKET, SUPPORT - STORAGE BOX - LEFTBRACKET, SUPPORT - STORAGE BOX - LEFT
-
220623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
238476-816 SCREW, MACHINESCREW, MACHINE
-
241423-133 SCREW, SHOULDERSCREW, SHOULDER
-
258427-603 NUT, LOCKNUT, LOCK
-
267506-054 STORAGE BOX - RIGHT - ASSEMBLY (INC. 27-34 AND 6 NO. 25)STORAGE BOX - RIGHT - ASSEMBLY (INC. 27-34 AND 6 NO. 25)
-
267506-055 STORAGE BOX - LEFT - ASSEMBLY (INC. 27-34 AND 6 NO. 25)STORAGE BOX - LEFT - ASSEMBLY (INC. 27-34 AND 6 NO. 25)
-
277506-052 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
288477-616 ...SCREW, MACHINE...SCREW, MACHINE
-
292416-504 ...SEAL, ACCESS DOOR...SEAL, ACCESS DOOR
-
302516-853 ...DOOR, ACCESS...DOOR, ACCESS
-
311423-035 ...LATCH, ACCESS DOOR...LATCH, ACCESS DOOR
-
321423-037 ...HINGE (INC. 33)...HINGE (INC. 33)
-
331623-928 ......NUT, STAMPED......NUT, STAMPED
-
341423-036 ...SPACER...SPACER
-
354411-573 DECAL, CAUTION LOAD CAPACITY (15LBS)DECAL, CAUTION LOAD CAPACITY (15LBS)
