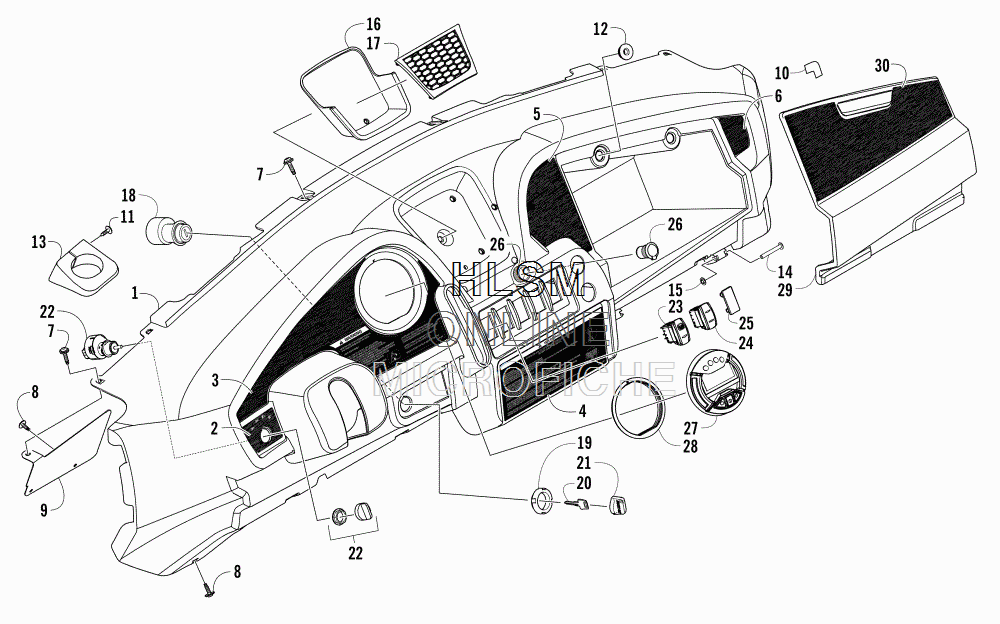

DASH ASSEMBLY для Arctic Cat HDX 500 XT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
17506-561 DASHBOARD W/WARNING DECALS (INC. 2-6)DASHBOARD W/WARNING DECALS (INC. 2-6)
-
24411-829 ...DECAL, HEADLIGHTS...DECAL, HEADLIGHTS
-
34411-417 ...DECAL, WARNING DASH...DECAL, WARNING DASH
-
45411-455 ...DECAL, WARNING DASH - CENTER...DECAL, WARNING DASH - CENTER
-
54411-121 ...DECAL, PASSENGER 1...DECAL, PASSENGER 1
-
64411-122 ...DECAL, PASSENGER 2...DECAL, PASSENGER 2
-
70423-609 SCREW, MACHINESCREW, MACHINE
-
81423-198 SCREW, MACHINESCREW, MACHINE
-
97506-118 PANEL, SPLASH - RIGHTPANEL, SPLASH - RIGHT
-
97506-119 PANEL, SPLASH - LEFTPANEL, SPLASH - LEFT
-
104406-995 PAD, GLOVE BOX DOORPAD, GLOVE BOX DOOR
-
110623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120423-678 GROMMETGROMMET
-
134406-616 COVER, DASH - RIGHTCOVER, DASH - RIGHT
-
134406-617 COVER, DASH - LEFTCOVER, DASH - LEFT
-
140623-772 RIVETRIVET
-
152623-001 NUT, PUSHNUT, PUSH
-
164406-622 PAD, DASHPAD, DASH
-
174406-623 NET, DASHNET, DASH
-
180609-936 SWITCH, IGNITION - ASSEMBLY (INC. 19-21)SWITCH, IGNITION - ASSEMBLY (INC. 19-21)
-
190430-050 ...NUT, RETAINING...NUT, RETAINING
-
200430-042 ...KEY, IGNITION - Y SERIES - LEFT-SIDE CUT...KEY, IGNITION - Y SERIES - LEFT-SIDE CUT
-
200430-043 ...KEY, IGNITION - Z SERIES - RIGHT-SIDE CUT...KEY, IGNITION - Z SERIES - RIGHT-SIDE CUT
-
210630-324 ...COVER, KEY...COVER, KEY
-
220409-187 SWITCH, LIGHTSWITCH, LIGHT
-
230409-074 SWITCH, 2WD/4WDSWITCH, 2WD/4WD
-
240409-071 SWITCH, REVERSE OVERRIDESWITCH, REVERSE OVERRIDE
-
250409-070 PLUG, SWITCH HOLEPLUG, SWITCH HOLE
-
260641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
270520-317 GAUGE, PS-ISO (INC. 28)GAUGE, PS-ISO (INC. 28)
-
280409-161 ...RING, MOUNT - GAUGE...RING, MOUNT - GAUGE
-
297506-086 BOX, GLOVE - W/DECAL (INC. 30)BOX, GLOVE - W/DECAL (INC. 30)
-
304411-120 ...DECAL, PASSENGER...DECAL, PASSENGER
