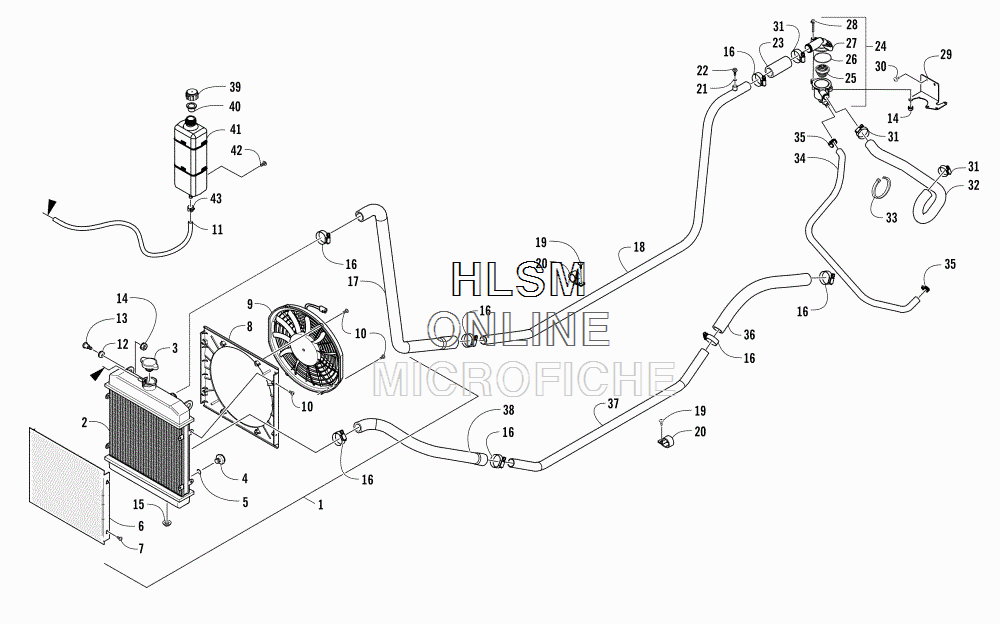

COOLING ASSEMBLY для Arctic Cat HDX 500 XT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10513-064 RADIATOR - ASSEMBLY (INC. 2-12)RADIATOR - ASSEMBLY (INC. 2-12)
-
20413-205 ...RADIATOR...RADIATOR
-
30413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
40413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
51602-213 ...O-RING...O-RING
-
60413-007 ...SCREEN, RADIATOR...SCREEN, RADIATOR
-
78475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
80413-203 ...SHROUD, FAN...SHROUD, FAN
-
90413-123 ...FAN, RADIATOR...FAN, RADIATOR
-
100623-378 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
110410-274 ...HOSE - 25 FT...HOSE - 25 FT
-
120423-030 ...GROMMET...GROMMET
-
130423-484 SCREW, SHOULDERSCREW, SHOULDER
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150423-028 BUSHING, STEMBUSHING, STEM
-
160423-496 CLAMP, HOSECLAMP, HOSE
-
170410-298 HOSE, COOLANT - UPPER RADIATORHOSE, COOLANT - UPPER RADIATOR
-
180513-054 TUBE, COOLANTTUBE, COOLANT
-
190623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
200423-594 CLAMP, ROUTINGCLAMP, ROUTING
-
210423-921 O-RINGO-RING
-
220423-984 SCREW, BLEEDSCREW, BLEED
-
230410-286 HOSE, COOLANT - PIPE/THERMOSTAT COVERHOSE, COOLANT - PIPE/THERMOSTAT COVER
-
243306-824 HOUSING, THERMOSTAT - ASSEMBLY (INC. 25-28)HOUSING, THERMOSTAT - ASSEMBLY (INC. 25-28)
-
250813-050 ...THERMOSTAT...THERMOSTAT
-
260830-205 ...O-RING...O-RING
-
270808-228 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
283303-384 ...BOLT, FLANGE...BOLT, FLANGE
-
290413-315 BRACKET, MOUNTINGBRACKET, MOUNTING
-
300623-361 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
310423-490 CLAMP, HOSECLAMP, HOSE
-
320410-281 HOSE, COOLANT - THERMOSTAT/CYLINDERHOSE, COOLANT - THERMOSTAT/CYLINDER
-
330623-751 TIE, CABLE - REUSABLETIE, CABLE - REUSABLE
-
340410-285 HOSE, COOLANT - THERMOSTAT/WATER PUMPHOSE, COOLANT - THERMOSTAT/WATER PUMP
-
350423-632 CLAMP, HOSECLAMP, HOSE
-
360410-280 HOSE, COOLANT - COOLANT TUBE/WATER PUMPHOSE, COOLANT - COOLANT TUBE/WATER PUMP
-
370410-277 TUBE, COOLANT - LOWERTUBE, COOLANT - LOWER
-
380410-297 HOSE, COOLANT - LOWER RADIATORHOSE, COOLANT - LOWER RADIATOR
-
390413-328 CAPCAP
-
400413-329 SPACERSPACER
-
410413-320 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
428475-512 SCREW, MACHINESCREW, MACHINE
-
430124-045 CLAMP, HOSECLAMP, HOSE
