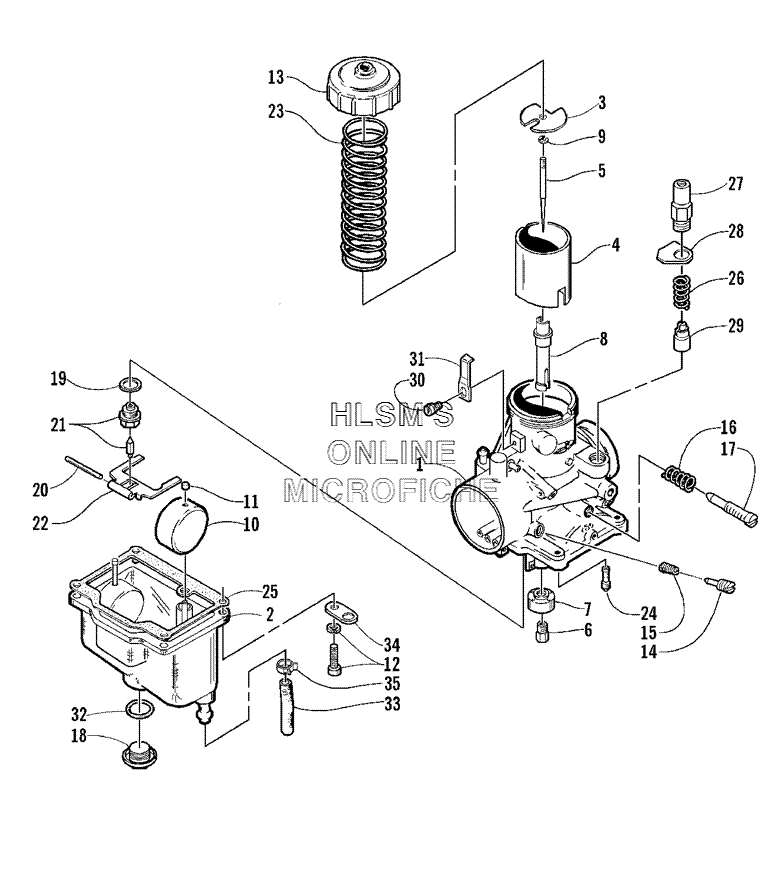

CARBURETOR VM34 для Arctic Cat Bearcat 440 I - 2000 года выпуска
-
№АртикулНазвание
-
-1670-080 CARBURETOR VM34CARBURETOR VM34
-
26505-631 FLOAT CHAMBERFLOAT CHAMBER
-
36505-001 PLATEPLATE
-
46505-439 PISTON VALVE CA 3.0PISTON VALVE CA 3.0
-
56505-563 JET NEEDLE 6DH7-4JET NEEDLE 6DH7-4
-
66505-076 MAIN JET 340**MAIN JET 340**
-
76505-620 RING, BAFFLERING, BAFFLE
-
86505-502 NEEDLE JET P-4 (166)NEEDLE JET P-4 (166)
-
96505-610 E-CLIPE-CLIP
-
106505-009 FLOATFLOAT
-
116505-010 CAPCAP
-
126505-014 SCREW W/WASHERSCREW W/WASHER
-
136505-306 TOP, MIXING BODYTOP, MIXING BODY
-
146505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
156505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
166505-021 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
176505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
186505-634 SCREW, DRAINSCREW, DRAIN
-
196505-024 WASHERWASHER
-
206505-153 PIN, FLOATPIN, FLOAT
-
216505-160 NEEDLE VALVE ASSEMBLY 1.5NEEDLE VALVE ASSEMBLY 1.5
-
226505-027 ARM, FLOATARM, FLOAT
-
236505-579 SPRING, PISTON VALVESPRING, PISTON VALVE
-
246505-073 PILOT JET 30PILOT JET 30
-
256505-030 GASKETGASKET
-
266505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
276505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
286505-187 WASHERWASHER
-
296505-035 STARTER PLUNGERSTARTER PLUNGER
-
306505-036 SCREW W/WASHERSCREW W/WASHER
-
316505-186 PLATEPLATE
-
326505-622 O-RINGO-RING
-
330610-279 HOSE, DRAINHOSE, DRAIN
-
346505-608 PLATEPLATE
-
350623-652 CLAMP, HOSECLAMP, HOSE
